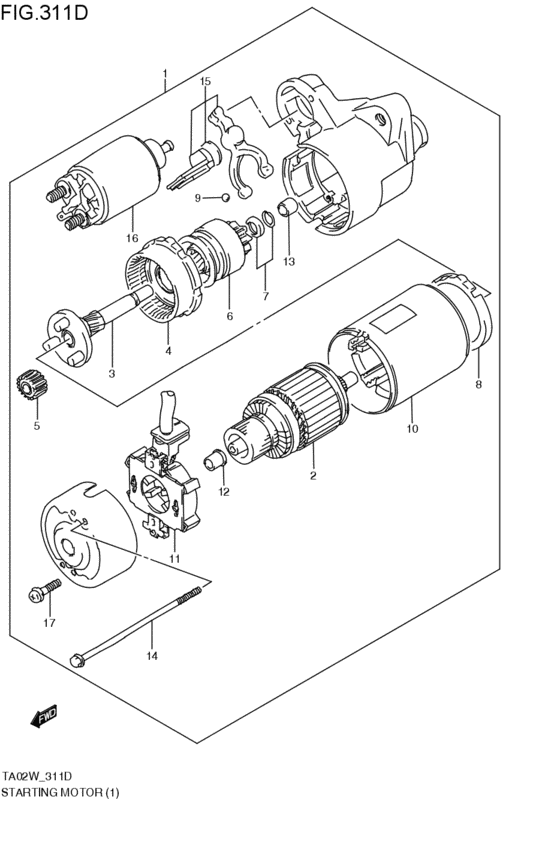

| 31100-77E11-000 |
MOTOR ASSY,STARTING |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31110-67D10-000 |
YOKE ASSY |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31136-79030-000 |
SCREW ASSY |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31152-79030-000 |
BEARING,FRONT |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31172-64B60-000 |
BEARING,REAR |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31173-60A22-000 |
HOLDER ASSY,BRUSH |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31175-79030-000 |
Screw Set |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31191-75F10-000 |
LEVER ASSY |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31193-86030-000 |
BALL |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31220-86032-000 |
SWITCH ASSY |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31261-67D10-000 |
Bolt |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31311-67D10-000 |
ARMATURE |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31313-86030-000 |
STOPPER SET |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31314-86030-000 |
Stopper Set |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31320-86030-000 |
CLUTCH,OVER RUNNING |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31341-67D10-000 |
SHAFT ASSY,GEAR |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31343-75F10-000 |
モータ,スターティング |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31343-80G00-000 |
INTERNAL GEAR |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31344-86030-000 |
GEAR,PLNTY |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31345-75F10-000 |
PACKING |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
| 31345-80G00-000 |
PACKING |
starting motor (G16A:MT; 1998-03-01~2000-03-01) |
