Search › Model › TCR20

TCR20

Toyota ESTIMA-EMINA-LUCIDA · 1992 · 6,800 parts · 403 categories

6,800 items

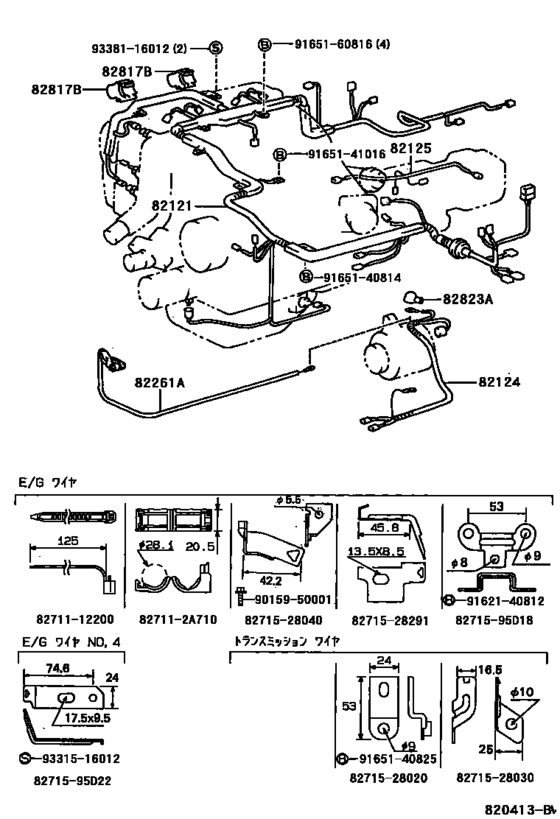

Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- )) 25

#	OEM	Part name
82121	82121-28372	Wire, Engine
82124	82124-28241	Wire, Engine, No.4
82124	82124-28261	Wire, Engine, No.4
82125	82125-28142	Wire, Transmission
82125	82125-28143	Wire, Transmission
82817	82817-28230	Protector, Wiring Harness, No.2
82823	82823-22050	Cap, Terminal, No.1
827112	82711-2A710	Wire, Fuse To Fuse(for Combustion Heater)
8271595	82715-95D18	Bracket,wiring Harness Clamp
8271595	82715-95D22	Bracket,wiring Harness Clamp
8271112200	82711-12200	Clamp (For Fuel Lid Lock Control Cable)
8271528020	82715-28020	Bracket,wiring Harness Clamp
8271528030	82715-28030	Bracket,wiring Harness Clamp
8271528040	82715-28040	Bracket,wiring Harness Clamp
8271528291	82715-28291	Bracket,wiring Harness Clamp
9015950001	90159-50001	New Genuine Part
9162140812	91621-40812	BOLT
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part
9165140825	91651-40825	Bolt(For Clutch Release Cylinder Setting)
9165141016	91651-41016	Bolt(For Transaxle & Engine Setting)
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9331516012	93315-16012	New Genuine Part
9338116012	93381-16012	Screw

OEM	Part name	Category
82121-28372	Wire, Engine	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
82124-28241	Wire, Engine, No.4	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
82124-28261	Wire, Engine, No.4	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
82125-28142	Wire, Transmission	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
82125-28143	Wire, Transmission	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
82711-12200	Clamp (For Fuel Lid Lock Control Cable)	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
82711-2A710	Wire, Fuse To Fuse(for Combustion Heater)	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
82715-28020	Bracket,wiring Harness Clamp	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
82715-28030	Bracket,wiring Harness Clamp	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
82715-28040	Bracket,wiring Harness Clamp	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
82715-28291	Bracket,wiring Harness Clamp	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
82715-95D18	Bracket,wiring Harness Clamp	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
82715-95D22	Bracket,wiring Harness Clamp	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
82817-28230	Protector, Wiring Harness, No.2	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
82823-22050	Cap, Terminal, No.1	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
90080-11228	New Genuine Part	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
90080-11396	Bolt	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
90159-50001	New Genuine Part	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
91621-40812	BOLT	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
91651-40814	BOLT	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
91651-40825	Bolt(For Clutch Release Cylinder Setting)	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
91651-41016	Bolt(For Transaxle & Engine Setting)	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
91651-60816	BOLT	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
93315-16012	New Genuine Part	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
93381-16012	Screw	Wiring & Clamp ([05.1990 - ] ENGINE WIRE (9005- ))
