Search › Model › TCR20

TCR20

Toyota ESTIMA-EMINA-LUCIDA · 1992 · 6,800 parts · 403 categories

← Back to categories

6,800 items

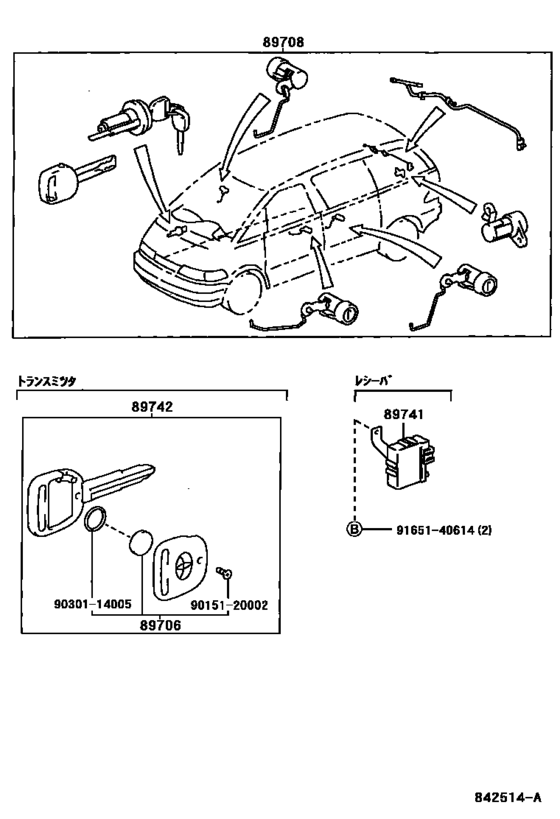

Wireless Door Lock ([08.1998 - ] (9808- )) 11

#	OEM	Part name
89706	89706-50010	Battery Set, Transmitter
89706	89745-48020	Battery, Transmitter
89706	90151-20002	SCREW
89706	90301-14005	New Genuine Part
89708	89708-28051	Cylinder Set, Wireless Door Lock
89708	89708-28070	Cylinder Set, Wireless Door Lock
89741	89741-28040	Receiver, Door Control
89741	89741-28090	Receiver, Door Control
89742	89742-28090	Transmitter, Door Control
89742	89742-28110	Transmitter, Door Control
9165140614	91651-40614	Bolt

OEM	Part name	Category
89706-50010	Battery Set, Transmitter	Wireless Door Lock ([08.1998 - ] (9808- ))
89708-28051	Cylinder Set, Wireless Door Lock	Wireless Door Lock ([08.1998 - ] (9808- ))
89708-28070	Cylinder Set, Wireless Door Lock	Wireless Door Lock ([08.1998 - ] (9808- ))
89741-28040	Receiver, Door Control	Wireless Door Lock ([08.1998 - ] (9808- ))
89741-28090	Receiver, Door Control	Wireless Door Lock ([08.1998 - ] (9808- ))
89742-28090	Transmitter, Door Control	Wireless Door Lock ([08.1998 - ] (9808- ))
89742-28110	Transmitter, Door Control	Wireless Door Lock ([08.1998 - ] (9808- ))
89745-48020	Battery, Transmitter	Wireless Door Lock ([08.1998 - ] (9808- ))
90151-20002	SCREW	Wireless Door Lock ([08.1998 - ] (9808- ))
90301-14005	New Genuine Part	Wireless Door Lock ([08.1998 - ] (9808- ))
91651-40614	Bolt	Wireless Door Lock ([08.1998 - ] (9808- ))

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 403
Collected: 2026-08-03
