TCR20

Toyota ESTIMA-EMINA-LUCIDA · 1992 · 6,800 parts · 403 categories
TCR20 ×

← Back to categories

6,800 items

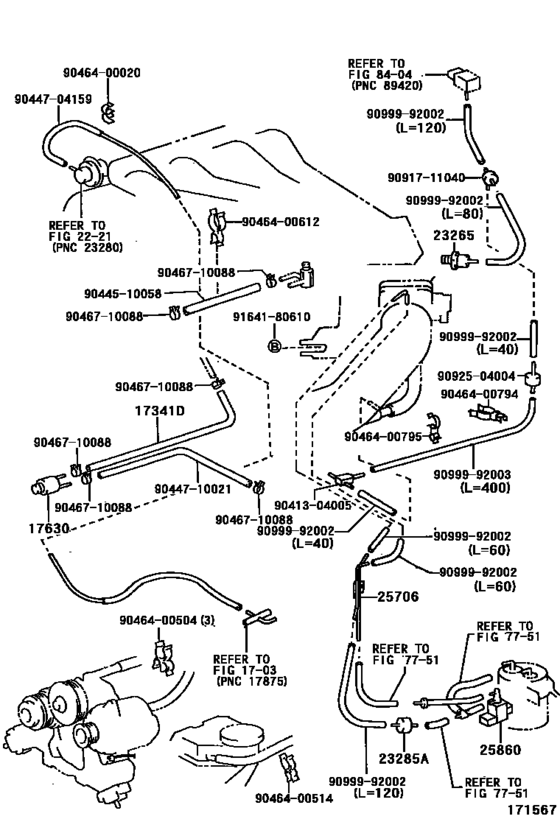

Vacuum Piping ([01.1998 - ] (9801- )2TZFE) 24
#OEMPart name
17341 90445-10055 Hose, No.1(For Idle-Up)
17630 17630-70020 Valve Assy, Air Control
17630 17630-16040 Valve Assy, Air Control
23265 90917-11037 Filter, Gas, No.1
23285 90917-10080 Filter, Gas, No.1
25706 25706-76050 Pipe Sub-Assy, Vacuum Transmitting, No.1
25860 25860-76010 Valve Assy, Vacuum Switching, No.1
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9044510058 90445-10058 Hose (For Four Wheel Drive Control)
9044704159 90447-04159 New Genuine Part
9044710021 90447-10021 New Genuine Part
9046400020 90464-00020 New Genuine Part
9046400504 90464-00504 New Genuine Part
9046400514 90464-00514 New Genuine Part
9046400612 90464-00612 New Genuine Part
9046400794 90464-00794 New Genuine Part
9046400795 90464-00795 New Genuine Part
9046710088 90467-10088 Clip, No.2(For Idle-Up Hose)
9046710088 96132-41000 Clip, No.1(For Idle-Up Hose)
9091711040 90917-11040 Filter, Gas
9092504004 90925-04004 Valve, Vacuum Transmitting, No.1
9099992002 90999-92002 Air Hose (300 mm)
9099992003 90999-92003 Hose, Breather (For Transfer Case)
9164180610 91641-80610 BOLT WWASHER
