TCR20

Toyota ESTIMA-EMINA-LUCIDA · 1992 · 6,800 parts · 403 categories

← Back to categories

6,800 items

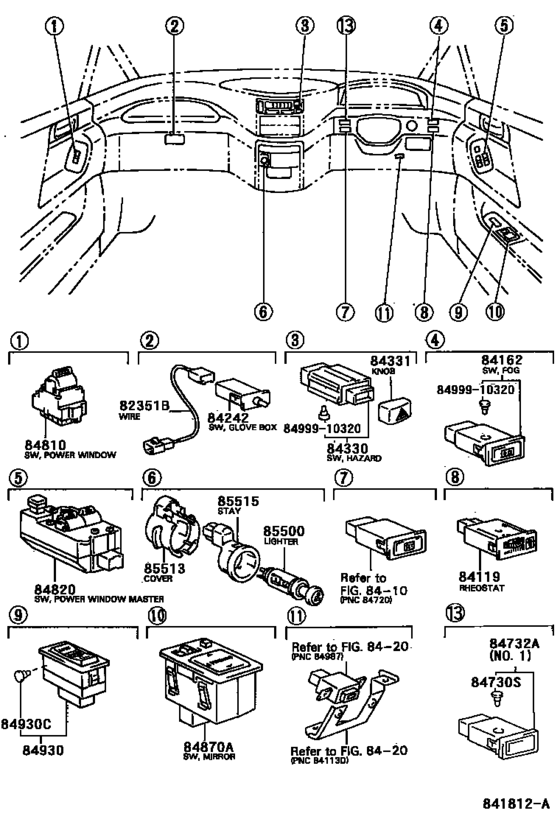

Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- )) 18

#	OEM	Part name
82351	82351-28011	Wire,courtesy Lamp
84162	84160-95D02	Switch, Front Fog Lamp
84242	84242-20030	Switch Assy, Courtesy Lamp (For Glove Box)
84330	84332-28110	Switch Assy, Hazard Warning Signal
84331	84331-95D00	Knob, Hazard Warning Signal Switch
84730	84999-10310	Bulb, Air Conditioner Control
84732	84730-95J06	Switch Assy, Heater Blower
84732	88610-28370	Switch, Rear Heater Blower
84810	84810-28030	Switch Assy, Power Window Regulator
84810	84810-95D00	Switch Assy, Power Window Regulator
84820	84820-28180	Master Switch Assy, Power Window Regulator
84820	84820-28181	Master Switch Assy, Power Window Regulator
84870	84870-16040	Switch Assy, Outer Mirror
84930	84930-28030	Switch Assy, Door Control
85500	85500-28050	Lighter Assy, Cigarette
85513	85513-28020	Cover, Cigarette Lighter
85515	85533-28020	Stay, Cigarette Lighter Bezel
8499910320	84999-10320	Bulb, Satellite Switch

OEM	Part name	Category
82351-28011	Wire,courtesy Lamp	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
84160-95D02	Switch, Front Fog Lamp	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
84242-20030	Switch Assy, Courtesy Lamp (For Glove Box)	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
84331-95D00	Knob, Hazard Warning Signal Switch	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
84332-28110	Switch Assy, Hazard Warning Signal	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
84730-95J06	Switch Assy, Heater Blower	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
84810-28030	Switch Assy, Power Window Regulator	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
84810-95D00	Switch Assy, Power Window Regulator	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
84820-28180	Master Switch Assy, Power Window Regulator	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
84820-28181	Master Switch Assy, Power Window Regulator	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
84870-16040	Switch Assy, Outer Mirror	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
84930-28030	Switch Assy, Door Control	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
84999-10310	Bulb, Air Conditioner Control	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
84999-10320	Bulb, Satellite Switch	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
85500-28050	Lighter Assy, Cigarette	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
85513-28020	Cover, Cigarette Lighter	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
85533-28020	Stay, Cigarette Lighter Bezel	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
88610-28370	Switch, Rear Heater Blower	Switch & Relay & Computer ([05.1990 - ] INSTRUMENT PANEL SWITCH (9005- ))
