Search › Model › TCR20
TCR20

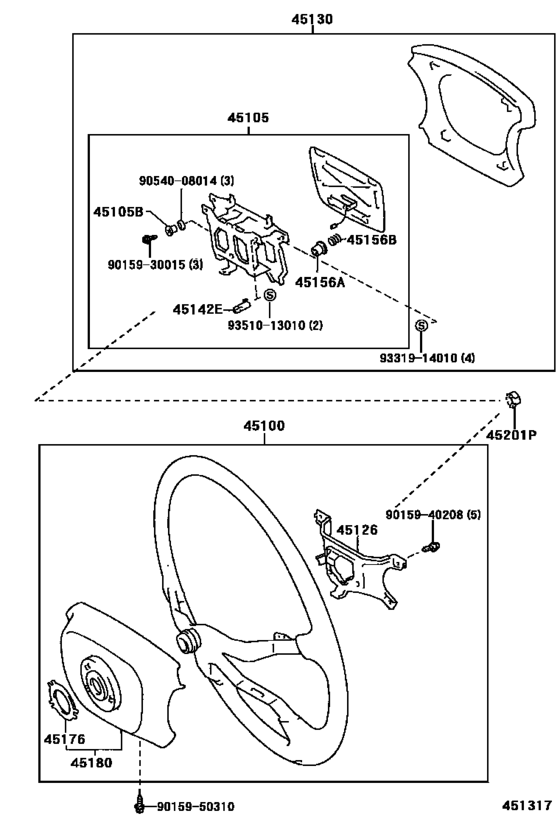

Steering Wheel ([05.1990 - ] (9005- )) 10
| # | OEM | Part name |
|---|---|---|
| 45100 | 45100-28150-B0 | Wheel Assy, Steering |
| 45105 | 45105-28100 | Plate Sub-Assy, Horn Button Contact, No.1 |
| 45130 | 45130-28380-B0 | Button Assy, Horn |
| 45201 | 90179-12071 | Nut, Steering Wheel Set |
| 9015930015 | 90159-30015 | New Genuine Part |
| 9015940208 | 90159-40208 | New Genuine Part |
| 9015950310 | 90159-50310 | New Genuine Part |
| 9054008014 | 90540-08014 | Cushion(For Horn Button Contact Plate) |
| 9331914010 | 93319-14010 | SCREW |
| 9351013010 | 93510-13010 | Bolt Or Pin (For Shift Lever Knob Setting) |
| OEM | Part name | Category |
|---|---|---|
| 45100-28150-B0 | Wheel Assy, Steering | Steering Wheel ([05.1990 - ] (9005- )) |
| 45105-28100 | Plate Sub-Assy, Horn Button Contact, No.1 | Steering Wheel ([05.1990 - ] (9005- )) |
| 45130-28380-B0 | Button Assy, Horn | Steering Wheel ([05.1990 - ] (9005- )) |
| 90159-30015 | New Genuine Part | Steering Wheel ([05.1990 - ] (9005- )) |
| 90159-40208 | New Genuine Part | Steering Wheel ([05.1990 - ] (9005- )) |
| 90159-50310 | New Genuine Part | Steering Wheel ([05.1990 - ] (9005- )) |
| 90179-12071 | Nut, Steering Wheel Set | Steering Wheel ([05.1990 - ] (9005- )) |
| 90540-08014 | Cushion(For Horn Button Contact Plate) | Steering Wheel ([05.1990 - ] (9005- )) |
| 93319-14010 | SCREW | Steering Wheel ([05.1990 - ] (9005- )) |
| 93510-13010 | Bolt Or Pin (For Shift Lever Knob Setting) | Steering Wheel ([05.1990 - ] (9005- )) |
