Search › Model › TCR20

TCR20

Toyota ESTIMA-EMINA-LUCIDA · 1992 · 6,800 parts · 403 categories

6,800 items

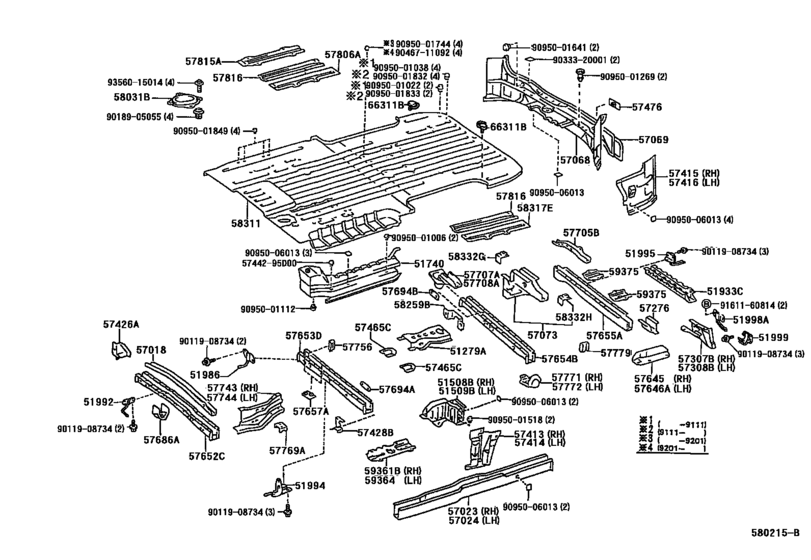

Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- )) 80

#	OEM	Part name
51508	51508-95D05	Bracket Sub-Assy, Lower Control Link, Rh
51509	51509-95D04	Bracket Sub-Assy, Lower Control Link, Lh
51740	51740-28020	Step Assy, Rear Floor, Lh
51933	51933-95D00	Stopper, Spare Wheel
51986	51986-28020	Hanger, Exhaust Pipe Support, No.3
51992	51992-28020	Hanger, Exhaust Pipe Support, No.2
51994	51994-28030	Hanger, Exhaust Pipe, No.4
51995	51995-28020	Hanger, Exhaust Pipe, No.5
51998	51998-28020	Hanger, Exhaust Pipe Support, No.6
51999	51999-28020	Hanger, Exhaust Pipe Support, No.7
57018	57018-95D00	Bracket Sub-Assy, Cross Member Floor, No.1
57023	57023-28440	Member Sub-Assy, Rear Side, Rh
57024	57024-28470	Member Sub-Assy, Rear Side, Lh
57068	57068-28190	Member Sub-Assy, Rear Floor Rear Cross, Inner
57069	57069-95D00	Member Sub-Assy, Rear Floor Rear Cross, Outer
57073	57073-28020	Bracket Sub-Assy, Lateral Rod
57276	57276-95D00	Gusset, Rear Floor Crossmember, No.4
57307	57307-95D00	Outrigger Sub-Assy, No.4 Rh
57308	57308-95D00	Outrigger Sub-Assy, No.4 Lh
57413	57413-95D03	Rail, Floor Side, Center Rh
57414	57414-95D02	Rail, Floor Side, Center Lh
57415	57047-95D00	Rail, Floor Side, Rear Rh
57416	57048-95D00	Rail, Floor Side, Rear Lh
57426	57426-95D00	Plate, Rear Step, Front Lh
57428	57428-95D00	Plate, Rear Step, Rear Lh
57465	57465-95D01	Retainer, Belt Anchor, No.2
57476	57476-95D00	Plate, Front Floor Crossmember, Lh
57645	57645-95D01	Reinforcement, Rear Side Member, Rh
57646	57646-95D01	Reinforcement, Rear Side Member, Lh
57652	57652-95D02	Member, Rear Floor Cross, No.1
57653	57653-95D01	Member, Rear Floor Cross, No.2
57654	57654-95D02	Member, Rear Floor Cross, No.3
57655	57655-28070	Member, Rear Floor Cross, No.4
57657	57657-28020	Bracket, Exhaust Pipe Mounting, No.2
57686	57686-95D00	Bracket, Fuel Tank Mounting, Rear Rh
57694	57694-95D00	Reinforcement, Fuel Tank Support, No.2
57743	57743-28030	Bracket, Upper Control Link, Inner Rh
57743	57743-28040	Bracket, Upper Control Link, Inner Rh
57744	57744-28040	Bracket, Upper Control Link, Inner Lh
57744	57744-28030	Bracket, Upper Control Link, Inner Lh
57756	57756-95D00	Plate, Rear Floor No.2 Crossmember
57769	57769-95D00	Reinforcement, Upper Control Link Bracket
57771	57771-95D01	Plate, Rear Spring, Rh
57772	57772-95D01	Plate, Rear Spring, Lh
57779	57779-95D00	Retainer, Upper Control Link, Upper
57806	57806-95D00	Reinforce Sub-Assy, No.1 Seat Leg, Rear No.2
58031	58031-95D00	Cover Sub-Assy, Rear Floor Service Hole
58259	58259-95D00	Reinforcement, Parking Brake Cable, No.1
58311	58311-28521	Pan, Rear Floor
58311	58311-28909	Pan, Rear Floor
58311	67891-26020	Weatherstrip, Rear Door Panel
58311	90333-20001	PLUG
58311	58311-28760	Pan, Rear Floor
58317	58317-95D00	Retainer, Rear Seat, No.2
58332	58332-28040	Bracket, Rear Floor Heat Insulator, No.4
59361	59361-28030	Retainer, Rear Seat, No.1 A
59364	59364-28040	Retainer, Rear Seat, No.1 D
59375	59375-95D01	Retainer, Rear Seat, No.4
66311	66310-28010	Hook, Rope
5744295	57442-95D00	Plug, Step Panel Hole
9011908734	90119-08734	Bolt, W/washer(For Transmission Case Cover)
9011908734	90119-08373	Bolt, W/washer(For Transmission Case Cover)
9018905055	90189-05055	GROMMET
9046711092	90467-11092	New Genuine Part
9095001006	90950-01006	Plug, Hole(For Front Fender)
9095001022	90950-01022	Plug, Hole, No.1(For Dash Panel)
9095001022	90950-01882	Cover, Hole
9095001038	90950-01038	Plug, Hole(For Instrument Lower Panel)
9095001112	90950-01112	Plug, Hole(For Heater Control Cable Hole)
9095001269	90950-01269	New Genuine Part
9095001269	90950-01453	New Genuine Part
9095001518	90950-01518	PLUG
9095001641	90950-01641	New Genuine Part
9095001744	90950-01744	New Genuine Part
9095001832	90950-01832	Sub-Sheet, Front Door Service Hole
9095001833	90950-01833	PLUG HOLE
9095001849	90950-01849	New Genuine Part
9095006013	90950-06013	New Genuine Part
9161160814	91611-60814	Bolt
9356015014	93560-15014	SCREW

OEM	Part name	Category
51508-95D05	Bracket Sub-Assy, Lower Control Link, Rh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
51509-95D04	Bracket Sub-Assy, Lower Control Link, Lh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
51740-28020	Step Assy, Rear Floor, Lh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
51933-95D00	Stopper, Spare Wheel	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
51986-28020	Hanger, Exhaust Pipe Support, No.3	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
51992-28020	Hanger, Exhaust Pipe Support, No.2	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
51994-28030	Hanger, Exhaust Pipe, No.4	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
51995-28020	Hanger, Exhaust Pipe, No.5	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
51998-28020	Hanger, Exhaust Pipe Support, No.6	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
51999-28020	Hanger, Exhaust Pipe Support, No.7	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57018-95D00	Bracket Sub-Assy, Cross Member Floor, No.1	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57023-28440	Member Sub-Assy, Rear Side, Rh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57024-28470	Member Sub-Assy, Rear Side, Lh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57047-95D00	Rail, Floor Side, Rear Rh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57048-95D00	Rail, Floor Side, Rear Lh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57068-28190	Member Sub-Assy, Rear Floor Rear Cross, Inner	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57069-95D00	Member Sub-Assy, Rear Floor Rear Cross, Outer	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57073-28020	Bracket Sub-Assy, Lateral Rod	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57276-95D00	Gusset, Rear Floor Crossmember, No.4	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57307-95D00	Outrigger Sub-Assy, No.4 Rh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57308-95D00	Outrigger Sub-Assy, No.4 Lh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57413-95D03	Rail, Floor Side, Center Rh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57414-95D02	Rail, Floor Side, Center Lh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57426-95D00	Plate, Rear Step, Front Lh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57428-95D00	Plate, Rear Step, Rear Lh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57442-95D00	Plug, Step Panel Hole	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57465-95D01	Retainer, Belt Anchor, No.2	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57476-95D00	Plate, Front Floor Crossmember, Lh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57645-95D01	Reinforcement, Rear Side Member, Rh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57646-95D01	Reinforcement, Rear Side Member, Lh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57652-95D02	Member, Rear Floor Cross, No.1	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57653-95D01	Member, Rear Floor Cross, No.2	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57654-95D02	Member, Rear Floor Cross, No.3	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57655-28070	Member, Rear Floor Cross, No.4	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57657-28020	Bracket, Exhaust Pipe Mounting, No.2	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57686-95D00	Bracket, Fuel Tank Mounting, Rear Rh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57694-95D00	Reinforcement, Fuel Tank Support, No.2	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57743-28030	Bracket, Upper Control Link, Inner Rh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57743-28040	Bracket, Upper Control Link, Inner Rh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57744-28030	Bracket, Upper Control Link, Inner Lh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57744-28040	Bracket, Upper Control Link, Inner Lh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57756-95D00	Plate, Rear Floor No.2 Crossmember	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57769-95D00	Reinforcement, Upper Control Link Bracket	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57771-95D01	Plate, Rear Spring, Rh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57772-95D01	Plate, Rear Spring, Lh	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57779-95D00	Retainer, Upper Control Link, Upper	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
57806-95D00	Reinforce Sub-Assy, No.1 Seat Leg, Rear No.2	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
58031-95D00	Cover Sub-Assy, Rear Floor Service Hole	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
58259-95D00	Reinforcement, Parking Brake Cable, No.1	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
58311-28521	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
58311-28760	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
58311-28909	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
58317-95D00	Retainer, Rear Seat, No.2	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
58332-28040	Bracket, Rear Floor Heat Insulator, No.4	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
59361-28030	Retainer, Rear Seat, No.1 A	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
59364-28040	Retainer, Rear Seat, No.1 D	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
59375-95D01	Retainer, Rear Seat, No.4	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
66310-28010	Hook, Rope	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
67891-26020	Weatherstrip, Rear Door Panel	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90119-08373	Bolt, W/washer(For Transmission Case Cover)	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90119-08734	Bolt, W/washer(For Transmission Case Cover)	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90189-05055	GROMMET	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90333-20001	PLUG	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90467-11092	New Genuine Part	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90950-01006	Plug, Hole(For Front Fender)	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90950-01022	Plug, Hole, No.1(For Dash Panel)	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90950-01038	Plug, Hole(For Instrument Lower Panel)	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90950-01112	Plug, Hole(For Heater Control Cable Hole)	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90950-01269	New Genuine Part	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90950-01453	New Genuine Part	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90950-01518	PLUG	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90950-01641	New Genuine Part	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90950-01744	New Genuine Part	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90950-01832	Sub-Sheet, Front Door Service Hole	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90950-01833	PLUG HOLE	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90950-01849	New Genuine Part	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90950-01882	Cover, Hole	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
90950-06013	New Genuine Part	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
91611-60814	Bolt	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))
93560-15014	SCREW	Rear Floor Panel & Rear Floor Member ([05.1990 - ] (9005- ))

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 403
Collected: 2026-08-03
