Search › Model › TCR20

TCR20

Toyota ESTIMA-EMINA-LUCIDA · 1992 · 6,800 parts · 403 categories

6,800 items

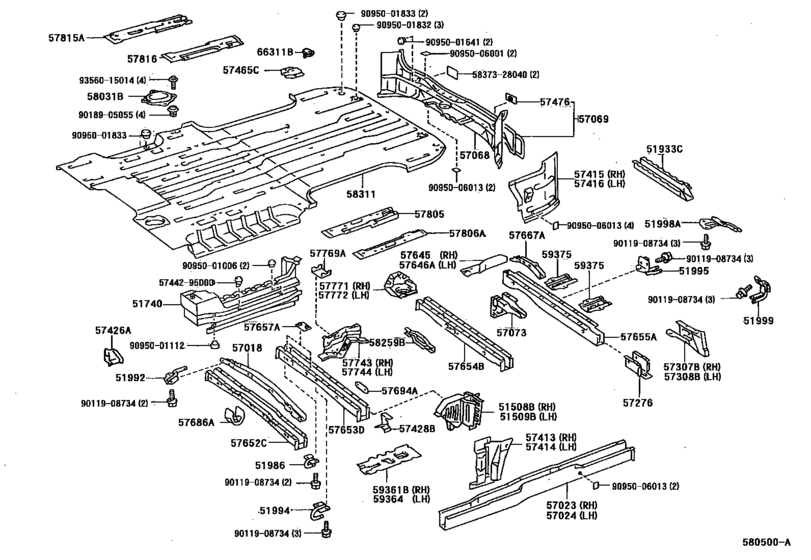

Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20) 68

#	OEM	Part name
51508	51508-95D05	Bracket Sub-Assy, Lower Control Link, Rh
51509	51509-95D04	Bracket Sub-Assy, Lower Control Link, Lh
51740	51740-28020	Step Assy, Rear Floor, Lh
51933	51933-28100	Stopper, Spare Wheel
51986	51986-28010	Hanger, Exhaust Pipe Support, No.3
51992	51992-28020	Hanger, Exhaust Pipe Support, No.2
51994	51994-28040	Hanger, Exhaust Pipe, No.4
51995	51995-28020	Hanger, Exhaust Pipe, No.5
51998	51998-28010	Hanger, Exhaust Pipe Support, No.6
51999	51999-28010	Hanger, Exhaust Pipe Support, No.7
57018	57018-28010	Bracket Sub-Assy, Cross Member Floor, No.1
57023	57023-28120	Member Sub-Assy, Rear Side, Rh
57024	57024-28100	Member Sub-Assy, Rear Side, Lh
57068	57068-28050	Member Sub-Assy, Rear Floor Rear Cross, Inner
57069	57069-28010	Member Sub-Assy, Rear Floor Rear Cross, Outer
57073	57073-28010	Bracket Sub-Assy, Lateral Rod
57276	57276-95D00	Gusset, Rear Floor Crossmember, No.4
57307	57307-95D00	Outrigger Sub-Assy, No.4 Rh
57308	57308-95D00	Outrigger Sub-Assy, No.4 Lh
57413	57413-95D03	Rail, Floor Side, Center Rh
57414	57414-95D02	Rail, Floor Side, Center Lh
57415	57047-95D00	Rail, Floor Side, Rear Rh
57416	57048-95D00	Rail, Floor Side, Rear Lh
57426	57426-95D00	Plate, Rear Step, Front Lh
57428	57428-95D00	Plate, Rear Step, Rear Lh
57476	57476-95D00	Plate, Front Floor Crossmember, Lh
57645	57645-95D01	Reinforcement, Rear Side Member, Rh
57646	57646-95D01	Reinforcement, Rear Side Member, Lh
57652	57652-28030	Member, Rear Floor Cross, No.1
57653	57653-28020	Member, Rear Floor Cross, No.2
57654	57654-28010	Member, Rear Floor Cross, No.3
57655	57655-28020	Member, Rear Floor Cross, No.4
57657	57657-28020	Bracket, Exhaust Pipe Mounting, No.2
57667	57667-28010	Reinforcement, Rear Floor Crossmember, No.4
57686	57686-95D00	Bracket, Fuel Tank Mounting, Rear Rh
57694	57694-95D00	Reinforcement, Fuel Tank Support, No.2
57743	57743-28030	Bracket, Upper Control Link, Inner Rh
57743	57743-28040	Bracket, Upper Control Link, Inner Rh
57744	57744-28040	Bracket, Upper Control Link, Inner Lh
57744	57744-28030	Bracket, Upper Control Link, Inner Lh
57769	57769-95D00	Reinforcement, Upper Control Link Bracket
57771	57771-95D01	Plate, Rear Spring, Rh
57772	57772-95D01	Plate, Rear Spring, Lh
57805	57805-28011	Reinforcement Sub-Assy, Belt Anchor
57806	57806-28031	Reinforce Sub-Assy, No.1 Seat Leg, Rear No.2
57815	57807-28010	Reinforcement, Belt Anchor, Rh
58031	58031-95D00	Cover Sub-Assy, Rear Floor Service Hole
58259	58259-95D00	Reinforcement, Parking Brake Cable, No.1
58311	58311-28542	Pan, Rear Floor
58311	58311-28572	Pan, Rear Floor
58311	67891-26020	Weatherstrip, Rear Door Panel
59361	59361-28010	Retainer, Rear Seat, No.1 A
59364	59364-28010	Retainer, Rear Seat, No.1 D
59375	59375-95D01	Retainer, Rear Seat, No.4
66311	66310-28010	Hook, Rope
5744295	57442-95D00	Plug, Step Panel Hole
5837328040	58373-28040	Seal, Back Frame, Lower
9011908734	90119-08734	Bolt, W/washer(For Transmission Case Cover)
9011908734	90119-08373	Bolt, W/washer(For Transmission Case Cover)
9018905055	90189-05055	GROMMET
9095001006	90950-01006	Plug, Hole(For Front Fender)
9095001112	90950-01112	Plug, Hole(For Heater Control Cable Hole)
9095001641	90950-01641	New Genuine Part
9095001832	90950-01832	Sub-Sheet, Front Door Service Hole
9095001833	90950-01833	PLUG HOLE
9095006001	90950-06001	Protector, Front Side Panel, No.3
9095006013	90950-06013	New Genuine Part
9356015014	93560-15014	SCREW

OEM	Part name	Category
51508-95D05	Bracket Sub-Assy, Lower Control Link, Rh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
51509-95D04	Bracket Sub-Assy, Lower Control Link, Lh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
51740-28020	Step Assy, Rear Floor, Lh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
51933-28100	Stopper, Spare Wheel	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
51986-28010	Hanger, Exhaust Pipe Support, No.3	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
51992-28020	Hanger, Exhaust Pipe Support, No.2	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
51994-28040	Hanger, Exhaust Pipe, No.4	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
51995-28020	Hanger, Exhaust Pipe, No.5	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
51998-28010	Hanger, Exhaust Pipe Support, No.6	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
51999-28010	Hanger, Exhaust Pipe Support, No.7	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57018-28010	Bracket Sub-Assy, Cross Member Floor, No.1	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57023-28120	Member Sub-Assy, Rear Side, Rh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57024-28100	Member Sub-Assy, Rear Side, Lh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57047-95D00	Rail, Floor Side, Rear Rh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57048-95D00	Rail, Floor Side, Rear Lh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57068-28050	Member Sub-Assy, Rear Floor Rear Cross, Inner	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57069-28010	Member Sub-Assy, Rear Floor Rear Cross, Outer	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57073-28010	Bracket Sub-Assy, Lateral Rod	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57276-95D00	Gusset, Rear Floor Crossmember, No.4	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57307-95D00	Outrigger Sub-Assy, No.4 Rh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57308-95D00	Outrigger Sub-Assy, No.4 Lh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57413-95D03	Rail, Floor Side, Center Rh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57414-95D02	Rail, Floor Side, Center Lh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57426-95D00	Plate, Rear Step, Front Lh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57428-95D00	Plate, Rear Step, Rear Lh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57442-95D00	Plug, Step Panel Hole	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57476-95D00	Plate, Front Floor Crossmember, Lh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57645-95D01	Reinforcement, Rear Side Member, Rh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57646-95D01	Reinforcement, Rear Side Member, Lh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57652-28030	Member, Rear Floor Cross, No.1	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57653-28020	Member, Rear Floor Cross, No.2	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57654-28010	Member, Rear Floor Cross, No.3	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57655-28020	Member, Rear Floor Cross, No.4	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57657-28020	Bracket, Exhaust Pipe Mounting, No.2	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57667-28010	Reinforcement, Rear Floor Crossmember, No.4	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57686-95D00	Bracket, Fuel Tank Mounting, Rear Rh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57694-95D00	Reinforcement, Fuel Tank Support, No.2	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57743-28030	Bracket, Upper Control Link, Inner Rh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57743-28040	Bracket, Upper Control Link, Inner Rh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57744-28030	Bracket, Upper Control Link, Inner Lh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57744-28040	Bracket, Upper Control Link, Inner Lh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57769-95D00	Reinforcement, Upper Control Link Bracket	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57771-95D01	Plate, Rear Spring, Rh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57772-95D01	Plate, Rear Spring, Lh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57805-28011	Reinforcement Sub-Assy, Belt Anchor	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57806-28031	Reinforce Sub-Assy, No.1 Seat Leg, Rear No.2	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
57807-28010	Reinforcement, Belt Anchor, Rh	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
58031-95D00	Cover Sub-Assy, Rear Floor Service Hole	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
58259-95D00	Reinforcement, Parking Brake Cable, No.1	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
58311-28542	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
58311-28572	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
58373-28040	Seal, Back Frame, Lower	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
59361-28010	Retainer, Rear Seat, No.1 A	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
59364-28010	Retainer, Rear Seat, No.1 D	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
59375-95D01	Retainer, Rear Seat, No.4	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
66310-28010	Hook, Rope	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
67891-26020	Weatherstrip, Rear Door Panel	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
90119-08373	Bolt, W/washer(For Transmission Case Cover)	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
90119-08734	Bolt, W/washer(For Transmission Case Cover)	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
90189-05055	GROMMET	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
90950-01006	Plug, Hole(For Front Fender)	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
90950-01112	Plug, Hole(For Heater Control Cable Hole)	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
90950-01641	New Genuine Part	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
90950-01832	Sub-Sheet, Front Door Service Hole	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
90950-01833	PLUG HOLE	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
90950-06001	Protector, Front Side Panel, No.3	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
90950-06013	New Genuine Part	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
93560-15014	SCREW	Rear Floor Panel & Rear Floor Member ([01.1992 - ] (9201- )CXR10,20,TCR10,20)
