TCR20

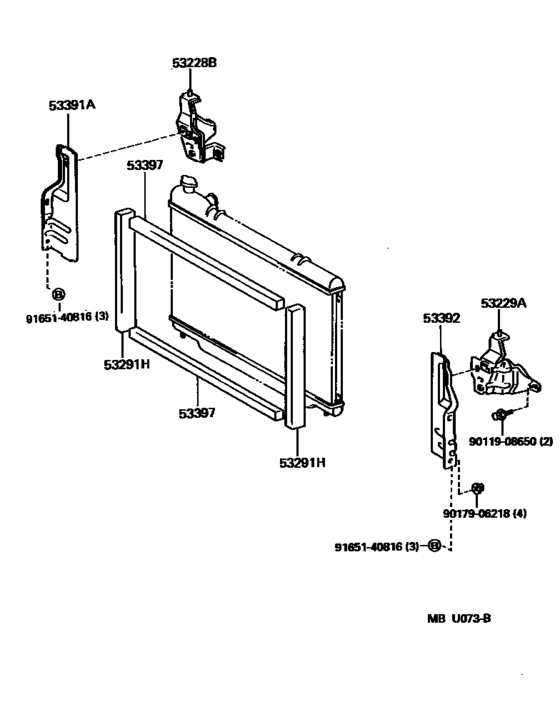

Radiator Support & Wind Guide ([05.1990 - ] (9005- )) 10
| # | OEM | Part name |
|---|---|---|
| 53228 | 53209-28030 | Bracket Sub-Assy, Radiator Grille Mounting |
| 53229 | 53229-28020 | Bracket, Radiator Grille Mounting |
| 53291 | 53291-95D00 | Seal, Radiator Support |
| 53391 | 53391-95D00 | Bracket, Radiator Seal, Rh |
| 53392 | 53392-95D00 | Bracket, Radiator Seal, Lh |
| 53397 | 53397-95D00 | Seal, Radiator, Upper |
| 9011908650 | 90119-08650 | New Genuine Part |
| 9017906218 | 90179-06218 | New Genuine Part |
| 9017906218 | 90179-06264 | NUT, WWASHER |
| 9165140816 | 91651-40816 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 53209-28030 | Bracket Sub-Assy, Radiator Grille Mounting | Radiator Support & Wind Guide ([05.1990 - ] (9005- )) |
| 53229-28020 | Bracket, Radiator Grille Mounting | Radiator Support & Wind Guide ([05.1990 - ] (9005- )) |
| 53291-95D00 | Seal, Radiator Support | Radiator Support & Wind Guide ([05.1990 - ] (9005- )) |
| 53391-95D00 | Bracket, Radiator Seal, Rh | Radiator Support & Wind Guide ([05.1990 - ] (9005- )) |
| 53392-95D00 | Bracket, Radiator Seal, Lh | Radiator Support & Wind Guide ([05.1990 - ] (9005- )) |
| 53397-95D00 | Seal, Radiator, Upper | Radiator Support & Wind Guide ([05.1990 - ] (9005- )) |
| 90119-08650 | New Genuine Part | Radiator Support & Wind Guide ([05.1990 - ] (9005- )) |
| 90179-06218 | New Genuine Part | Radiator Support & Wind Guide ([05.1990 - ] (9005- )) |
| 90179-06264 | NUT, WWASHER | Radiator Support & Wind Guide ([05.1990 - ] (9005- )) |
| 91651-40816 | BOLT | Radiator Support & Wind Guide ([05.1990 - ] (9005- )) |
