Search › Model › TCR20

TCR20

Toyota ESTIMA-EMINA-LUCIDA · 1992 · 6,800 parts · 403 categories

6,800 items

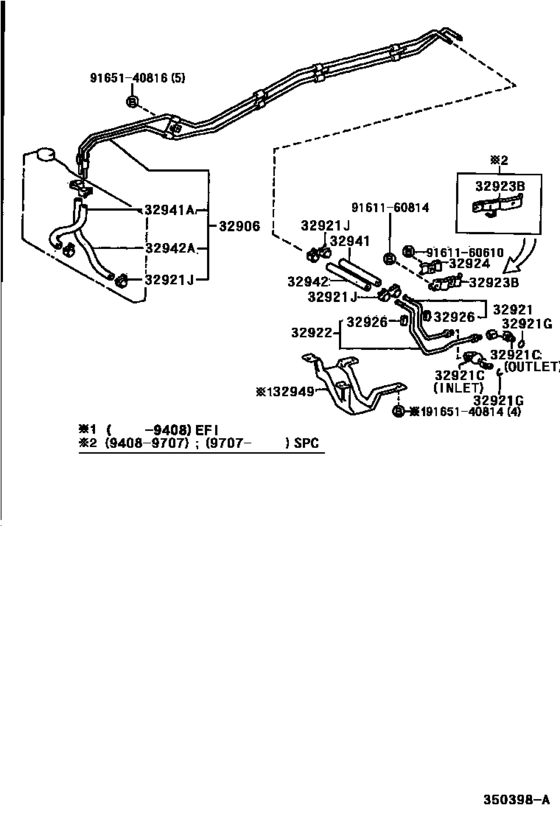

Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- )) 20

#	OEM	Part name
32906	32906-28010	Tube Sub-Assy, Oil Cooler
32921	32921-28160	Tube, Oil Cooler Inlet, No.1
32921	90407-14024	Union(For Oil Cooler Tube)
32921	90407-16009	Union(For Oil Cooler Tube)
32921	90301-11006	O Ring, Transaxle Case Elbow
32921	90467-16013	Clip(For Oil Return Hose)
32921	90467-16022	Clip(For Water Inlet Hose)
32922	32922-28140	Tube, Oil Cooler Outlet, No.1
32923	32923-28100	Clamp, Automatic Transmission Oil Cooler Tube, No.1
32924	90462-12074	Clamp, Automatic Transmission Oil Cooler Tube
32926	32926-30020	Cushion, Oil Cooler Tube(Atm)
32941	32941-28170	Hose(For Oil Cooler Outlet)
32941	32941-28190	Hose(For Oil Cooler Inlet)
32942	32942-28170	Hose(For Oil Cooler Outlet)
9161160610	91611-60610	Bolt (For Transfer Oil Receiver No.1)
9161160610	91611-B0610	Bolt (For Transfer Oil Receiver No.1)
9161160814	91611-60814	Bolt
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part
9165140816	91651-40816	BOLT

OEM	Part name	Category
32906-28010	Tube Sub-Assy, Oil Cooler	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
32921-28160	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
32922-28140	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
32923-28100	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
32926-30020	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
32941-28170	Hose(For Oil Cooler Outlet)	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
32941-28190	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
32942-28170	Hose(For Oil Cooler Outlet)	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
90080-11228	New Genuine Part	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
90301-11006	O Ring, Transaxle Case Elbow	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
90407-14024	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
90407-16009	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
90462-12074	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
90467-16013	Clip(For Oil Return Hose)	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
91611-60610	Bolt (For Transfer Oil Receiver No.1)	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
91611-60814	Bolt	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
91651-40814	BOLT	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
91651-40816	BOLT	Oil Cooler & Tube (Atm) ([05.1990 - ] A46DE,A46DF,A340E,A340F (9005- ))
