Search › Model › TCR20
TCR20

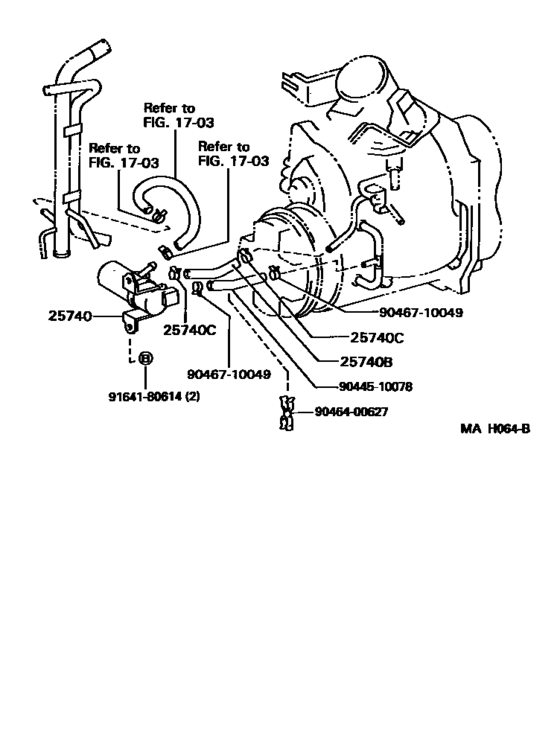

Manifold Air Injection System ([08.1994 - ] (9408- )2TZFZE) 8
| # | OEM | Part name |
|---|---|---|
| 25740 | 25740-76010 | Valve Assy, Air Control |
| 25740 | 90445-10070 | Hose(For Air Control Valve Assy) |
| 25740 | 90467-10049 | Clamp Or Clip(For Fuel Hose Set) |
| 25740 | 90467-10149 | Clip, No.2(For Idle-Up Hose) |
| 9044510078 | 90445-10078 | New Genuine Part |
| 9046400627 | 90464-00627 | Clamp, Throttle Cable, No.6 |
| 9164180614 | 91641-80614 | Direct |
| 9164180614 | 91641-C0614 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 25740-76010 | Valve Assy, Air Control | Manifold Air Injection System ([08.1994 - ] (9408- )2TZFZE) |
| 90445-10070 | Hose(For Air Control Valve Assy) | Manifold Air Injection System ([08.1994 - ] (9408- )2TZFZE) |
| 90445-10078 | New Genuine Part | Manifold Air Injection System ([08.1994 - ] (9408- )2TZFZE) |
| 90464-00627 | Clamp, Throttle Cable, No.6 | Manifold Air Injection System ([08.1994 - ] (9408- )2TZFZE) |
| 90467-10049 | Clamp Or Clip(For Fuel Hose Set) | Manifold Air Injection System ([08.1994 - ] (9408- )2TZFZE) |
| 90467-10149 | Clip, No.2(For Idle-Up Hose) | Manifold Air Injection System ([08.1994 - ] (9408- )2TZFZE) |
| 91641-80614 | Direct | Manifold Air Injection System ([08.1994 - ] (9408- )2TZFZE) |
| 91641-C0614 | Bolt | Manifold Air Injection System ([08.1994 - ] (9408- )2TZFZE) |
