Search › Model › TCR20
TCR20

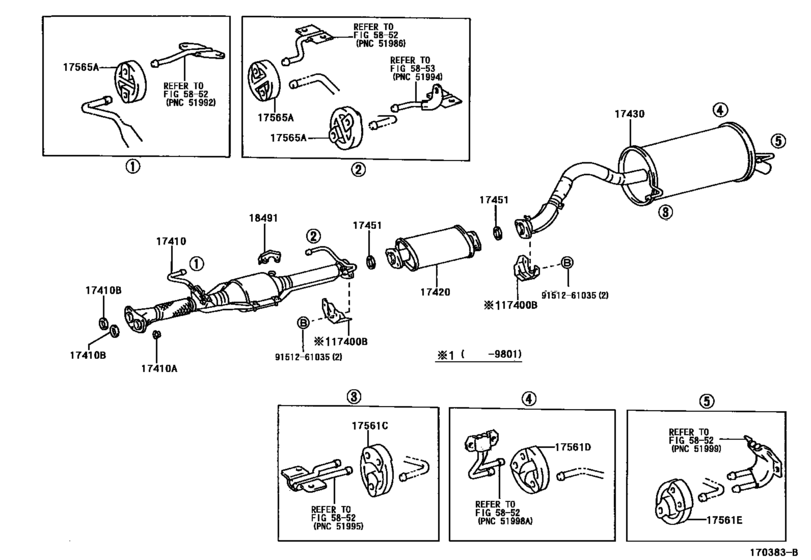

Exhaust Pipe ([08.1994 - ] (9408- )2TZFZE) 11
| # | OEM | Part name |
|---|---|---|
| 17410 | 17410-76182 | Pipe Assy, Exhaust, Front |
| 17410 | 90179-10070 | Nut, Exhaust Pipe Set Stud Bolt |
| 17410 | 90080-17187 | Nut, Exhaust Pipe Set Stud Bolt |
| 17410 | 90917-06039 | Gasket, Exhaust Pipe |
| 17420 | 17420-76011 | Pipe Assy, Exhaust, Center |
| 17430 | 17430-76091 | Pipe Assy, Exhaust, Tail |
| 17451 | 90917-06057 | Gasket, Exhaust Pipe, Center |
| 17561 | 17561-74110 | SUPPORT, EXHAUST PIPE |
| 17565 | 17565-11160 | Support, Exhaust Pipe, No.1 |
| 9151261035 | 91512-61035 | Bolt(For Transaxle Case & Engine Setting) |
| 9151261035 | 90080-10204 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 17410-76182 | Pipe Assy, Exhaust, Front | Exhaust Pipe ([08.1994 - ] (9408- )2TZFZE) |
| 17420-76011 | Pipe Assy, Exhaust, Center | Exhaust Pipe ([08.1994 - ] (9408- )2TZFZE) |
| 17430-76091 | Pipe Assy, Exhaust, Tail | Exhaust Pipe ([08.1994 - ] (9408- )2TZFZE) |
| 17561-74110 | SUPPORT, EXHAUST PIPE | Exhaust Pipe ([08.1994 - ] (9408- )2TZFZE) |
| 17565-11160 | Support, Exhaust Pipe, No.1 | Exhaust Pipe ([08.1994 - ] (9408- )2TZFZE) |
| 90080-10204 | New Genuine Part | Exhaust Pipe ([08.1994 - ] (9408- )2TZFZE) |
| 90080-17187 | Nut, Exhaust Pipe Set Stud Bolt | Exhaust Pipe ([08.1994 - ] (9408- )2TZFZE) |
| 90179-10070 | Nut, Exhaust Pipe Set Stud Bolt | Exhaust Pipe ([08.1994 - ] (9408- )2TZFZE) |
| 90917-06039 | Gasket, Exhaust Pipe | Exhaust Pipe ([08.1994 - ] (9408- )2TZFZE) |
| 90917-06057 | Gasket, Exhaust Pipe, Center | Exhaust Pipe ([08.1994 - ] (9408- )2TZFZE) |
| 91512-61035 | Bolt(For Transaxle Case & Engine Setting) | Exhaust Pipe ([08.1994 - ] (9408- )2TZFZE) |
