TCR20

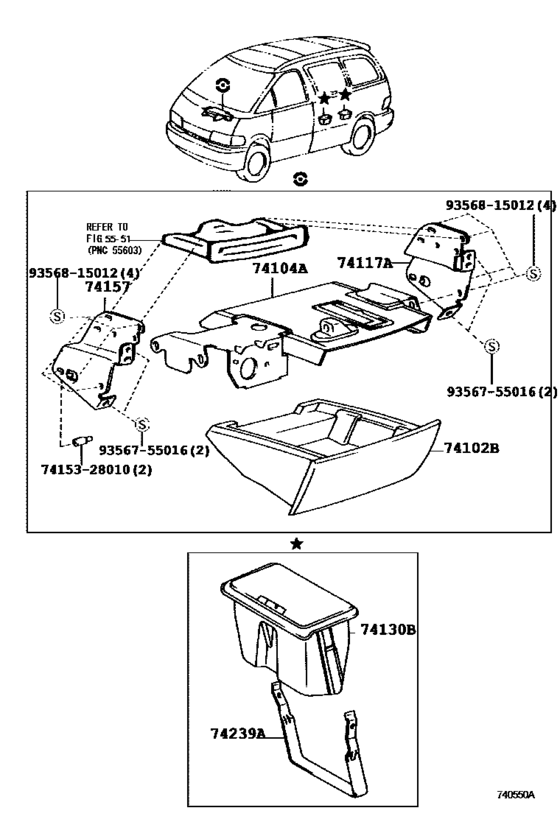

Ash Receptacle ([05.1990 - ] (9005- )) 12
| # | OEM | Part name |
|---|---|---|
| 74102 | 74102-95D00-17 | Box Sub-Assy, Front Ash Receptacle |
| 74102 | 74102-95D00-B1 | Box Sub-Assy, Front Ash Receptacle |
| 74104 | 74104-95D02 | Retainer Sub-Assy, Front Ash Receptacle |
| 74117 | 74117-95D00 | Bracket, Front Ash Receptacle Mounting, Rh |
| 74130 | 74130-95D00-B0 | Receptacle Assy, Rear Ash |
| 74157 | 74157-95D00 | Bracket, Front Ash Receptacle Mounting, Lh |
| 74239 | 74239-95D00 | Holder, Rear Ash Receptacle |
| 7415328010 | 74153-28010 | New Genuine Part |
| 9356755016 | 93567-55016 | Screw |
| 9356755016 | 93568-55016 | Screw |
| 9356815012 | 93568-15012 | SCREW |
| 9356815012 | 93568-55012 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 74102-95D00-17 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([05.1990 - ] (9005- )) |
| 74102-95D00-B1 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([05.1990 - ] (9005- )) |
| 74104-95D02 | Retainer Sub-Assy, Front Ash Receptacle | Ash Receptacle ([05.1990 - ] (9005- )) |
| 74117-95D00 | Bracket, Front Ash Receptacle Mounting, Rh | Ash Receptacle ([05.1990 - ] (9005- )) |
| 74130-95D00-B0 | Receptacle Assy, Rear Ash | Ash Receptacle ([05.1990 - ] (9005- )) |
| 74153-28010 | New Genuine Part | Ash Receptacle ([05.1990 - ] (9005- )) |
| 74157-95D00 | Bracket, Front Ash Receptacle Mounting, Lh | Ash Receptacle ([05.1990 - ] (9005- )) |
| 74239-95D00 | Holder, Rear Ash Receptacle | Ash Receptacle ([05.1990 - ] (9005- )) |
| 93567-55016 | Screw | Ash Receptacle ([05.1990 - ] (9005- )) |
| 93568-15012 | SCREW | Ash Receptacle ([05.1990 - ] (9005- )) |
| 93568-55012 | SCREW | Ash Receptacle ([05.1990 - ] (9005- )) |
| 93568-55016 | Screw | Ash Receptacle ([05.1990 - ] (9005- )) |
