Search › Model › TCR20

TCR20

Toyota ESTIMA-EMINA-LUCIDA · 1992 · 6,800 parts · 403 categories

6,800 items

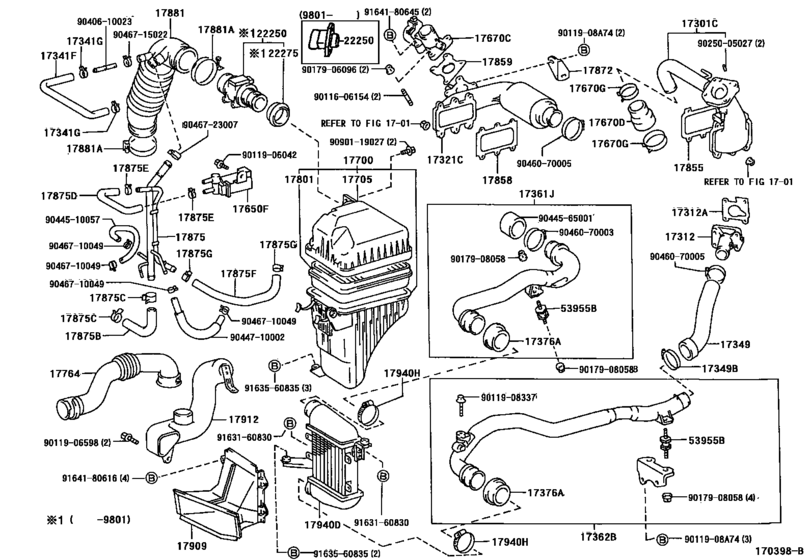

Air Cleaner ([08.1994 - ] (9408- )2TZFZE) 70

#	OEM	Part name
17301	17311-76010	Duct Sub-Assy, Air Inlet, No.1
17312	17312-76010	Duct, Air Inlet, No.2
17312	22273-76010	Gasket, Air Inlet Duct, No.2
17321	17321-76010	Duct, Air Outlet, No.1
17341	17341-76030	Hose, Air, No.1
17341	90467-15022	Clip Or Clamp(For Ventilation Hose)
17349	17349-76011	Hose, Intake Pipe
17349	90460-77007	Clamp, Hose(For Intake Pipe)
17349	90460-77002	Clamp Or Clip(For Air Hose, No.1)
17361	17361-76011	Tube, Air, No.1
17362	17362-76012	Tube, Air, No.2
17362	17362-76011	Tube, Air, No.2
17376	17376-76011	Gasket, Air Tube
17650	17650-76010	Valve Assy, Air By-Pass, No.2
17670	17670-76010	Valve Assy, Air By-Pass
17670	90904-45003	Hose, Air, No.1(For Air By-Pass Valve)
17670	90467-44001	Clip(For Air Hose No.1)
17700	17700-76141	Cleaner Assy, Air
17705	17705-76041	Cap Sub-Assy, Air Cleaner
17764	52811-28030	Duct, Air Cleaner
17801	17801-35020	Element Sub-Assy, Air Cleaner Filter
17855	17855-76010	Gasket, Air Inlet Duct, No.1
17858	17858-76010	Gasket, Air Outlet Duct, No.1
17859	17859-76010	Gasket, Air Outlet Duct, No.2
17872	17872-76010	Bracket, Intake Air Connector
17875	17875-76031	Pipe, Intake Air Connector
17875	17875-76030	Pipe, Intake Air Connector
17875	90910-05220	Hose, No.1(For Intake Air Connector, Pipe)
17875	90467-23007	Clip(For Ventilation Tube Hose)
17875	96134-42300	Clip Or Clamp(For Ventilation Hose)
17875	90910-05219	Hose, No.2(For Intake Air Connector, Pipe)
17875	90445-16047	Hose, No.3(For Intake Air Connector, Pipe)
17875	90445-16053	Hose, No.3(For Intake Air Connector, Pipe) - WATER BY-PASS, NO.2
17881	17881-76071	Hose, Air Cleaner, No.1
17881	96111-10800	Clamp, Hose(For Air Cleaner Duct)
17909	17909-76010	Duct Sub-Assy, Intercooler Cooling Air
17912	52820-28030	Duct, Cool Air Intake, No.2
17940	17940-76012	Intercooler Assy
17940	90460-75005	Clamp, Hose(For Intake Pipe)
17940	90460-75006	Clamp, Hose(For Air Hose, No.3)
22250	22204-20010	Meter Sub-Assy, Intake Air Flow
53955	53955-95402	Cushion, Air Cleaner Inlet
9011908	90119-08A74	New Genuine Part
9011908	91641-K0816	BOLT WWASHER
9011606154	90116-06154	New Genuine Part
9011606154	92122-60616	BOLT STUD
9011906042	90119-06042	New Genuine Part
9011906042	90119-06341	BOLT
9011906598	90119-06598	BOLT
9011906598	91631-A0618	New Genuine Part
9011908337	90119-08337	New Genuine Part
9017906096	90179-06096	New Genuine Part
9017906096	90179-06024	New Genuine Part
9017908058	90179-08058	New Genuine Part
9025005027	90250-05027	Pin, Straight
9040610023	90406-10023	New Genuine Part
9044510057	90445-10057	HOSE
9044565001	90445-65001	New Genuine Part
9044710002	90447-10002	Hose, No.1(For Idle-Up)
9046070003	90460-70003	Clamp Or Clip(For Air Hose, No.1)
9046070005	90460-70005	Clamp Or Clip(For Air Hose, No.2)
9046710049	90467-10049	Clamp Or Clip(For Fuel Hose Set)
9046710049	90467-10149	Clip, No.2(For Idle-Up Hose)
9090119027	90901-19027	New Genuine Part
9163160830	91631-60830	New Genuine Part
9163160830	91631-G0830	BOLT WWASHER
9163560835	91635-60835	New Genuine Part
9164180616	91641-80616	BOLT W-WASHER
9164180645	91641-80645	New Genuine Part
9164180645	91641-H0645	New Genuine Part

OEM	Part name	Category
17311-76010	Duct Sub-Assy, Air Inlet, No.1	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17312-76010	Duct, Air Inlet, No.2	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17321-76010	Duct, Air Outlet, No.1	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17341-76030	Hose, Air, No.1	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17349-76011	Hose, Intake Pipe	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17361-76011	Tube, Air, No.1	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17362-76011	Tube, Air, No.2	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17362-76012	Tube, Air, No.2	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17376-76011	Gasket, Air Tube	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17650-76010	Valve Assy, Air By-Pass, No.2	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17670-76010	Valve Assy, Air By-Pass	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17700-76141	Cleaner Assy, Air	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17705-76041	Cap Sub-Assy, Air Cleaner	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17801-35020	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17855-76010	Gasket, Air Inlet Duct, No.1	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17858-76010	Gasket, Air Outlet Duct, No.1	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17859-76010	Gasket, Air Outlet Duct, No.2	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17872-76010	Bracket, Intake Air Connector	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17875-76030	Pipe, Intake Air Connector	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17875-76031	Pipe, Intake Air Connector	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17881-76071	Hose, Air Cleaner, No.1	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17909-76010	Duct Sub-Assy, Intercooler Cooling Air	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
17940-76012	Intercooler Assy	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
22204-20010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
22273-76010	Gasket, Air Inlet Duct, No.2	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
52811-28030	Duct, Air Cleaner	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
52820-28030	Duct, Cool Air Intake, No.2	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
53955-95402	Cushion, Air Cleaner Inlet	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90116-06154	New Genuine Part	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90119-06042	New Genuine Part	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90119-06341	BOLT	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90119-06598	BOLT	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90119-08337	New Genuine Part	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90119-08A74	New Genuine Part	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90179-06024	New Genuine Part	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90179-06096	New Genuine Part	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90179-08058	New Genuine Part	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90250-05027	Pin, Straight	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90406-10023	New Genuine Part	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90445-10057	HOSE	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90445-16047	Hose, No.3(For Intake Air Connector, Pipe)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90445-16053	Hose, No.3(For Intake Air Connector, Pipe) - WATER BY-PASS, NO.2	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90445-65001	New Genuine Part	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90447-10002	Hose, No.1(For Idle-Up)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90460-70003	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90460-70005	Clamp Or Clip(For Air Hose, No.2)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90460-75005	Clamp, Hose(For Intake Pipe)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90460-75006	Clamp, Hose(For Air Hose, No.3)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90460-77002	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90460-77007	Clamp, Hose(For Intake Pipe)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90467-10049	Clamp Or Clip(For Fuel Hose Set)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90467-10149	Clip, No.2(For Idle-Up Hose)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90467-23007	Clip(For Ventilation Tube Hose)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90467-44001	Clip(For Air Hose No.1)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90901-19027	New Genuine Part	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90904-45003	Hose, Air, No.1(For Air By-Pass Valve)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90910-05219	Hose, No.2(For Intake Air Connector, Pipe)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
90910-05220	Hose, No.1(For Intake Air Connector, Pipe)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
91631-60830	New Genuine Part	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
91631-A0618	New Genuine Part	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
91631-G0830	BOLT WWASHER	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
91635-60835	New Genuine Part	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
91641-80616	BOLT W-WASHER	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
91641-80645	New Genuine Part	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
91641-H0645	New Genuine Part	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
91641-K0816	BOLT WWASHER	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
92122-60616	BOLT STUD	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
96111-10800	Clamp, Hose(For Air Cleaner Duct)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
96134-42300	Clip Or Clamp(For Ventilation Hose)	Air Cleaner ([08.1994 - ] (9408- )2TZFZE)
