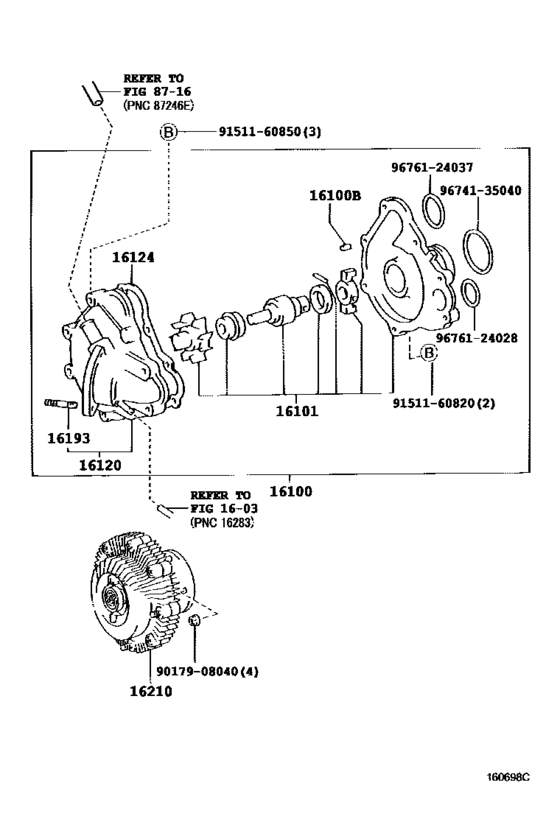

| 16100-79165 |
Pump Assy, Engine Water |
Water Pump ([01.1992 - ] (9201- )2TZFE) |
| 16101-76030 |
Body Sub-Assy, Water Pump |
Water Pump ([01.1992 - ] (9201- )2TZFE) |
| 16120-76030 |
Cover Assy, Water Pump |
Water Pump ([01.1992 - ] (9201- )2TZFE) |
| 16124-76040 |
Gasket, Water Pump Cover |
Water Pump ([01.1992 - ] (9201- )2TZFE) |
| 16159-71010 |
Pin, Ring(For Oil Seal Retainer, No.2) |
Water Pump ([01.1992 - ] (9201- )2TZFE) |
| 16193-76010 |
Bolt, Stud(For Water Pump Cover) |
Water Pump ([01.1992 - ] (9201- )2TZFE) |
| 16210-76010 |
Coupling Assy, Fluid |
Water Pump ([01.1992 - ] (9201- )2TZFE) |
| 90179-08040 |
Nut, Cap(For Cylinder Head Cover) |
Water Pump ([01.1992 - ] (9201- )2TZFE) |
| 91511-60820 |
Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
Water Pump ([01.1992 - ] (9201- )2TZFE) |
| 91511-60850 |
Bolt |
Water Pump ([01.1992 - ] (9201- )2TZFE) |
| 91511-B0850 |
Bolt |
Water Pump ([01.1992 - ] (9201- )2TZFE) |
| 91511-J0820 |
Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
Water Pump ([01.1992 - ] (9201- )2TZFE) |
| 96741-35040 |
RING O |
Water Pump ([01.1992 - ] (9201- )2TZFE) |
| 96761-24028 |
Ring,o(For Water Outlet) |
Water Pump ([01.1992 - ] (9201- )2TZFE) |
| 96761-24037 |
Ring,o(For Water Outlet) |
Water Pump ([01.1992 - ] (9201- )2TZFE) |
