TCR11

Toyota ESTIMA-EMINA-LUCIDA · 1990 · 5,873 parts · 228 categories
TCR11 ×

← Back to categories

5,873 items

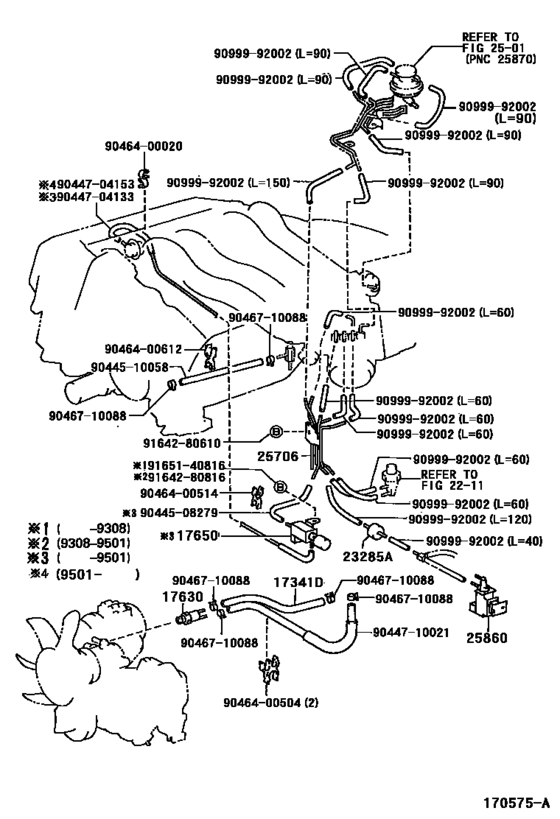

Vacuum Piping ([01.1992 - 08.1996] (9201-9608)2TZFE) 25
#OEMPart name
17341 90445-10055 Hose, No.1(For Idle-Up)
17630 17630-50010 Valve Assy, Air Control
17630 17630-70020 Valve Assy, Air Control
17630 17630-16040 Valve Assy, Air Control
23285 90917-10080 Filter, Gas, No.1
25706 25706-76020 Pipe Sub-Assy, Vacuum Transmitting, No.1
25706 25706-76050 Pipe Sub-Assy, Vacuum Transmitting, No.1
25860 25860-76010 Valve Assy, Vacuum Switching, No.1
9044508279 90445-08279 New Genuine Part
9044510058 90445-10058 Hose (For Four Wheel Drive Control)
9044704133 90447-04133 New Genuine Part
9044704153 90447-04153 New Genuine Part
9044710021 90447-10021 New Genuine Part
9046400020 90464-00020 New Genuine Part
9046400504 90464-00504 New Genuine Part
9046400514 90464-00514 New Genuine Part
9046400612 90464-00612 New Genuine Part
9046710088 90467-10088 Clip, No.2(For Idle-Up Hose)
9046710088 96132-41000 Clip, No.1(For Idle-Up Hose)
9099992002 90999-92002 Air Hose (300 mm)
9164280610 91642-80610 New Genuine Part
9164280610 91641-80610 BOLT WWASHER
9164280816 91642-80816 Bolt
9164280816 91641-K0816 BOLT WWASHER
9165140816 91651-40816 BOLT
