Search › Model › TCR11

TCR11

Toyota ESTIMA-EMINA-LUCIDA · 1990 · 5,873 parts · 228 categories

5,873 items

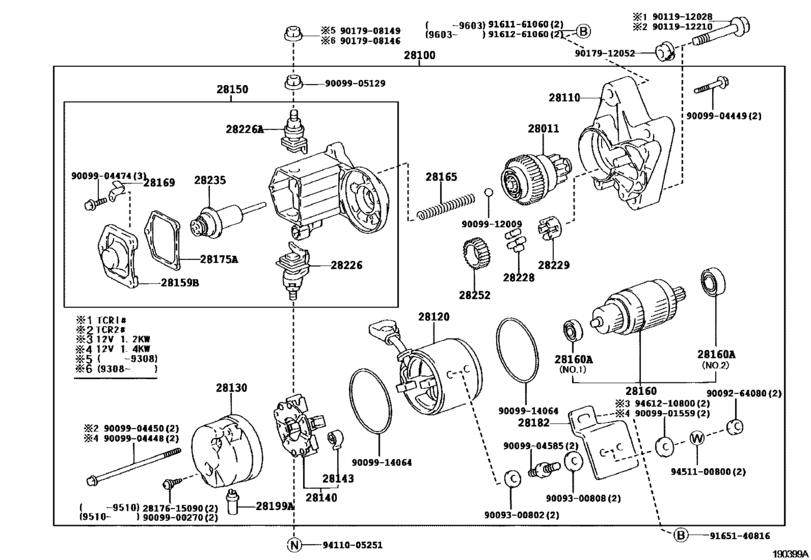

Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE) 59

#	OEM	Part name
28011	28011-76070	Clutch Sub-Assy, Starter
28100	28100-76081	Starter Assy
28100	28100-76060	Starter Assy
28100	28100-76091	Starter Assy
28100	28100-76070	Starter Assy
28110	28110-76070	Housing Assy, Starter Drive
28120	28120-76061	Yoke Assy, Starter
28120	28120-76070	Yoke Assy, Starter
28130	28130-76060	Frame Assy, Starter Commutator End
28130	28130-76070	Frame Assy, Starter Commutator End
28140	28140-76060	Holder Assy, Starter Brush
28140	28140-76070	Holder Assy, Starter Brush
28143	28143-76060	Spring, Starter Brush
28150	28150-76081	Switch Assy, Magnet Starter
28159	28159-55050	Cover, Starter Protector
28160	28160-74070	Armature Assy, Starter
28160	28160-76060	Armature Assy, Starter
28160	90099-10196	Bearing, Starter Armature
28160	90099-10197	Bearing, Starter Armature
28165	28165-76070	Spring, Starter Magnet Switch Return
28169	28169-55050	Clamp, Starter Motor Lead Wire
28175	28175-55050	Gasket, Magnet Switch Cover
28182	28182-76070	Stay, Starter Commutator End Frame
28199	28199-74110	Cover, Starter End Frame
28226	28226-64200	Starter Kit, Battery Terminal
28226	28226-22050	Starter Kit, Battery Terminal
28226	28226-74070	Starter Kit, Battery Terminal
28228	28228-26040	Roller, Starter Idle Gear Clutch
28229	28229-74070	Retainer, Starter Idle Gear
28235	28235-55050	Plunger, Magnet Switch
28252	28254-74070	Pinion, Starter Drive
2817615090	28176-15090	Screw, Starter
2817615090	28176-87701	Screw, Starter
9009264080	90092-64080	New Genuine Part
9009300802	90093-00802	Washer, Plate(For Connecting Pin)
9009300808	90093-00808	New Genuine Part
9009900270	90099-00270	Screw, Starter
9009901559	90099-01559	New Genuine Part
9009904448	90099-04448	Bolt, Starter
9009904449	90099-04449	New Genuine Part
9009904450	90099-04450	New Genuine Part
9009904474	90099-04474	New Genuine Part
9009904585	90099-04585	New Genuine Part
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009912009	90099-12009	Ball, Starter Clutch
9009914064	90099-14064	Rubber(For Starter Yoke)
9011912028	90119-12028	Bolt(For Transmission Case & Engine Setting)
9011912210	90119-12210	New Genuine Part
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9017908149	90179-08149	New Genuine Part
9017912052	90179-12052	Nut (For Front Lower Ball Joint Setting)
9161161060	91611-61060	Bolt(for Clutch Release Cylinder Setting)
9161161060	91612-61060	Bolt(for Clutch Release Cylinder Setting)
9165140816	91651-40816	BOLT
9411005251	94110-05251	New Genuine Part
9411005251	90099-05251	New Genuine Part
9451100800	94511-00800	WASHERSPRING
9461210800	94612-10800	Washer, Plate(For Repair Actuator Set)

OEM	Part name	Category
28011-76070	Clutch Sub-Assy, Starter	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28100-76060	Starter Assy	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28100-76070	Starter Assy	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28100-76081	Starter Assy	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28100-76091	Starter Assy	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28110-76070	Housing Assy, Starter Drive	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28120-76061	Yoke Assy, Starter	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28120-76070	Yoke Assy, Starter	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28130-76060	Frame Assy, Starter Commutator End	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28130-76070	Frame Assy, Starter Commutator End	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28140-76060	Holder Assy, Starter Brush	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28140-76070	Holder Assy, Starter Brush	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28143-76060	Spring, Starter Brush	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28150-76081	Switch Assy, Magnet Starter	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28159-55050	Cover, Starter Protector	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28160-74070	Armature Assy, Starter	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28160-76060	Armature Assy, Starter	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28165-76070	Spring, Starter Magnet Switch Return	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28169-55050	Clamp, Starter Motor Lead Wire	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28175-55050	Gasket, Magnet Switch Cover	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28176-15090	Screw, Starter	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28176-87701	Screw, Starter	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28182-76070	Stay, Starter Commutator End Frame	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28199-74110	Cover, Starter End Frame	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28226-22050	Starter Kit, Battery Terminal	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28226-64200	Starter Kit, Battery Terminal	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28226-74070	Starter Kit, Battery Terminal	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28228-26040	Roller, Starter Idle Gear Clutch	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28229-74070	Retainer, Starter Idle Gear	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28235-55050	Plunger, Magnet Switch	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
28254-74070	Pinion, Starter Drive	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90092-64080	New Genuine Part	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90093-00802	Washer, Plate(For Connecting Pin)	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90093-00808	New Genuine Part	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90099-00270	Screw, Starter	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90099-01559	New Genuine Part	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90099-04448	Bolt, Starter	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90099-04449	New Genuine Part	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90099-04450	New Genuine Part	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90099-04474	New Genuine Part	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90099-04585	New Genuine Part	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90099-05251	New Genuine Part	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90099-10196	Bearing, Starter Armature	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90099-10197	Bearing, Starter Armature	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90099-12009	Ball, Starter Clutch	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90099-14064	Rubber(For Starter Yoke)	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90119-12028	Bolt(For Transmission Case & Engine Setting)	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90119-12210	New Genuine Part	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90179-08146	Nut	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90179-08149	New Genuine Part	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90179-08204	Nut	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
90179-12052	Nut (For Front Lower Ball Joint Setting)	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
91611-61060	Bolt(for Clutch Release Cylinder Setting)	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
91612-61060	Bolt(for Clutch Release Cylinder Setting)	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
91651-40816	BOLT	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
94110-05251	New Genuine Part	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
94511-00800	WASHERSPRING	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
94612-10800	Washer, Plate(For Repair Actuator Set)	Starter ([01.1992 - ] 12V 1.2KW,1.4KW (9201- )2TZFE)
