Search › Model › TCR11
TCR11

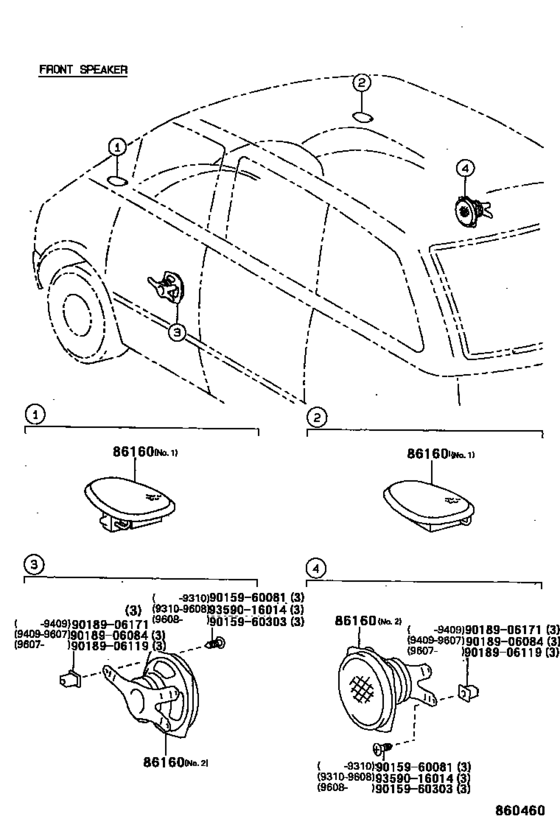

Speaker ([01.1992 - ] FRONT (9201- )) 14
| # | OEM | Part name |
|---|---|---|
| 86160 | 86160-28140 | Speaker Assy, Front No.1 |
| 86160 | 86160-28150 | Speaker Assy, Front No.1 |
| 86160 | 86160-28160-B0 | Speaker Assy, Front No.1 |
| 86160 | 86160-28160-E1 | Speaker Assy, Front No.1 |
| 86160 | 86160-28170-B0 | Speaker Assy, Front No.1 |
| 86160 | 86160-28170-E1 | Speaker Assy, Front No.1 |
| 86160 | 86160-28440 | Speaker Assy, Front No.1 |
| 86160 | 86160-28450 | Speaker Assy, Front No.1 |
| 9015960081 | 90159-60081 | SCREW |
| 9015960303 | 90159-60303 | SCREW |
| 9018906084 | 90189-06084 | NUT |
| 9018906119 | 90189-06119 | New Genuine Part |
| 9018906171 | 90189-06171 | GROMMET SCREW |
| 9359016014 | 93590-16014 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 86160-28140 | Speaker Assy, Front No.1 | Speaker ([01.1992 - ] FRONT (9201- )) |
| 86160-28150 | Speaker Assy, Front No.1 | Speaker ([01.1992 - ] FRONT (9201- )) |
| 86160-28160-B0 | Speaker Assy, Front No.1 | Speaker ([01.1992 - ] FRONT (9201- )) |
| 86160-28160-E1 | Speaker Assy, Front No.1 | Speaker ([01.1992 - ] FRONT (9201- )) |
| 86160-28170-B0 | Speaker Assy, Front No.1 | Speaker ([01.1992 - ] FRONT (9201- )) |
| 86160-28170-E1 | Speaker Assy, Front No.1 | Speaker ([01.1992 - ] FRONT (9201- )) |
| 86160-28440 | Speaker Assy, Front No.1 | Speaker ([01.1992 - ] FRONT (9201- )) |
| 86160-28450 | Speaker Assy, Front No.1 | Speaker ([01.1992 - ] FRONT (9201- )) |
| 90159-60081 | SCREW | Speaker ([01.1992 - ] FRONT (9201- )) |
| 90159-60303 | SCREW | Speaker ([01.1992 - ] FRONT (9201- )) |
| 90189-06084 | NUT | Speaker ([01.1992 - ] FRONT (9201- )) |
| 90189-06119 | New Genuine Part | Speaker ([01.1992 - ] FRONT (9201- )) |
| 90189-06171 | GROMMET SCREW | Speaker ([01.1992 - ] FRONT (9201- )) |
| 93590-16014 | New Genuine Part | Speaker ([01.1992 - ] FRONT (9201- )) |
