TCR11

Toyota ESTIMA-EMINA-LUCIDA · 1990 · 5,873 parts · 228 categories
TCR11 ×

← Back to categories

5,873 items

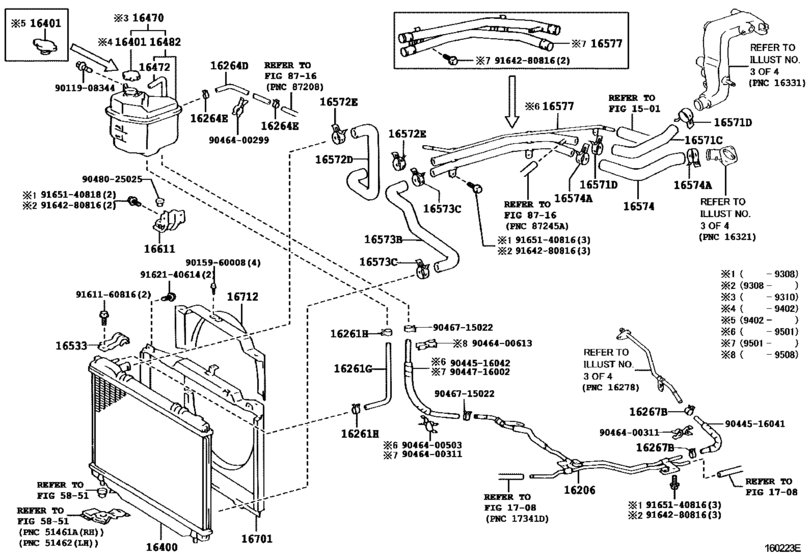

Radiator & Water Outlet ([01.1992 - 01.1996] (9201-9601)2TZFE) 77
#OEMPart name
16206 16206-76020 Pipe Sub-Assy, Water By-Pass
16261 16261-76060 Hose, Water By-Pass, No.1
16261 90467-15022 Clip Or Clamp(For Ventilation Hose)
16264 90445-16044 Hose, Water By-Pass, No.2
16361 16361-76060 Fan
16381 16381-76040 Bar, Fan Belt Adjusting
16381 16381-76060 Bar, Fan Belt Adjusting
16381 16381-76061 Bar, Fan Belt Adjusting
16385 16385-76020 Slider, Fan Belt Adjusting
16385 16385-76030 Slider, Fan Belt Adjusting
16400 16400-76062 Radiator Assy
16400 16400-76170 Radiator Assy
16401 16401-76021 Cap Sub-Assy, Radiator
16472 85338-76020 Hose, Breather
16472 90445-12078 Hose(For Radiator Breather)
16482 16480-76011 Tank Sub-Assy, Radiator Reserve
16482 16480-76012 Tank Sub-Assy, Radiator Reserve
16482 16480-76013 Tank Sub-Assy, Radiator Reserve
16533 16505-76011 Support, Radiator, Upper
16571 16571-76031 Hose, Radiator, No.1
16571 90466-41001 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90466-41008 Clamp, Hose(For Radiator Hose)
16571 90467-41001 Clip, Radiator Hose, No.1
16571 90467-41002 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90467-41009 Clip, Radiator Hose, No.1
16571 90467-42001 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-76022 Hose, Radiator, No.2
16573 16573-76030 Hose, Radiator, No.3
16573 90467-41007 Clamp Or Clip, Hose(For Radiator Inlet)
16574 16574-76011 Hose, Radiator, No.4
16577 16577-76070 Pipe, Radiator, No.7
16611 16611-76010 Bracket, Radiator Reserve Tank
16611 16611-76011 Bracket, Radiator Reserve Tank
16701 16711-76090 Shroud Sub-Assy, Fan
16701 16711-76110 Shroud Sub-Assy, Fan
16712 16712-76040 Shroud, Fan, No.2
16712 16712-76041 Shroud, Fan, No.2
16908 16908-76012 Housing Sub-Assy, Equipment Drive
16982 16982-76011 Insulator, Equipment Drive Housing, No.1
16982 16982-76020 Insulator, Equipment Drive Housing, No.1
16983 16983-76012 Insulator, Equipment Drive Housing, No.2
16984 16984-76010 Stay, Equipment Drive Housing, No.1
16985 16985-76011 Stay, Equipment Drive Housing, No.2
16986 16986-76012 Stay, Equipment Drive Housing, No.3
16986 16986-76050 Stay, Equipment Drive Housing, No.3
16987 16987-76010 Stay, Equipment Drive Housing, No.4
16988 16988-76010 Stay, Equipment Drive Housing, No.5
16991 16991-76020 Pulley, Equipment Drive
16991 16991-76021 Pulley, Equipment Drive
9011908344 90119-08344 New Genuine Part
9011908735 90119-08735 New Genuine Part
9015960008 90159-60008 SCREW
9017906080 90179-06080 NUT
9017910015 90179-10015 NUT
9017910033 90179-10033 Nut (For Front Wiper Arm Setting)
9017910114 90179-10114 New Genuine Part
9020110180 90201-10180 Washer, Plate(For Shift Lever Sub-Assy)
9020110320 90201-10320 Retainer, Rear Shock Absober Cushion
9044516041 90445-16041 HOSE
9044516042 90445-16042 New Genuine Part
9044716002 90447-16002 New Genuine Part
9046400299 90464-00299 New Genuine Part
9046400311 90464-00311 New Genuine Part
9046400503 90464-00503 New Genuine Part
9046400613 90464-00613 New Genuine Part
9048025025 90480-25025 Grommet, Radiator Reserve Tank Hose
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9162140614 91621-40614 BOLT
9164280816 91642-80816 Bolt
9164280816 91641-K0816 BOLT WWASHER
9164280820 91642-80820 Bolt(for Transaxle & Engine Setting)
9164280820 91641-H0820 Bolt
9165140816 91651-40816 BOLT
9165140818 91651-40818 BOLT, W-WASHER
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
