| 88606-28030 |
Diaphragm Sub-Assy, Cooler |

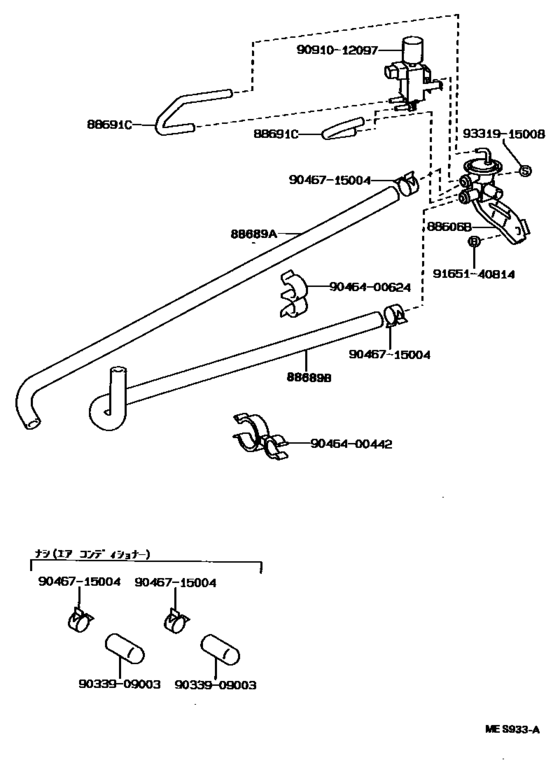

Heating & Air Conditioning - Vacuum Piping ([01.1992 - 08.1996] COOLER IDLE UP (9201-9608)TCR1#,2#) |
| 88689-28010 |
Hose, Cooler Vacuum No.1 |
Heating & Air Conditioning - Vacuum Piping ([01.1992 - 08.1996] COOLER IDLE UP (9201-9608)TCR1#,2#) |
| 88689-28020 |
Hose, Cooler Vacuum No.1 |
Heating & Air Conditioning - Vacuum Piping ([01.1992 - 08.1996] COOLER IDLE UP (9201-9608)TCR1#,2#) |
| 88689-28030 |
Hose, Cooler Vacuum No.1 |
Heating & Air Conditioning - Vacuum Piping ([01.1992 - 08.1996] COOLER IDLE UP (9201-9608)TCR1#,2#) |
| 90080-11228 |
New Genuine Part |
Heating & Air Conditioning - Vacuum Piping ([01.1992 - 08.1996] COOLER IDLE UP (9201-9608)TCR1#,2#) |
| 90339-09003 |
Plug(For Vacuum Hose Union) |
Heating & Air Conditioning - Vacuum Piping ([01.1992 - 08.1996] COOLER IDLE UP (9201-9608)TCR1#,2#) |
| 90464-00442 |
New Genuine Part |
Heating & Air Conditioning - Vacuum Piping ([01.1992 - 08.1996] COOLER IDLE UP (9201-9608)TCR1#,2#) |
| 90464-00624 |
New Genuine Part |
Heating & Air Conditioning - Vacuum Piping ([01.1992 - 08.1996] COOLER IDLE UP (9201-9608)TCR1#,2#) |
| 90467-15004 |
Clip(For Ventilation Hose No.2) |
Heating & Air Conditioning - Vacuum Piping ([01.1992 - 08.1996] COOLER IDLE UP (9201-9608)TCR1#,2#) |
| 90910-12097 |
Valve, Vacuum Switching |
Heating & Air Conditioning - Vacuum Piping ([01.1992 - 08.1996] COOLER IDLE UP (9201-9608)TCR1#,2#) |
| 90999-92002 |
Air Hose (300 mm) |
Heating & Air Conditioning - Vacuum Piping ([01.1992 - 08.1996] COOLER IDLE UP (9201-9608)TCR1#,2#) |
| 91651-40814 |
BOLT |
Heating & Air Conditioning - Vacuum Piping ([01.1992 - 08.1996] COOLER IDLE UP (9201-9608)TCR1#,2#) |
| 93319-15008 |
SCREW |
Heating & Air Conditioning - Vacuum Piping ([01.1992 - 08.1996] COOLER IDLE UP (9201-9608)TCR1#,2#) |
