Search › Model › TCR11

TCR11

Toyota ESTIMA-EMINA-LUCIDA · 1990 · 5,873 parts · 228 categories

5,873 items

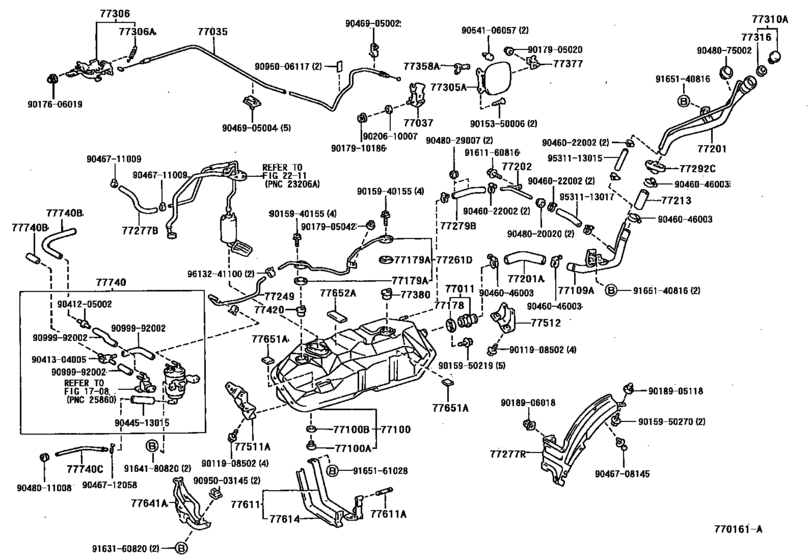

Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#) 90

#	OEM	Part name
77011	77011-28010	Pipe Sub-Assy, Fuel Tank Filler, Lower
77035	77035-28022	Cable Sub-Assy, Fuel Lid Lock Control
77037	77037-95D01	Lock Sub-Assy, Fuel Filler Opening Lid
77100	77001-28350	Tank Assy, Fuel
77100	90341-20004	Plug(For Fuel Tank)
77100	90430-20007	Gasket(For Fuel Tank)
77109	77109-28021	Pipe Sub-Assy, Fuel Tank Filler, Lower
77178	77178-20030	Gasket, Fuel Tank Filler Pipe, Lower
77179	77179-26010	Gasket, Fuel Tank Evap/vent Tube
77179	77179-26011	Gasket, Fuel Suction Tube Set, No.1
77201	77201-28120	Pipe Sub-Assy, Fuel Tank Inlet
77201	77217-28060	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77202	77203-28090	Tube Sub-Assy, Breather
77213	77213-28020	Hose, Fuel Tank Sub Inlet
77249	77249-28080	Hose, Fuel Emission
77261	77026-28080	Tube, Fuel Tank To Canister
77277	90447-12081	Hose, Fuel
77277	77277-95D00	Protector, Fuel Tank Filler Pipe
77279	77279-28040	Hose, Fuel, No.2 (For Return Tube, No.3)
77292	77292-95D01	Shield, Fuel Tank Filler Pipe, No.2
77305	77305-95D01	Lid Sub-Assy, Fuel Filler Opening
77306	77306-28021	Lever Sub-Assy, Fuel Lid Lock Open
77306	90506-09004	Spring, Tension(For Luggage Door Lock Open Lever)
77310	77310-16011	Cap Assy, Fuel Tank
77310	77310-12140	Cap Assy, Fuel Tank
77316	77316-16010	Gasket (For Fuel Tank Cap)
77358	77358-28020	Stopper, Fuel Filler Opening Lid
77377	77377-20040	Retainer, Fuel Filler Opening Lid Lock
77380	77380-26010	Valve Assy, Fuel Cut Off
77420	77420-26010	Valve Assy, Fuel Cut Off, No.2
77511	77511-28081	Bracket, Fuel Tank
77512	77512-28011	Bracket, Fuel Tank, Rear
77611	77601-28060	Band, Fuel Tank
77611	77629-25010	Pin (For Fuel Tank Band)
77614	77681-28030	Seat, Fuel Tank Band
77641	77641-28051	Protector, Fuel Tank, No.1
77651	77651-28030	Cushion, Fuel Tank, No.1
77652	77652-28010	Cushion, Fuel Tank, No.2
77740	77740-28121	Canister Assy, Charcoal
77740	77740-28160	Canister Assy, Charcoal
77740	90999-92002	Air Hose (300 mm)
77740	90441-08004	Hose, Fuel, No.3(For Charcoal Canister)
77740	90441-08007	Hose, Fuel, No.3(For Charcoal Canister)
9011908502	90119-08502	New Genuine Part
9015350006	90153-50006	New Genuine Part
9015940155	90159-40155	SCREW WWASHER
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9015950270	90159-50270	SCREW WWASHER
9017606019	90176-06019	Nut (For Rear Wiper Arm Setting)
9017905020	90179-05020	NUT
9017905020	90179-05011	NUT
9017905042	90179-05042	NUT
9017910186	90179-10186	New Genuine Part
9018905118	90189-05118	New Genuine Part
9018906018	90189-06018	GROMMET
9020610007	90206-10007	New Genuine Part
9041205002	90412-05002	Way, 2(For Fuel Expansion Tank)
9041304005	90413-04005	Way, 3, No.1 (For Front Drive Shift)
9044513015	90445-13015	New Genuine Part
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046046003	90460-46003	Clamp (For Fuel Filler Pipe)
9046046003	90460-46005	Clamp (For Fuel Filler Pipe)
9046708145	90467-08145	CLIP
9046711009	90467-11009	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009	96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)
9046712058	90467-12058	Clamp Or Clip(For Radiator Reserve Tank Hose)
9046905002	90469-05002	New Genuine Part
9046905004	90469-05004	New Genuine Part
9048011008	90480-11008	New Genuine Part
9048020020	90480-20020	New Genuine Part
9048029007	90480-29007	New Genuine Part
9048075002	90480-75002	Shield, Fuel Tank Inlet Pipe
9054106057	90541-06057	Cushion(For Back Door Panel)
9054106057	90541-06061	Cushion(For Back Door Panel)
9095003145	90950-03145	New Genuine Part
9095006117	90950-06117	Plug (For Roll Over Garnish)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9163160820	91631-60820	New Genuine Part
9163160820	91631-B0820	BOLT WWASHER
9164180820	91641-80820	Bolt(For Transaxle & Engine Setting)
9164180820	91641-H0820	Bolt
9165140816	91651-40816	BOLT
9165161028	91651-61028	New Genuine Part
9531113015	95311-13015	Hose, Fuel, No.1(For Fuel Tank)
9531113017	95311-13017	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
9613241100	96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100	96132-51100	Clip (For Hose)

OEM	Part name	Category
77001-28350	Tank Assy, Fuel	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77011-28010	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77026-28080	Tube, Fuel Tank To Canister	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77035-28022	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77037-95D01	Lock Sub-Assy, Fuel Filler Opening Lid	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77109-28021	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77178-20030	Gasket, Fuel Tank Filler Pipe, Lower	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77179-26010	Gasket, Fuel Tank Evap/vent Tube	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77179-26011	Gasket, Fuel Suction Tube Set, No.1	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77201-28120	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77203-28090	Tube Sub-Assy, Breather	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77213-28020	Hose, Fuel Tank Sub Inlet	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77217-28060	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77249-28080	Hose, Fuel Emission	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77277-95D00	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77279-28040	Hose, Fuel, No.2 (For Return Tube, No.3)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77292-95D01	Shield, Fuel Tank Filler Pipe, No.2	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77305-95D01	Lid Sub-Assy, Fuel Filler Opening	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77306-28021	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77310-12140	Cap Assy, Fuel Tank	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77310-16011	Cap Assy, Fuel Tank	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77316-16010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77358-28020	Stopper, Fuel Filler Opening Lid	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77377-20040	Retainer, Fuel Filler Opening Lid Lock	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77380-26010	Valve Assy, Fuel Cut Off	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77420-26010	Valve Assy, Fuel Cut Off, No.2	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77511-28081	Bracket, Fuel Tank	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77512-28011	Bracket, Fuel Tank, Rear	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77601-28060	Band, Fuel Tank	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77629-25010	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77641-28051	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77651-28030	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77652-28010	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77681-28030	Seat, Fuel Tank Band	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77740-28121	Canister Assy, Charcoal	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
77740-28160	Canister Assy, Charcoal	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90119-08502	New Genuine Part	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90153-50006	New Genuine Part	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90159-40155	SCREW WWASHER	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90159-50219	BOLT	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90159-50270	SCREW WWASHER	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90159-A0057	New Genuine Part	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90176-06019	Nut (For Rear Wiper Arm Setting)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90179-05011	NUT	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90179-05020	NUT	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90179-05042	NUT	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90179-10186	New Genuine Part	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90189-05118	New Genuine Part	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90189-06018	GROMMET	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90206-10007	New Genuine Part	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90341-20004	Plug(For Fuel Tank)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90412-05002	Way, 2(For Fuel Expansion Tank)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90413-04005	Way, 3, No.1 (For Front Drive Shift)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90430-20007	Gasket(For Fuel Tank)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90441-08004	Hose, Fuel, No.3(For Charcoal Canister)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90441-08007	Hose, Fuel, No.3(For Charcoal Canister)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90445-13015	New Genuine Part	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90447-12081	Hose, Fuel	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90460-22001	CLAMP	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90460-22002	CLAMP	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90460-46003	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90467-08145	CLIP	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90467-11009	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90467-12058	Clamp Or Clip(For Radiator Reserve Tank Hose)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90469-05002	New Genuine Part	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90469-05004	New Genuine Part	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90480-11008	New Genuine Part	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90480-20020	New Genuine Part	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90480-29007	New Genuine Part	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90480-75002	Shield, Fuel Tank Inlet Pipe	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90506-09004	Spring, Tension(For Luggage Door Lock Open Lever)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90541-06057	Cushion(For Back Door Panel)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90541-06061	Cushion(For Back Door Panel)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90950-03145	New Genuine Part	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90950-06117	Plug (For Roll Over Garnish)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
90999-92002	Air Hose (300 mm)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
91611-B0816	Bolt	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
91631-60820	New Genuine Part	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
91631-B0820	BOLT WWASHER	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
91641-80820	Bolt(For Transaxle & Engine Setting)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
91641-H0820	Bolt	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
91651-40816	BOLT	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
91651-61028	New Genuine Part	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
95311-13015	Hose, Fuel, No.1(For Fuel Tank)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
95311-13017	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)
96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)	Fuel Tank & Tube ([08.1996 - ] (9608- )TCR1#,2#)

Source: Public OEM parts-catalog data
Variants: 1 / 5
Category: 228
Collected: 2026-08-03
