Search › Model › TCR11

TCR11

Toyota ESTIMA-EMINA-LUCIDA · 1990 · 5,873 parts · 228 categories

5,873 items

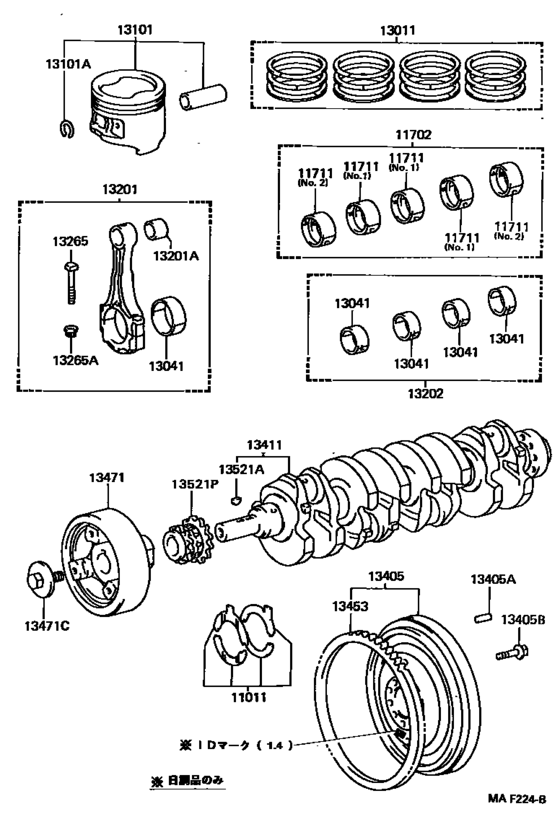

Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE) 44

#	OEM	Part name
11011	11011-75010	Washer Set, Crankshaft Thrust
11702	11704-75020	Bearing Set, Crankshaft
11702	11704-75022	Bearing Set, Crankshaft
11711	11071-75020-01	Bearing, Crankshaft
11711	11071-75022-01	Bearing, Crankshaft
11711	11071-75020-02	Bearing, Crankshaft
11711	11071-75022-02	Bearing, Crankshaft
11711	11071-75020-03	Bearing, Crankshaft
11711	11071-75022-03	Bearing, Crankshaft
11711	11701-75020-01	Bearing, Crankshaft
11711	11701-75022-01	Bearing, Crankshaft
11711	11701-75020-02	Bearing, Crankshaft
11711	11701-75022-02	Bearing, Crankshaft
11711	11701-75020-03	Bearing, Crankshaft
11711	11701-75022-03	Bearing, Crankshaft
13011	13011-76050	Ring Set, Piston
13011	13013-76050	Ring Set, Piston
13041	13041-75020-04	Bearing, Connecting Rod
13041	13041-75022-04	Bearing, Connecting Rod
13041	13041-75020-05	Bearing, Connecting Rod
13041	13041-75022-05	Bearing, Connecting Rod
13041	13041-75020-06	Bearing, Connecting Rod
13041	13041-75022-06	Bearing, Connecting Rod
13041	13041-75021-04	Bearing, Connecting Rod
13041	13041-75021-05	Bearing, Connecting Rod
13041	13041-75021-06	Bearing, Connecting Rod
13101	13101-76041	Piston Sub-Assy, W/pin
13101	13101-76060	Piston Sub-Assy, W/pin
13101	13103-76041	Piston Sub-Assy, W/pin
13101	13103-76060	Piston Sub-Assy, W/pin
13101	90521-28003	Ring, Hole Snap(For Piston Pin)
13201	13201-79167	Rod Sub-Assy, Connecting
13201	13201-79565	Rod Sub-Assy, Connecting
13201	90999-73129	Bush(For Connecting Rod Small End)
13202	13204-75020	Bearing Set, Connecting Rod
13202	13204-75022	Bearing Set, Connecting Rod
13202	13204-75021	Bearing Set, Connecting Rod
13265	13265-75030	Bolt, Connecting Rod
13265	90179-09009	Nut, Hexagon(For Connecting Rod Bolt)
13411	13411-75900	Crankshaft
13471	13408-76012	Pulley, Crankshaft
13471	90105-16041	Bolt(For Crankshaft Pulley Set)
13521	90280-05005	Key(For Oil Pump Drive Spline)
13521	13521-76020	Pulley, Crankshaft Timing

OEM	Part name	Category
11011-75010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
11071-75020-01	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
11071-75020-02	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
11071-75020-03	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
11071-75022-01	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
11071-75022-02	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
11071-75022-03	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
11701-75020-01	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
11701-75020-02	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
11701-75020-03	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
11701-75022-01	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
11701-75022-02	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
11701-75022-03	Bearing, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
11704-75020	Bearing Set, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
11704-75022	Bearing Set, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13011-76050	Ring Set, Piston	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13013-76050	Ring Set, Piston	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13041-75020-04	Bearing, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13041-75020-05	Bearing, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13041-75020-06	Bearing, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13041-75021-04	Bearing, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13041-75021-05	Bearing, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13041-75021-06	Bearing, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13041-75022-04	Bearing, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13041-75022-05	Bearing, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13041-75022-06	Bearing, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13101-76041	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13101-76060	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13103-76041	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13103-76060	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13201-79167	Rod Sub-Assy, Connecting	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13201-79565	Rod Sub-Assy, Connecting	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13204-75020	Bearing Set, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13204-75021	Bearing Set, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13204-75022	Bearing Set, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13265-75030	Bolt, Connecting Rod	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13408-76012	Pulley, Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13411-75900	Crankshaft	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
13521-76020	Pulley, Crankshaft Timing	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
90105-16041	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
90179-09009	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
90280-05005	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
90521-28003	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)
90999-73129	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([01.1992 - ] (9201- )2TZFE)

Source: Public OEM parts-catalog data
Variants: 1 / 5
Category: 228
Collected: 2026-08-03
