Search › Model › TCR11

TCR11

Toyota ESTIMA-EMINA-LUCIDA · 1990 · 5,873 parts · 228 categories

5,873 items

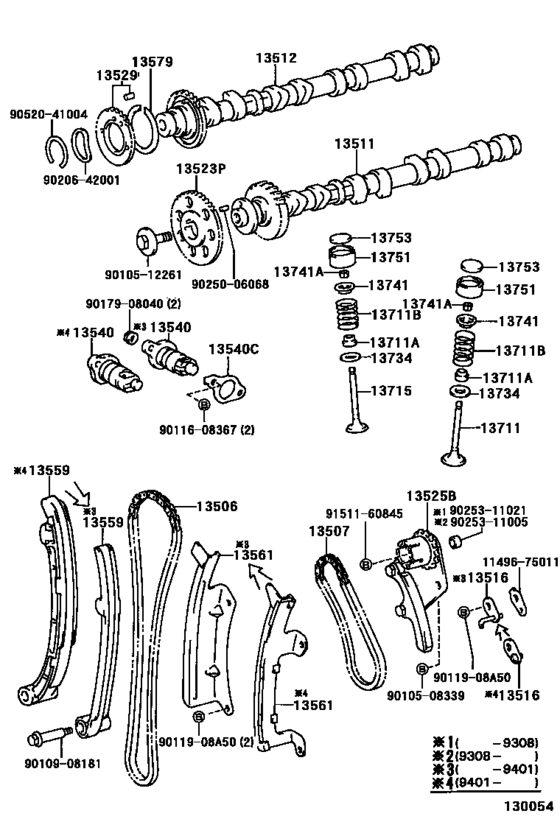

Camshaft & Valve ([01.1992 - ] (9201- )2TZFE) 61

#	OEM	Part name
13506	13506-75010	Chain Sub-Assy
13507	13507-76010	Chain Sub-Assy, No.2
13511	13501-76050	Camshaft
13511	13501-76900	Camshaft
13512	13502-76030	Camshaft, No.2
13512	13502-76900	Camshaft, No.2
13516	13516-76010	Jet, Oil
13523	13523-75010	Gear Or Sprocket, Camshaft Timing
13525	13525-76030	Gear, Idle, No.1
13529	13529-74900	Gear, Camshaft Sub
13540	13540-75020	Tensioner Assy, Chain, No.1
13540	13552-75010	Gasket(For Chain Tensioner)
13559	13559-76010	Slipper, Chain Tensioner
13561	13561-76020	Damper, Chain Vibration, No.1
13579	13579-74010	Washer, Camshaft Timing Gear Bolt
13711	13711-76040	Valve, Intake
13711	13711-76020	Valve, Intake
13711	90913-02085	Seal Or Ring, O(For Valve Stem Oil)
13711	90913-02122	Seal Or Ring, O(For Valve Stem Oil)
13711	90913-02090	Seal Or Ring, O(For Valve Stem Oil)
13711	90501-31017	Spring, Compression(For Inner)
13711	90501-36002	Spring, Compression(For Inner)
13715	13715-75050	Valve, Exhaust
13715	13715-76030	Valve, Exhaust
13734	90201-18015	Washer, Plate(For Valve Spring Seat)
13741	13741-50020	Retainer, Valve Spring
13741	90913-03021	Seal Or Ring, O(For Valve Stem Oil)
13751	13751-74020	Lifter, Valve
13753	13753-74010	Shim, Valve Adjusting
13753	13753-74030	Shim, Valve Adjusting
13753	13753-74050	Shim, Valve Adjusting
13753	13753-74070	Shim, Valve Adjusting
13753	13753-74090	Shim, Valve Adjusting
13753	13753-74110	Shim, Valve Adjusting
13753	13753-74130	Shim, Valve Adjusting
13753	13753-74150	Shim, Valve Adjusting
13753	13753-74170	Shim, Valve Adjusting
13753	13753-74190	Shim, Valve Adjusting
13753	13753-74210	Shim, Valve Adjusting
13753	13753-74230	Shim, Valve Adjusting
13753	13753-74250	Shim, Valve Adjusting
13753	13753-74270	Shim, Valve Adjusting
13753	13753-74290	Shim, Valve Adjusting
13753	13753-74310	Shim, Valve Adjusting
13753	13753-74330	Shim, Valve Adjusting
9011908	90119-08A50	New Genuine Part
9011908	91641-80818	BOLT WWASHER
1149675011	11496-75011	Gasket, Oil Hole Cover Plate
9010508339	90105-08339	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9010508339	91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9010512261	90105-12261	New Genuine Part
9010908181	90109-08181	BOLT
9011608367	90116-08367	New Genuine Part
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9020642001	90206-42001	Washer, Wave(For Camshaft Sub Gear)
9025006068	90250-06068	Pin, Straight
9025311005	90253-11005	Pin, Ring(For Camshaft Bearing Cap Setting)
9025311021	90253-11021	Pin, Ring
9052041004	90520-41004	Ring, Shaft Snap(For Camshaft Sub Gear)
9151160845	91511-60845	Bolt (For Transfer Stiffener Plate)
9151160845	91511-B0845	Bolt

OEM	Part name	Category
11496-75011	Gasket, Oil Hole Cover Plate	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13501-76050	Camshaft	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13501-76900	Camshaft	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13502-76030	Camshaft, No.2	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13502-76900	Camshaft, No.2	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13506-75010	Chain Sub-Assy	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13507-76010	Chain Sub-Assy, No.2	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13516-76010	Jet, Oil	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13523-75010	Gear Or Sprocket, Camshaft Timing	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13525-76030	Gear, Idle, No.1	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13529-74900	Gear, Camshaft Sub	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13540-75020	Tensioner Assy, Chain, No.1	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13552-75010	Gasket(For Chain Tensioner)	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13559-76010	Slipper, Chain Tensioner	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13561-76020	Damper, Chain Vibration, No.1	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13579-74010	Washer, Camshaft Timing Gear Bolt	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13711-76020	Valve, Intake	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13711-76040	Valve, Intake	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13715-75050	Valve, Exhaust	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13715-76030	Valve, Exhaust	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13741-50020	Retainer, Valve Spring	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13751-74020	Lifter, Valve	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13753-74010	Shim, Valve Adjusting	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13753-74030	Shim, Valve Adjusting	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13753-74050	Shim, Valve Adjusting	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13753-74070	Shim, Valve Adjusting	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13753-74090	Shim, Valve Adjusting	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13753-74110	Shim, Valve Adjusting	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13753-74130	Shim, Valve Adjusting	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13753-74150	Shim, Valve Adjusting	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13753-74170	Shim, Valve Adjusting	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13753-74190	Shim, Valve Adjusting	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13753-74210	Shim, Valve Adjusting	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13753-74230	Shim, Valve Adjusting	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13753-74250	Shim, Valve Adjusting	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13753-74270	Shim, Valve Adjusting	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13753-74290	Shim, Valve Adjusting	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13753-74310	Shim, Valve Adjusting	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
13753-74330	Shim, Valve Adjusting	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90105-08339	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90105-12261	New Genuine Part	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90109-08181	BOLT	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90116-08367	New Genuine Part	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90119-08A50	New Genuine Part	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90179-08040	Nut, Cap(For Cylinder Head Cover)	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90201-18015	Washer, Plate(For Valve Spring Seat)	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90206-42001	Washer, Wave(For Camshaft Sub Gear)	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90250-06068	Pin, Straight	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90253-11005	Pin, Ring(For Camshaft Bearing Cap Setting)	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90253-11021	Pin, Ring	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90501-31017	Spring, Compression(For Inner)	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90501-36002	Spring, Compression(For Inner)	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90520-41004	Ring, Shaft Snap(For Camshaft Sub Gear)	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90913-02085	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90913-02090	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90913-02122	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
90913-03021	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
91511-60845	Bolt (For Transfer Stiffener Plate)	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
91511-B0845	Bolt	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
91641-80818	BOLT WWASHER	Camshaft & Valve ([01.1992 - ] (9201- )2TZFE)
