TCR11

Toyota ESTIMA-EMINA-LUCIDA · 1990 · 5,873 parts · 228 categories
TCR11 ×

← Back to categories

5,873 items

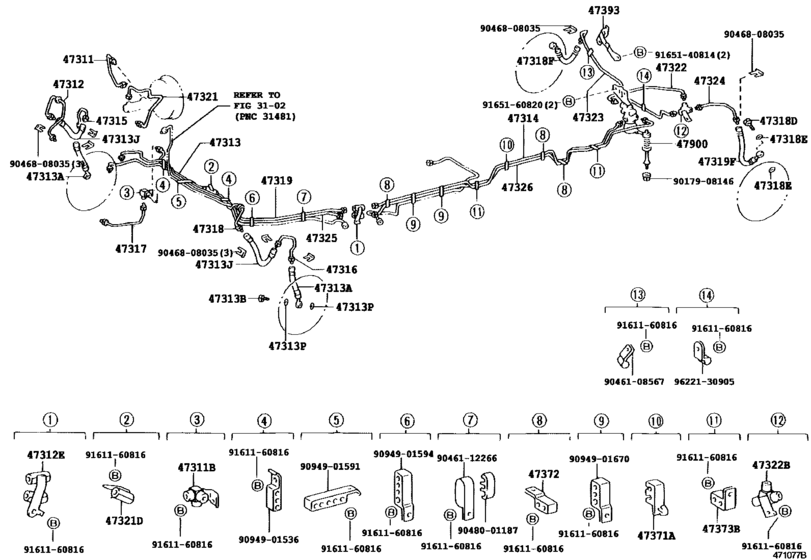

Brake Tube & Clamp ([01.1995 - 08.1996] ｱﾘ(ABS) (9501-9608)TCR11,21) 69
#OEMPart name
47311 47311-28270 Tube, Front Brake, No.1
47311 47311-28280 Tube, Front Brake, No.1
47311 47311-28281 Tube, Front Brake, No.1
47311 90413-10266 Way, No.1(For Front Brake Tube)
47311 90414-10042 Way, No.1(For Front Brake Tube)
47312 47312-28170 Tube, Front Brake, No.2
47312 47312-28250 Tube, Front Brake, No.2
47312 47312-28251 Tube, Front Brake, No.2
47312 90412-10191 Way, No.2(For Front Brake Tube)
47313 47313-28161 Tube, Front Brake, No.3
47313 47313-28250 Tube, Front Brake, No.3
47313 47313-28251 Tube, Front Brake, No.3
47313 90947-02604 Hose, Flexible, No.1(For Front)
47313 90947-02882 Hose, Flexible, No.1(For Front)
47313 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313 90947-02720 Hose, Flexible, No.2(For Front)
47313 90430-10074 Gasket(For Oil Pressure Regulator)
47314 47314-28190 Tube, Front Brake, No.4
47315 47315-28110 Tube, Front Brake, No.5
47316 47316-28030 Tube, Front Brake, No.6
47317 47317-28090 Tube, Front Brake, No.7
47318 47318-28031 Tube, Front Brake, No.8
47318 47318-28032 Tube, Front Brake, No.8
47318 90947-02712 Hose, Flexible(For Rear Brake Tube)
47318 90947-02713 Hose, Flexible(For Rear Brake Tube)
47319 47319-28050 Tube, Front Brake, No.9
47319 90947-02605 Hose, Flexible(For Rear Brake Tube)
47319 90947-02622 Hose, Flexible(For Rear Brake Tube)
47319 90947-02881 Hose, Flexible(For Rear Rh)
47321 47321-28271 Tube, Rear Brake, No.1
47321 47321-28420 Tube, Rear Brake, No.1
47321 47321-28421 Tube, Rear Brake, No.1
47321 90412-10006 Way(For Front Brake Tube)
47321 90412-10178 Way, No.1(For Front Brake Tube)
47322 47322-28160 Tube, Rear Brake, No.2
47322 90413-10246 Way, No.2(For Rear Brake Tube)
47323 47323-28240 Tube, Rear Brake, No.3
47324 47324-28140 Tube, Rear Brake, No.4
47325 47325-28220 Tube, Rear Brake, No.5
47325 47325-28221 Tube, Rear Brake, No.5
47326 47326-28120 Tube, Rear Brake, No.6
47326 47326-28210 Tube, Rear Brake, No.6
47371 47371-28010 Clamp, Brake Tube, No.1
47372 47372-25010 Clamp, Brake Tube, No.1
47372 90949-01594 Clamp, Brake Tube, No.2
47373 47373-25010 Clamp, Brake Tube, No.1
47373 90461-06112 Clamp, Brake Tube, No.6
47393 47393-28010 Insulator, Brake Tube Heat
47900 47900-28340 Valve Assy, Load Sensing W/spring
47900 47900-28341 Valve Assy, Load Sensing W/spring
47900 47900-28360 Valve Assy, Load Sensing W/spring
47900 47900-28361 Valve Assy, Load Sensing W/spring
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9046108567 90461-08567 New Genuine Part
9046112266 90461-12266 New Genuine Part
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9048001187 90480-01187 New Genuine Part
9094901536 90949-01536 Clamp, Brake Tube, No.15
9094901591 90949-01591 New Genuine Part
9094901670 90949-01670 New Genuine Part
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9622130905 96221-30905 CLAMP
