Search › Model › TCR11

TCR11

Toyota ESTIMA-EMINA-LUCIDA · 1990 · 5,873 parts · 228 categories

5,873 items

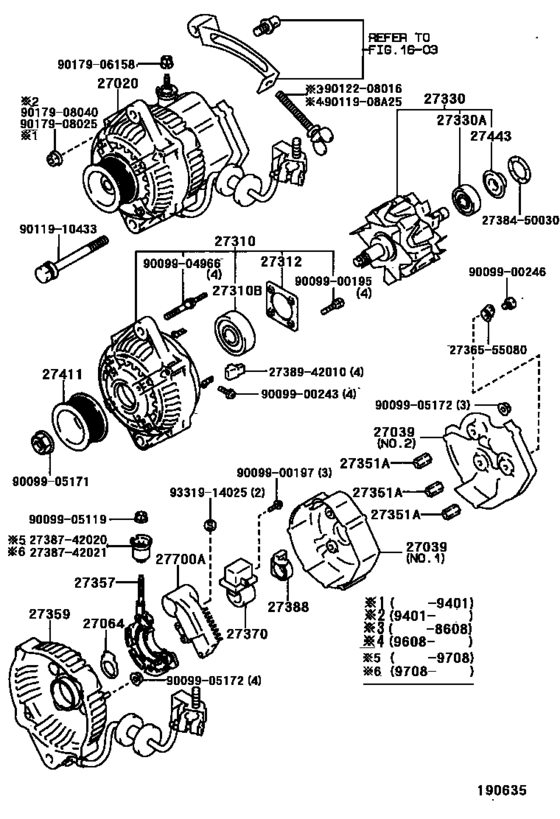

Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S) 40

#	OEM	Part name
27020	27060-76080	Alternator Assy
27039	27039-55080	Cover, Alternator Rear End
27039	27039-70470	Cover, Alternator Rear End
27039	27039-76010	Cover, Alternator Rear End
27064	27064-42010	Seal, Alternator Plate
27310	27310-76040	Frame Assy, Drive End, Alternator
27310	90099-10192	Bearing(For Alternator Drive End Frame)
27312	27312-42010	Plate, Bearing Retainer, Alternator
27330	27330-76030	Rotor Assy, Alternator
27330	27330-16390	Rotor Assy, Alternator
27330	90099-10140	Bearing(For Alternator Rotor)
27351	27351-16130	Bush(For Alternator Rectifier End Frame)
27351	27351-76040	Collar, Adjusting Alternator
27357	27357-55080	Holder, Alternator, W/rectifier
27359	27359-76040	Frame, Alternator Rectifier End
27370	27370-75060	Holder Assy, Alternator Brush
27388	27388-42010	Cover, Alternator Brush
27411	27411-50050	Pulley, Alternator
27443	27443-63020	Cover, Alternator Bearing
27700	27700-35040	Regulator Assy, Generator
9011908	90119-08A25	BOLT WWASHER
2736555080	27365-55080	Plate, Terminal
2738450030	27384-50030	Holder, Alternator Brush, A
2738742020	27387-42020	Insulator, Terminal
2738742021	27387-42021	Insulator, Terminal
2738942010	27389-42010	Insulator, Terminal
9009900195	90099-00195	New Genuine Part
9009900197	90099-00197	Screw
9009900243	90099-00243	SCREW WWASHER
9009900246	90099-00246	New Genuine Part
9009904966	90099-04966	Bearing(for Alternator Rotor)
9009905119	90099-05119	New Genuine Part
9009905171	90099-05171	Nut(For Alternator Pulley)
9009905172	90099-05172	New Genuine Part
9011910433	90119-10433	New Genuine Part
9012208016	90122-08016	New Genuine Part
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017908025	90179-08025	Nut, Cap(For Cylinder Head Cover)
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9331914025	93319-14025	Screw W Washer

OEM	Part name	Category
27039-55080	Cover, Alternator Rear End	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27039-70470	Cover, Alternator Rear End	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27039-76010	Cover, Alternator Rear End	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27060-76080	Alternator Assy	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27064-42010	Seal, Alternator Plate	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27310-76040	Frame Assy, Drive End, Alternator	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27312-42010	Plate, Bearing Retainer, Alternator	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27330-16390	Rotor Assy, Alternator	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27330-76030	Rotor Assy, Alternator	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27351-16130	Bush(For Alternator Rectifier End Frame)	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27351-76040	Collar, Adjusting Alternator	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27357-55080	Holder, Alternator, W/rectifier	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27359-76040	Frame, Alternator Rectifier End	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27365-55080	Plate, Terminal	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27370-75060	Holder Assy, Alternator Brush	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27384-50030	Holder, Alternator Brush, A	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27387-42020	Insulator, Terminal	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27387-42021	Insulator, Terminal	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27388-42010	Cover, Alternator Brush	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27389-42010	Insulator, Terminal	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27411-50050	Pulley, Alternator	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27443-63020	Cover, Alternator Bearing	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
27700-35040	Regulator Assy, Generator	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
90099-00195	New Genuine Part	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
90099-00197	Screw	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
90099-00243	SCREW WWASHER	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
90099-00246	New Genuine Part	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
90099-04966	Bearing(for Alternator Rotor)	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
90099-05119	New Genuine Part	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
90099-05171	Nut(For Alternator Pulley)	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
90099-05172	New Genuine Part	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
90099-10140	Bearing(For Alternator Rotor)	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
90099-10192	Bearing(For Alternator Drive End Frame)	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
90119-08A25	BOLT WWASHER	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
90119-10433	New Genuine Part	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
90122-08016	New Genuine Part	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
90179-08025	Nut, Cap(For Cylinder Head Cover)	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
90179-08040	Nut, Cap(For Cylinder Head Cover)	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)
93319-14025	Screw W Washer	Alternator ([01.1992 - ] 12V 70A (9201- )2TZFE..TCR10,20 ; (9201- )3CTE,2TZ FE..CXR10,20,TCR11,21..ELU,G,GLUX,S)

Source: Public OEM parts-catalog data
Variants: 1 / 5
Category: 228
Collected: 2026-08-03
