TCR10

Toyota ESTIMA-EMINA-LUCIDA · 1992 · 6,617 parts · 391 categories
TCR10 ×

← Back to categories

6,617 items

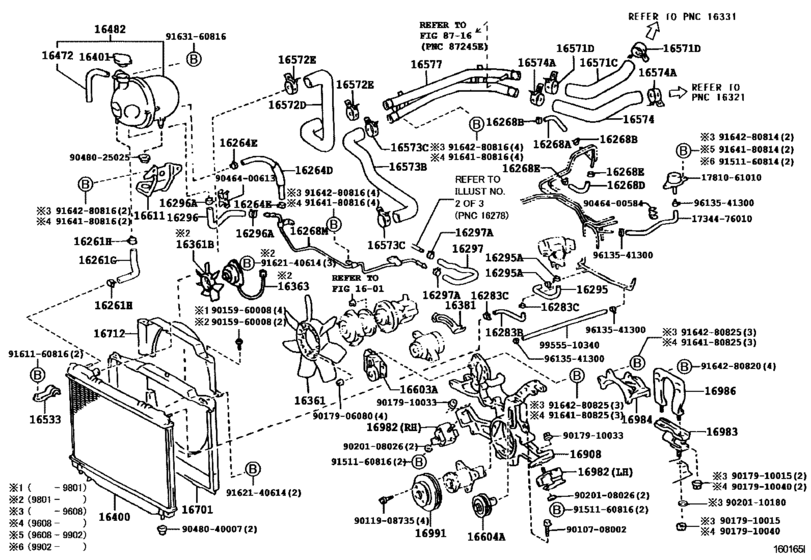

Radiator & Water Outlet ([01.1996 - ] (9601- )2TZFZE) 79
#OEMPart name
16261 16261-76040 Hose, Water By-Pass, No.1
16261 90467-15022 Clip Or Clamp(For Ventilation Hose)
16264 90445-16048 Hose, Water By-Pass, No.2
16268 17342-76010 Hose(For Water By-Pass Pipe)
16268 96135-41100 Clamp Or Clip, Hose(For Water By-Pass Pipe)
16268 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
16268 17343-76010 Hose(For Water By-Pass Pipe)
16268 96135-41300 Clamp Or Clip, Hose(For Water By-Pass Hose)
16268 96135-51300 Clamp, Hose
16268 16268-76061 Pipe, Water By-Pass, No.3
16283 16283-76010 Hose, Water By-Pass
16295 16295-76010 Hose, Water By-Pass, No.7
16296 16296-76010 Hose, Water By-Pass, No.8
16297 16297-76010 Hose, Water By-Pass, No.9
16361 16361-76060 Fan
16361 16361-46070 Fan
16363 16363-50021 Motor, Cooling Fan
16400 16400-76142 Radiator Assy
16401 16401-76021 Cap Sub-Assy, Radiator
16472 90445-12078 Hose(For Radiator Breather)
16482 16480-76013 Tank Sub-Assy, Radiator Reserve
16533 16505-76011 Support, Radiator, Upper
16533 16505-76040 Support, Radiator, Upper
16571 16571-76031 Hose, Radiator, No.1
16571 90466-41001 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90466-41008 Clamp, Hose(For Radiator Hose)
16571 90467-41002 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-76022 Hose, Radiator, No.2
16573 16573-76022 Hose, Radiator, No.3
16573 90467-41007 Clamp Or Clip, Hose(For Radiator Inlet)
16574 16574-76011 Hose, Radiator, No.4
16577 16577-76070 Pipe, Radiator, No.7
16603 16603-76010 Pulley Sub-Assy, Idler, No.1
16604 16604-76010 Spring(For Idler Pulley Tension)
16611 16611-76011 Bracket, Radiator Reserve Tank
16701 16711-76101 Shroud Sub-Assy, Fan
16712 16712-76051 Shroud, Fan, No.2
16908 16908-76020 Housing Sub-Assy, Equipment Drive
16982 16982-76031 Insulator, Equipment Drive Housing, No.1
16982 16982-76041 Insulator, Equipment Drive Housing, No.1
16983 16983-76020 Insulator, Equipment Drive Housing, No.2
16984 16984-76020 Stay, Equipment Drive Housing, No.1
16986 16986-76040 Stay, Equipment Drive Housing, No.3
16991 16991-76031 Pulley, Equipment Drive
1734476010 17344-76010 Hose, No.4(for Air Injection System)
1781061010 17810-61010 Filter Assy, Air
9010708002 90107-08002 New Genuine Part
9011908735 90119-08735 New Genuine Part
9015960008 90159-60008 SCREW
9017906080 90179-06080 NUT
9017910015 90179-10015 NUT
9017910033 90179-10033 Nut (For Front Wiper Arm Setting)
9017910040 90179-10040 New Genuine Part
9020108026 90201-08026 New Genuine Part
9020110180 90201-10180 Washer, Plate(For Shift Lever Sub-Assy)
9046400584 90464-00584 New Genuine Part
9046400613 90464-00613 New Genuine Part
9048025025 90480-25025 Grommet, Radiator Reserve Tank Hose
9048040007 90480-40007 Support, Radiator, Lower
9151160814 91511-60814 New Genuine Part
9151160814 91511-B0814 BOLT
9151160816 91511-60816 BOLT
9151160816 91511-B0816 BOLT
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9162140614 91621-40614 BOLT
9163160816 91631-60816 BOLT
9164180814 91641-80814 BOLTWWASHER
9164180816 91641-80816 BOLT W/WASHER
9164180825 91641-80825 BOLT WWASHER
9164280814 91642-80814 New Genuine Part
9164280814 91641-C0814 BOLT W-WASHER
9164280816 91642-80816 Bolt
9164280816 91641-K0816 BOLT WWASHER
9164280820 91642-80820 Bolt(for Transaxle & Engine Setting)
9164280820 91641-H0820 Bolt
9164280825 91642-80825 New Genuine Part
9955510340 99555-10340 Hose, Intake Manifold Water, No.1
9955510340 99555-10500 Hose, Water, No.1
