TCR10

Toyota ESTIMA-EMINA-LUCIDA · 1992 · 6,617 parts · 391 categories
TCR10 ×

← Back to categories

6,617 items

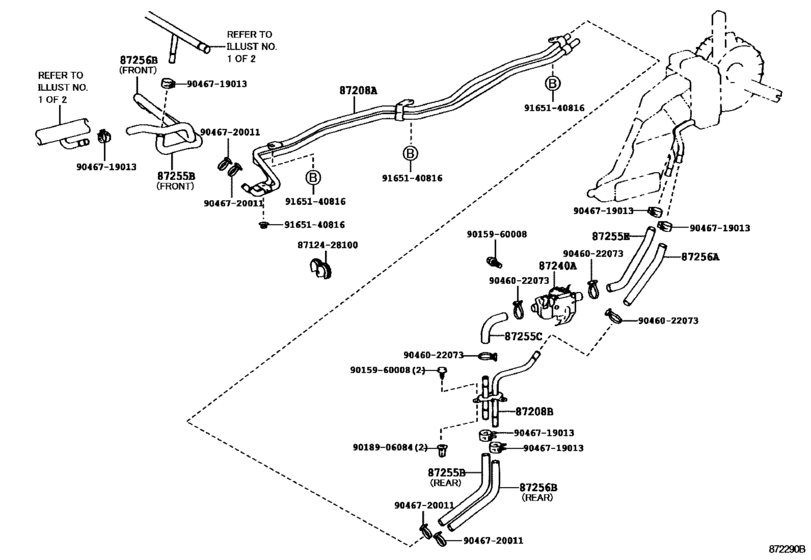

Heating & Air Conditioning - Water Piping ([01.1998 - ] ﾘﾔ ﾊﾟｲﾋﾟﾝｸﾞ (9801- )) 18
#OEMPart name
87208 87208-28660 Pipe Sub-Assy, Heater Water, A
87208 87208-28230 Pipe Sub-Assy, Heater Water, B
87240 87240-28050 Valve Assy, Rear Heater Water
87255 87245-28150 Hose, Rear Heater Water Inlet, B
87255 99556-20200 Hose, Water(For Lpg Regulator Outlet)
87255 87245-28140 Hose, Rear Heater Water Inlet, C
87255 87245-28890 Hose, Rear Heater Water Inlet, E(To Heater Unit)
87256 87245-28860 Hose, Rear Heater Water Outlet, B
87256 99556-20490 Hose, Heater Water, Inlet B
87256 99556-20500 Hose, Rear Heater Water Inlet, B
8712428100 87124-28100 Clamp, Heater
9015960008 90159-60008 SCREW
9018906084 90189-06084 NUT
9046022073 90460-22073 Clip(For Ventilation Hose No.2)
9046022073 90467-19022 Clip(For Ventilation Hose No.2)
9046719013 90467-19013 Clamp Or Clip(For Water By-Pass Hose No.4)
9046720011 90467-20011 Clamp Or Clip(For Water By-Pass Hose No.2)
9165140816 91651-40816 BOLT
