Search › Model › TC22

TC22

Nissan VANETTE · 1988 · 2,148 parts · 152 categories

2,148 items

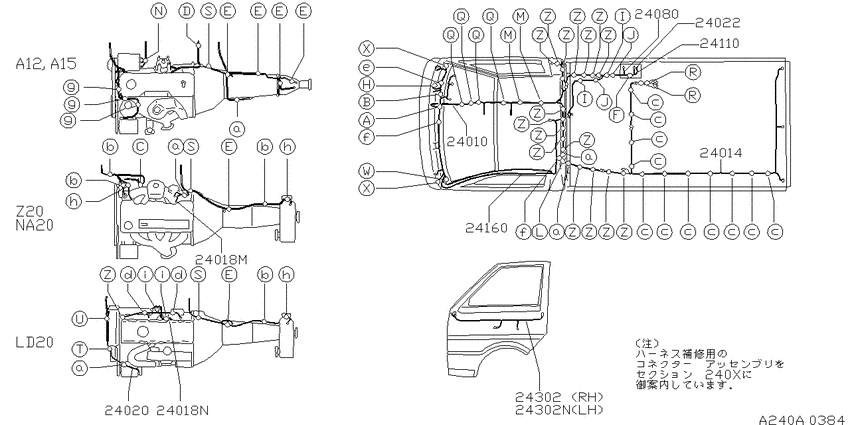

Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB) 25

#	OEM	Part name
24010	24010-G8500	Harness Assy-Main
24010	24010-G8501	Harness Assy-Main
24010	24010-G8512	Harness Assy-Main
24010	24010-G8515	Harness Assy-Main
24010	24010-G8563	Harness Assy-Main
24010	24010-G8510	Harness Assy-Main
24010	24010-G8511	Harness Assy-Main
24010	24010-G8514	Harness Assy-Main
24010	24010-G8517	Harness Assy-Main
24010	24010-G8565	Harness Assy-Main
24014	24014-G8500	Harness Assy-Body
24014	24014-G8560	Harness Assy-Body
24014	24014-G8300	Harness Assy-Body
24014	24014-G8360	Harness Assy-Body
24018	24072-18C00	Harness Assy-Engine Room Sub
24020	24076-G5500	Harness Assy-Alternator
24022	24022-G8300	Wire Assy-Fusible Link
24080	24080-G8501	Cable Assy-Battery Earth
24080	24080-G8500	Cable Assy-Battery Earth
24110	24110-G8501	Cable Assy-Battery To Starter Motor
24110	24110-G8511	Cable Assy-Battery To Starter Motor
24110	24110-G8500	Cable Assy-Battery To Starter Motor
24110	24110-G8510	Cable Assy-Battery To Starter Motor
24160	24060-G8300	Harness Assy-Room Lamp
24302	24125-G5300	Harness Assy-Door, Front

OEM	Part name	Category
24010-G8500	Harness Assy-Main	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24010-G8501	Harness Assy-Main	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24010-G8510	Harness Assy-Main	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24010-G8511	Harness Assy-Main	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24010-G8512	Harness Assy-Main	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24010-G8514	Harness Assy-Main	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24010-G8515	Harness Assy-Main	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24010-G8517	Harness Assy-Main	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24010-G8563	Harness Assy-Main	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24010-G8565	Harness Assy-Main	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24014-G8300	Harness Assy-Body	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24014-G8360	Harness Assy-Body	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24014-G8500	Harness Assy-Body	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24014-G8560	Harness Assy-Body	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24022-G8300	Wire Assy-Fusible Link	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24060-G8300	Harness Assy-Room Lamp	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24072-18C00	Harness Assy-Engine Room Sub	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24076-G5500	Harness Assy-Alternator	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24080-G8500	Cable Assy-Battery Earth	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24080-G8501	Cable Assy-Battery Earth	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24110-G8500	Cable Assy-Battery To Starter Motor	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24110-G8501	Cable Assy-Battery To Starter Motor	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24110-G8510	Cable Assy-Battery To Starter Motor	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24110-G8511	Cable Assy-Battery To Starter Motor	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)
24125-G5300	Harness Assy-Door, Front	Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB)

Source: Public OEM parts-catalog data
Variants: 2 / 19
Category: 152
Collected: 2026-07-27
