Search › Model › TC22

TC22

Nissan VANETTE · 1988 · 2,148 parts · 152 categories

2,148 items

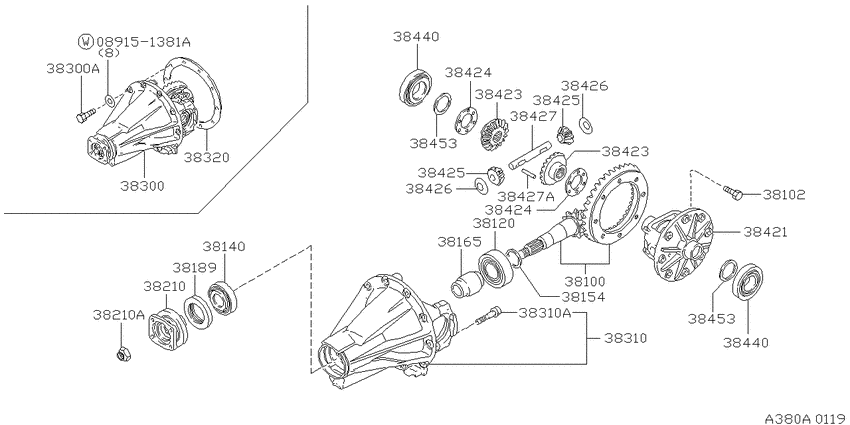

Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S) 70

#	OEM	Part name
38100	38100-V7100	Gear Set-Final Drive
38100	38100-V7200	Gear Set-Final Drive
38120	38120-06P00	Bearing-Drive Pinion, Rear
38120	38120-06P10	Bearing-Drive Pinion, Rear
38140	38140-61000	Bearing-Drive Pinion, Front
38154	38154-P6000	Washer-Adjust, Drive Pinion
38154	38154-P6001	Washer-Adjust, Drive Pinion
38154	38154-P6002	Washer-Adjust, Drive Pinion
38154	38154-P6003	Washer-Adjust, Drive Pinion
38154	38154-P6004	Washer-Adjust, Drive Pinion
38154	38154-P6005	Washer-Adjust, Drive Pinion
38154	38154-P6006	Washer-Adjust, Drive Pinion
38154	38154-P6007	Washer-Adjust, Drive Pinion
38154	38154-P6008	Washer-Adjust, Drive Pinion
38154	38154-P6009	Washer-Adjust, Drive Pinion
38154	38154-P6010	Washer-Adjust, Drive Pinion
38154	38154-P6011	Washer-Adjust, Drive Pinion
38154	38154-P6012	Washer-Adjust, Drive Pinion
38154	38154-P6013	Washer-Adjust, Drive Pinion
38154	38154-P6014	Washer-Adjust, Drive Pinion
38154	38154-P6015	Washer-Adjust, Drive Pinion
38154	38154-P6016	Washer-Adjust, Drive Pinion
38154	38154-P6017	Washer-Adjust, Drive Pinion
38154	38154-P6018	Washer-Adjust, Drive Pinion
38154	38154-P6019	Washer-Adjust, Drive Pinion
38154	38154-P6020	Washer-Adjust, Drive Pinion
38189	38189-P010A	Seal oil
38189	38189-P0115	Seal-Oil, Drive Pinion
38210	38210-V7000	Flange Assy-Companion
38210	38210-V7015	Flange Assy-Companion
38210	38216-U3000	Nut
38210	38216-U301A	Nut-Drive Pinion
38300	38300-V7518	Final Drive Assy
38300	38300-V7578	フアイナルドライブアツセンブリ-
38300	38300-V7579	Final Drive Assy
38300	38300-V7418	フアイナルドライブアツセンブリ-
38300	38300-V7478	Final Drive Assy
38300	38300-V7479	Final Drive Assy
38310	38310-V0201	Carrier Compl-Gear
38310	38310-V0215	Carrier Compl-Gear
38310	38315-U1500	Bolt-Bearing Cap
38320	38320-B3000	Gasket-Gear Carrier
38421	38421-V0200	Case-Differential
38421	38421-V0401	Case-Differential
38421	38421-G7027	Case Set-Differential
38423	38423-41W00	Gear-Side
38424	38424-41W00	Washer-Thrust, Side Gear
38424	38424-41W01	Washer-Thrust, Side Gear
38424	38424-41W02	Washer-Thrust, Side Gear
38424	38424-E3000	Washer-Thrust, Side Gear
38424	38424-E3001	Washer-Thrust, Side Gear
38424	38424-E3002	Washer-Thrust, Side Gear
38424	38424-E3003	Washer-Thrust, Side Gear
38425	38425-B4000	Pinion-Mate
38425	38425-C6000	Pinion-Mate
38425	38425-V5010	Pinion-Mate, Differential Bevel
38427	38427-41W00	Shaft-Pinion Mate
38427	38427-B4001	Shaft-Pinion Mate
38427	38428-P0100	Pin-Lock, Pinion Shaft
38453	38453-61200	Shim-Adjust, Side Bearing
38453	38453-61201	Shim-Adjust, Side Bearing
38453	38453-61202	Shim-Adjust, Side Bearing
38453	38453-61203	Shim-Adjust, Side Bearing
38453	38453-61204	Shim-Adjust, Side Bearing
38453	38453-61205	Shim-Adjust, Side Bearing
38453	38453-61206	Shim-Adjust, Side Bearing
38453	38454-61200	Shim-Adjust, Side Bearing
38453	38455-61200	Shim-Adjust, Side Bearing
38453	38456-61200	Shim-Adjust, Side Bearing
38453	38457-61200	Shim-Adjust, Side Bearing

OEM	Part name	Category
38100-V7100	Gear Set-Final Drive	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38100-V7200	Gear Set-Final Drive	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38120-06P00	Bearing-Drive Pinion, Rear	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38120-06P10	Bearing-Drive Pinion, Rear	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38140-61000	Bearing-Drive Pinion, Front	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6000	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6001	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6002	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6003	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6004	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6005	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6006	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6007	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6008	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6009	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6010	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6011	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6012	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6013	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6014	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6015	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6016	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6017	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6018	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6019	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38154-P6020	Washer-Adjust, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38189-P010A	Seal oil	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38189-P0115	Seal-Oil, Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38210-V7000	Flange Assy-Companion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38210-V7015	Flange Assy-Companion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38216-U3000	Nut	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38216-U301A	Nut-Drive Pinion	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38300-V7418	フアイナルドライブアツセンブリ-	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38300-V7478	Final Drive Assy	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38300-V7479	Final Drive Assy	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38300-V7518	Final Drive Assy	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38300-V7578	フアイナルドライブアツセンブリ-	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38300-V7579	Final Drive Assy	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38310-V0201	Carrier Compl-Gear	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38310-V0215	Carrier Compl-Gear	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38315-U1500	Bolt-Bearing Cap	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38320-B3000	Gasket-Gear Carrier	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38421-G7027	Case Set-Differential	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38421-V0200	Case-Differential	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38421-V0401	Case-Differential	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38423-41W00	Gear-Side	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38424-41W00	Washer-Thrust, Side Gear	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38424-41W01	Washer-Thrust, Side Gear	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38424-41W02	Washer-Thrust, Side Gear	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38424-E3000	Washer-Thrust, Side Gear	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38424-E3001	Washer-Thrust, Side Gear	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38424-E3002	Washer-Thrust, Side Gear	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38424-E3003	Washer-Thrust, Side Gear	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38425-B4000	Pinion-Mate	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38425-C6000	Pinion-Mate	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38425-V5010	Pinion-Mate, Differential Bevel	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38427-41W00	Shaft-Pinion Mate	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38427-B4001	Shaft-Pinion Mate	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38428-P0100	Pin-Lock, Pinion Shaft	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38453-61200	Shim-Adjust, Side Bearing	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38453-61201	Shim-Adjust, Side Bearing	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38453-61202	Shim-Adjust, Side Bearing	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38453-61203	Shim-Adjust, Side Bearing	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38453-61204	Shim-Adjust, Side Bearing	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38453-61205	Shim-Adjust, Side Bearing	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38453-61206	Shim-Adjust, Side Bearing	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38454-61200	Shim-Adjust, Side Bearing	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38455-61200	Shim-Adjust, Side Bearing	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38456-61200	Shim-Adjust, Side Bearing	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
38457-61200	Shim-Adjust, Side Bearing	Rear final drive (1988-11-01 ~ ; (HC)(H165); "T.SB.LD20 +FD.2WD.LD20 +A12S +A15S)
