| 01311-00035 |
WASHER-PLAIN |

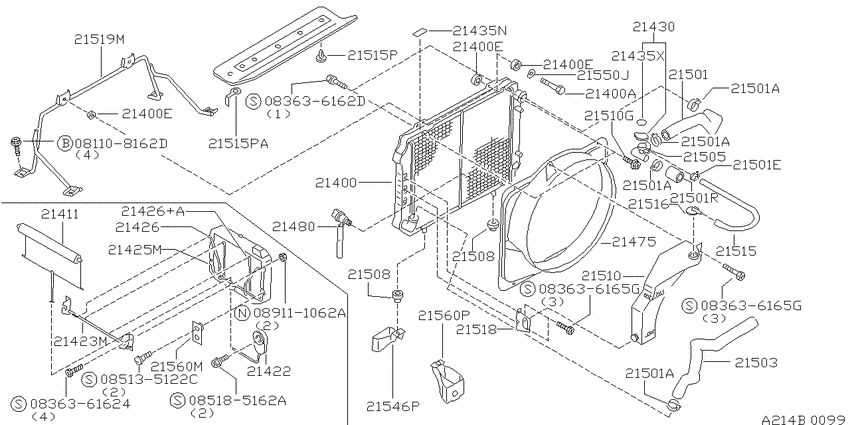

Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 01555-00291 |
CLAMP-HOSE |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 08110-8162D |
Bolt-hexagon |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 08360-6162D |
Screw |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 08363-61624 |
スクリユ-,マシン |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 08363-6162D |
スクリユ-,マシン |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 08513-5122C |
スクリユ-,タツピング |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 08518-5162A |
スクリユ-,タツピング |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 08911-1062A |
ナツト,ヘクサゴン |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21410-G8500 |
Radiator Assy |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21416-G0300 |
Bush-Rubber |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21421-G5401 |
Shutter Assy-Radiator |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21422-G5110 |
Reel Assy-Radiator Shutter |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21423-G8100 |
Bracket-Radiator Shutter |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21426-G5411 |
Bracket-Shutter Guide, Lower |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21427-G8100 |
Wire-Guide, Shutter Rh |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21428-G8100 |
Wire-Guide, Shutter Lh |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21430-7999C |
Cap Assy-Radiator |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21435-89910 |
Label-Caution, Radiator |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21435-89912 |
Label-Caution, Radiator |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21435-89915 |
Label-Caution Water |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21435-89945 |
Label-Caution Water |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21435-89955 |
Label-Caution, Radiator |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21435-89960 |
Label-Caution, Radiator |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21440-G5100 |
Cock-Water Drain |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21475-G5500 |
Shroud Assy |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21501-G5560 |
Hose-Radiator, Upper |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21502-G5500 |
Hose-Upper, Sub Radiator |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21508-01F00 |
Mounting Rubber-Radiator |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21510-G5561 |
Hose-Radiator, Upper |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21516-G5560 |
Connector-Radiator Hose |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21516-G5561 |
Connector-Radiator Hose |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21533-G8310 |
Rod Assy-Radiator Mounting |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21541-G5100 |
Bolt |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21710-G5511 |
Tank Assy-Reserve |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21723-01G01 |
Cap-Reservoir Tank |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 21745-G5401 |
Bracket Assy-Reserve |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
| 92119-25C01 |
Bracket-Condenser |
Radiator, shroud & fitting (1988-11-01 ~ ; LD20) |
