TC22

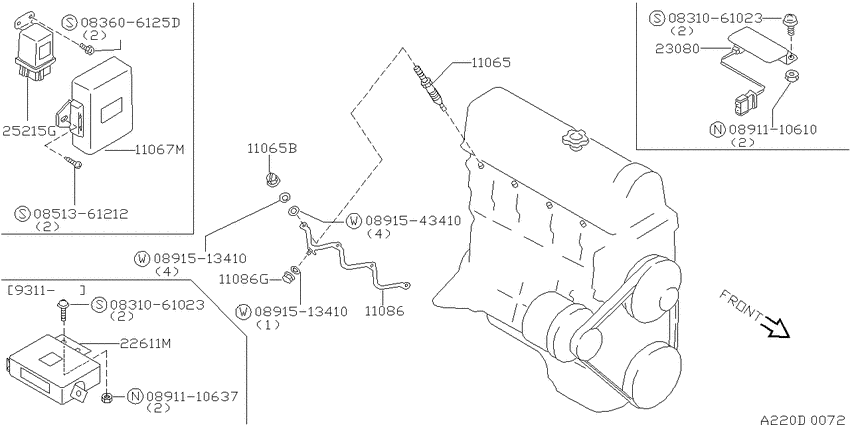

Ignition System (1988-11-01 ~ ; LD20) 11
| # | OEM | Part name |
|---|---|---|
| 11065 | 11065-G5501 | Plug-Glow |
| 11067 | 11067-G5500 | Timer Assy-Glow Plug |
| 11086 | 11086-G5501 | Cable Assy |
| 11086 | 11066-V7202 | Nut |
| 22611 | 23710-G8120 | Engine Control Module |
| 23080 | 23080-13C00 | Resistor-Pilot Lamp |
| 25215 | 25230-G5501 | Relay Assy-Glow Plug |
| 83606125 | 08360-6125D | スクリユ-,マシン |
| 831061023 | 08310-61023 | スクリユ-,マシン |
| 851361212 | 08513-61212 | SCREW |
| 891543410 | 08915-43410 | ワツシヤ-,プレ-ン |
| OEM | Part name | Category |
|---|---|---|
| 08310-61023 | スクリユ-,マシン | Ignition System (1988-11-01 ~ ; LD20) |
| 08360-6125D | スクリユ-,マシン | Ignition System (1988-11-01 ~ ; LD20) |
| 08513-61212 | SCREW | Ignition System (1988-11-01 ~ ; LD20) |
| 08915-43410 | ワツシヤ-,プレ-ン | Ignition System (1988-11-01 ~ ; LD20) |
| 11065-G5501 | Plug-Glow | Ignition System (1988-11-01 ~ ; LD20) |
| 11066-V7202 | Nut | Ignition System (1988-11-01 ~ ; LD20) |
| 11067-G5500 | Timer Assy-Glow Plug | Ignition System (1988-11-01 ~ ; LD20) |
| 11086-G5501 | Cable Assy | Ignition System (1988-11-01 ~ ; LD20) |
| 23080-13C00 | Resistor-Pilot Lamp | Ignition System (1988-11-01 ~ ; LD20) |
| 23710-G8120 | Engine Control Module | Ignition System (1988-11-01 ~ ; LD20) |
| 25230-G5501 | Relay Assy-Glow Plug | Ignition System (1988-11-01 ~ ; LD20) |
