TC22

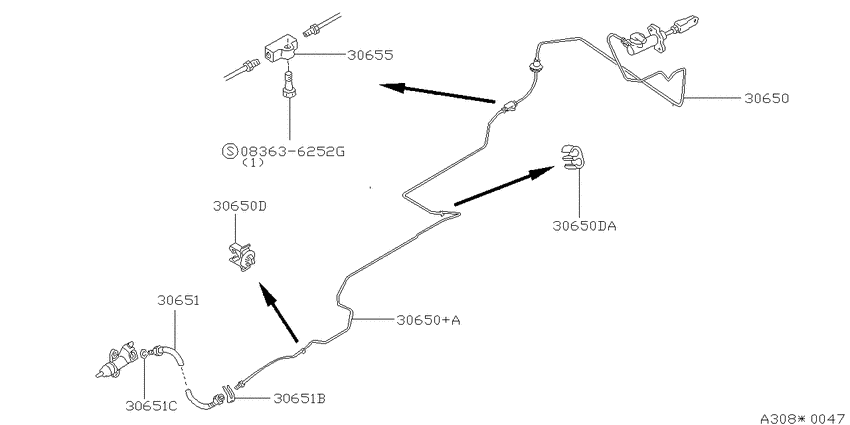

Clutch piping (1988-11-01 ~ ; A12S +A15S +Z20S +LD20 +NA20S) 6
| # | OEM | Part name |
|---|---|---|
| 30650 | 30850-G5401 | Tube Assy-Clutch |
| 30650 | 30852-G8500 | Tube Assy-Clutch |
| 30650 | 46271-01E03 | CLIP-TUBE,CLUTCH |
| 30650 | 46271-17C10 | Clip-Tube, Clutch |
| 30651 | 46211-01A42 | Hose Assy-Clutch |
| 30651 | 46206-2J000 | Spring-Lock |
| OEM | Part name | Category |
|---|---|---|
| 30850-G5401 | Tube Assy-Clutch | Clutch piping (1988-11-01 ~ ; A12S +A15S +Z20S +LD20 +NA20S) |
| 30852-G8500 | Tube Assy-Clutch | Clutch piping (1988-11-01 ~ ; A12S +A15S +Z20S +LD20 +NA20S) |
| 46206-2J000 | Spring-Lock | Clutch piping (1988-11-01 ~ ; A12S +A15S +Z20S +LD20 +NA20S) |
| 46211-01A42 | Hose Assy-Clutch | Clutch piping (1988-11-01 ~ ; A12S +A15S +Z20S +LD20 +NA20S) |
| 46271-01E03 | CLIP-TUBE,CLUTCH | Clutch piping (1988-11-01 ~ ; A12S +A15S +Z20S +LD20 +NA20S) |
| 46271-17C10 | Clip-Tube, Clutch | Clutch piping (1988-11-01 ~ ; A12S +A15S +Z20S +LD20 +NA20S) |
