TC22

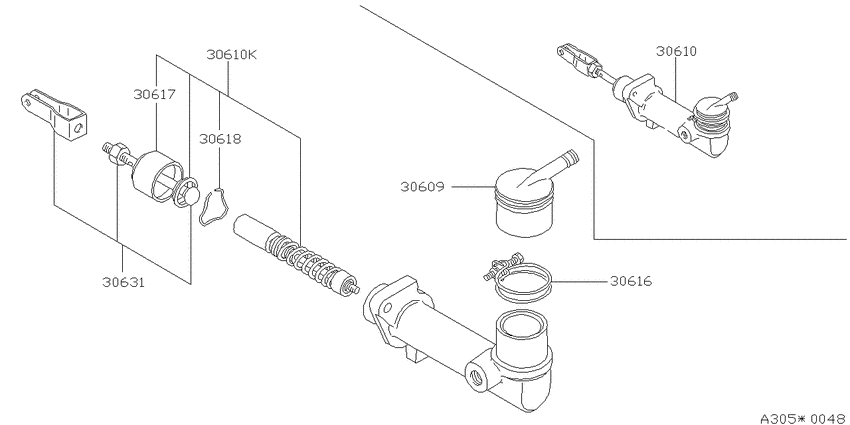

Clutch master cylinder (1988-11-01 ~ ; A12S +A15S +Z20S +LD20 +NA20S) 7
| # | OEM | Part name |
|---|---|---|
| 30609 | 46090-J2001 | Nipple-Clutch Master |
| 30610 | 30610-G3600 | Cylinder Assy-Clutch Master |
| 30610 | 30610-G3610 | Cylinder Assy-Clutch Master |
| 30610 | 30611-N0125 | Piston Kit-Clutch Master Cylinder |
| 30617 | 46100-S5000 | Cover-Dust |
| 30631 | 30631-B6800 | Rod Assy-Push |
| 30631 | 30631-G3610 | Rod Assy-Push |
| OEM | Part name | Category |
|---|---|---|
| 30610-G3600 | Cylinder Assy-Clutch Master | Clutch master cylinder (1988-11-01 ~ ; A12S +A15S +Z20S +LD20 +NA20S) |
| 30610-G3610 | Cylinder Assy-Clutch Master | Clutch master cylinder (1988-11-01 ~ ; A12S +A15S +Z20S +LD20 +NA20S) |
| 30611-N0125 | Piston Kit-Clutch Master Cylinder | Clutch master cylinder (1988-11-01 ~ ; A12S +A15S +Z20S +LD20 +NA20S) |
| 30631-B6800 | Rod Assy-Push | Clutch master cylinder (1988-11-01 ~ ; A12S +A15S +Z20S +LD20 +NA20S) |
| 30631-G3610 | Rod Assy-Push | Clutch master cylinder (1988-11-01 ~ ; A12S +A15S +Z20S +LD20 +NA20S) |
| 46090-J2001 | Nipple-Clutch Master | Clutch master cylinder (1988-11-01 ~ ; A12S +A15S +Z20S +LD20 +NA20S) |
| 46100-S5000 | Cover-Dust | Clutch master cylinder (1988-11-01 ~ ; A12S +A15S +Z20S +LD20 +NA20S) |
