TC22

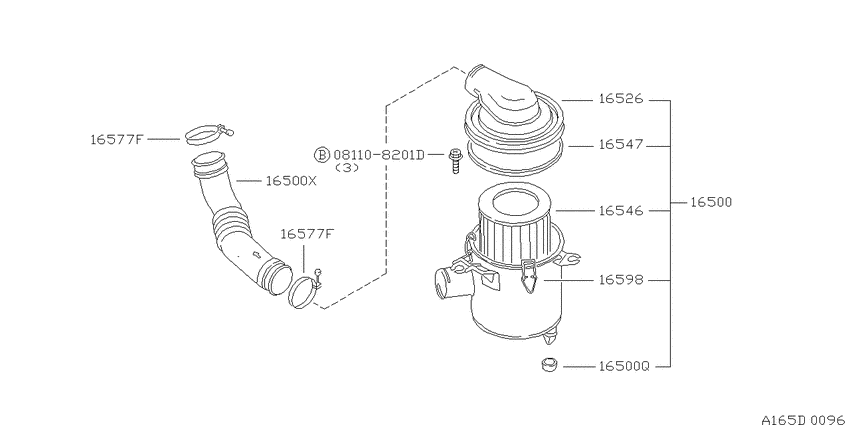

Air cleaner (1988-11-01 ~ ; LD20) 8
| # | OEM | Part name |
|---|---|---|
| 16500 | 16500-G8500 | Air Cleaner |
| 16500 | 16529-G5500 | Grommet |
| 16500 | 16578-G5500 | Duct-Air |
| 16526 | 16526-G8500 | Air Cleaner Cover |
| 16547 | 16547-G5500 | Packing |
| 16577 | 01555-00073 | CLAMP-HOSE |
| 16577 | 01555-00551 | CLAMP-HOSE |
| 16598 | 16598-M7000 | Clip |
| OEM | Part name | Category |
|---|---|---|
| 01555-00073 | CLAMP-HOSE | Air cleaner (1988-11-01 ~ ; LD20) |
| 01555-00551 | CLAMP-HOSE | Air cleaner (1988-11-01 ~ ; LD20) |
| 16500-G8500 | Air Cleaner | Air cleaner (1988-11-01 ~ ; LD20) |
| 16526-G8500 | Air Cleaner Cover | Air cleaner (1988-11-01 ~ ; LD20) |
| 16529-G5500 | Grommet | Air cleaner (1988-11-01 ~ ; LD20) |
| 16547-G5500 | Packing | Air cleaner (1988-11-01 ~ ; LD20) |
| 16578-G5500 | Duct-Air | Air cleaner (1988-11-01 ~ ; LD20) |
| 16598-M7000 | Clip | Air cleaner (1988-11-01 ~ ; LD20) |
