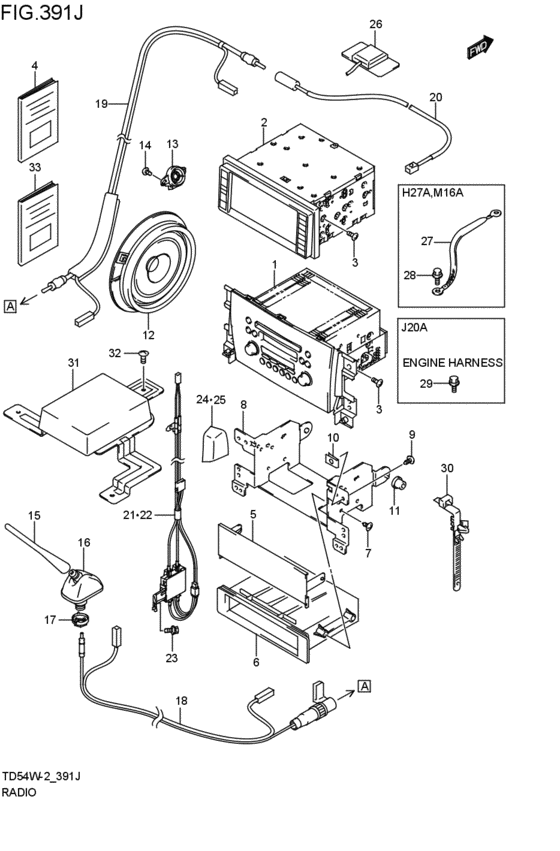

radio (2006-06-01~)
21
| # | OEM | Part name |
|---|
| 5 |
39161-74G00-000 |
COVER,RADIO HOLE |
| 5 |
39161-80J00-000 |
COVER,RADIO HOLE |
| 6 |
39182-70E51-000 |
POCKET,TUNER |
| 6 |
39182-80J00-000 |
Pocket,tuner |
| 6 |
39182-80J10-000 |
POCKET,TUNER |
| 7 |
03241-0512A-000 |
SCREW |
| 8 |
39321-65J10-000 |
BRACKET,TUNER |
| 9 |
03541-0512A-000 |
SCREW |
| 10 |
09148-05045-000 |
NUT |
| 11 |
34955-54G10-000 |
BUSH,RADIO BRKT |
| 12 |
39102-65J30-000 |
SPEAKER ASSY |
| 14 |
03541-0410A-000 |
SCREW |
| 15 |
39251-63J00-000 |
ROD,ANTENNA |
| 16 |
39253-64J10-000 |
ベース,アンテナ |
| 16 |
39253-65JA0-000 |
ベース,アンテナ |
| 17 |
39269-64J00-000 |
NUT,ANTENNA |
| 18 |
39271-66JC0-000 |
FEEDER,ANT BACK |
| 19 |
39271-65JD0-000 |
FEEDER,ANT ROOF |
| 27 |
39312-78F01-000 |
WIRE,NOISE SUPPR |
| 28 |
09115-06005-000 |
BOLT(6X16) |
| 30 |
09407-12404-000 |
CLAMP(L:140) |
| OEM |
Part name |
Category |
| 03241-0512A-000 |
SCREW |
radio (2006-06-01~) |
| 03541-0410A-000 |
SCREW |
radio (2006-06-01~) |
| 03541-0512A-000 |
SCREW |
radio (2006-06-01~) |
| 09115-06005-000 |
BOLT(6X16) |
radio (2006-06-01~) |
| 09148-05045-000 |
NUT |
radio (2006-06-01~) |
| 09407-12404-000 |
CLAMP(L:140) |
radio (2006-06-01~) |
| 34955-54G10-000 |
BUSH,RADIO BRKT |
radio (2006-06-01~) |
| 39102-65J30-000 |
SPEAKER ASSY |
radio (2006-06-01~) |
| 39161-74G00-000 |
COVER,RADIO HOLE |
radio (2006-06-01~) |
| 39161-80J00-000 |
COVER,RADIO HOLE |
radio (2006-06-01~) |
| 39182-70E51-000 |
POCKET,TUNER |
radio (2006-06-01~) |
| 39182-80J00-000 |
Pocket,tuner |
radio (2006-06-01~) |
| 39182-80J10-000 |
POCKET,TUNER |
radio (2006-06-01~) |
| 39251-63J00-000 |
ROD,ANTENNA |
radio (2006-06-01~) |
| 39253-64J10-000 |
ベース,アンテナ |
radio (2006-06-01~) |
| 39253-65JA0-000 |
ベース,アンテナ |
radio (2006-06-01~) |
| 39269-64J00-000 |
NUT,ANTENNA |
radio (2006-06-01~) |
| 39271-65JD0-000 |
FEEDER,ANT ROOF |
radio (2006-06-01~) |
| 39271-66JC0-000 |
FEEDER,ANT BACK |
radio (2006-06-01~) |
| 39312-78F01-000 |
WIRE,NOISE SUPPR |
radio (2006-06-01~) |
| 39321-65J10-000 |
BRACKET,TUNER |
radio (2006-06-01~) |
