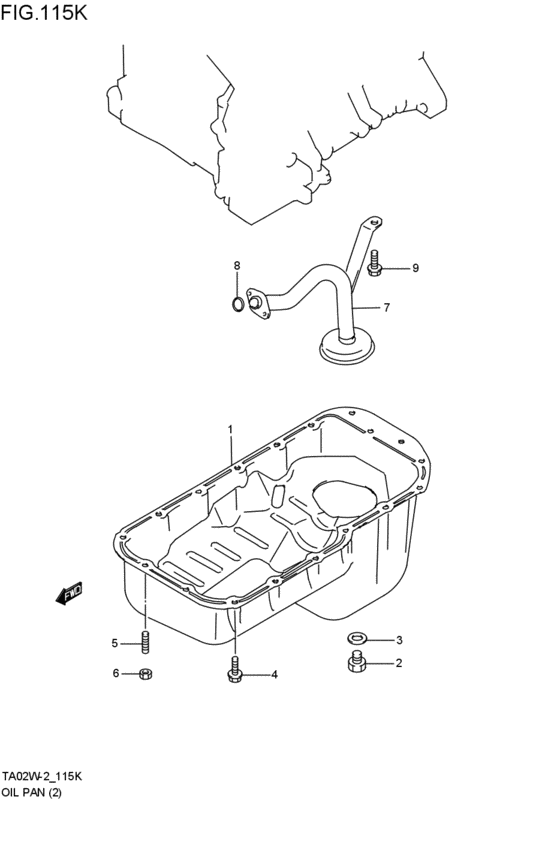

| 01421-06123-000 |
Stud m6x1x24 - Stud bolt |
oil pan (J20A; 2000-04-01~2002-09-01) |
| 01421-0612A-000 |
BOLT,STUD |
oil pan (J20A; 2000-04-01~2002-09-01) |
| 01550-06163-000 |
Bolt |
oil pan (J20A; 2000-04-01~2002-09-01) |
| 01550-0616A-000 |
Bolt |
oil pan (J20A; 2000-04-01~2002-09-01) |
| 01550-0616B-000 |
Bolt |
oil pan (J20A; 2000-04-01~2002-09-01) |
| 08316-10063-000 |
Nut |
oil pan (J20A; 2000-04-01~2002-09-01) |
| 08316-1006B-000 |
NUT |
oil pan (J20A; 2000-04-01~2002-09-01) |
| 09117-06033-000 |
BOLT(6X12) |
oil pan (J20A; 2000-04-01~2002-09-01) |
| 09117-06061-000 |
BOLT(6X16) |
oil pan (J20A; 2000-04-01~2002-09-01) |
| 09159-06077-000 |
NUT |
oil pan (J20A; 2000-04-01~2002-09-01) |
| 09168-14015-000 |
GASKET(14X20X1.5) - Gasket, oil hose union |
oil pan (J20A; 2000-04-01~2002-09-01) |
| 09247-14027-000 |
PLUG(14X11.5) - Plug, oil drain |
oil pan (J20A; 2000-04-01~2002-09-01) |
| 09247-14044-000 |
DRAIN PLUG (M14x1.5) |
oil pan (J20A; 2000-04-01~2002-09-01) |
| 09280-22020-000 |
O RING(D:2.4,ID:21.8) - O ring (d:2.4,id:21.8) |
oil pan (J20A; 2000-04-01~2002-09-01) |
| 11510-77E02-000 |
PAN,OIL |
oil pan (J20A; 2000-04-01~2002-09-01) |
| 16520-77E01-000 |
STRAINER,OIL PUMP |
oil pan (J20A; 2000-04-01~2002-09-01) |
