Search › Model › TA31W

TA31W

Suzuki ESCUDO · 1994 · 2,770 parts · 118 categories

2,770 items

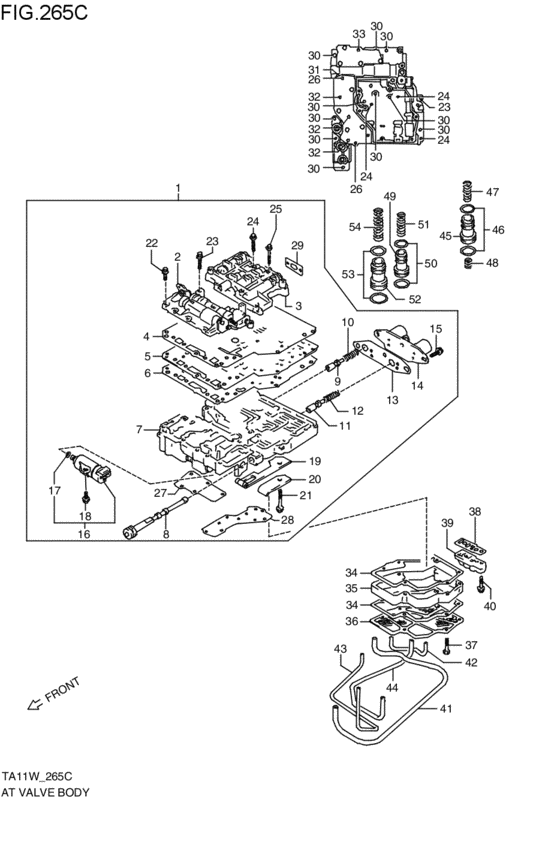

at - valve (4AT; 1994-11-01~) 53

#	OEM	Part name
1	26500-85FA0-000	BODY ASSY,CONTROL VALVE
2	26530-57B01-000	BODY ASSY,CONT VALVE FR UPR
3	26520-57B00-000	BODY ASSY,CONT VALVE RR UPR
4	26584-57B01-000	GASKET,UPR VALVE BODY
5	26522-57B02-000	PLATE,SEPARATOR
6	26585-57B01-000	GASKET,LWR VALVE BODY
7	26510-57B01-000	BODY ASSY,CONT VALVE LWR
8	26552-57B00-000	VALVE,MANUAL
9	26538-57B00-000	VALVE,INTMD COAST MOD
10	29627-57B00-000	SPRING,INTER COAST MOD VALVE
12	29628-57B00-000	SPRING,LOW COAST MOD VALVE
13	26589-57B00-000	GASKET,SOLENOID
14	26591-57B00-000	SOLENOID,T/M NO.1
15	29973-57B00-000	BOLT,SOLENOID NO.1
16	26592-57BT0-000	SOLENOID SET,T/M NO.2
17	29728-57B00-000	O-RING,SOLENOID
18	29983-57B00-000	BOLT,SOLENOID NO.2
19	26541-85FA0-000	SPRING,DETENT
20	26523-85FA0-000	PLATE,DETENT SPRING
21	29974-57B00-000	BOLT,DETENT SPRING
22	29979-57B00-000	ボルト,アッパ/ロアバルブボディ,NO.1
22	29979-65D10-000	BOLT,UPR&LWR VALVE BODY NO.1
23	29978-57B00-000	ボルト,アッパ/ロアバルブボディ,NO.2
23	29978-65D10-000	BOLT,UPR&LWR VALVE BODY NO.2
24	29977-57B00-000	BOLT,UPR&LWR VALVE BODY NO.3
25	29976-57B00-000	BOLT,UPR&LWR VALVE BODY NO.4
26	29975-57B00-000	BOLT,UPR&LWR VALVE BODY NO.5
27	26586-57B00-000	GASKET,LOCK UP CONT VALVE
28	26587-57B00-000	GASKET,LWR VALVE BODY PLATE
29	26588-57B00-000	GASKET,RR UPR VALVE BODY PLATE
30	29986-57B00-000	BOLT,BRAKE APPLY
31	29985-57B00-000	Bolt
32	29984-57B00-000	BOLT,VALVE BODY T/M CASE NO.3
33	29987-57B00-000	BOLT,VALVE BODY T/M CASE NO.4
34	26583-57B00-000	GASKET,OIL SCREEN
35	26565-57B00-000	SPACER,OIL SCREEN
36	26582-57B00-000	SCREEN,OIL
38	26581-57B00-000	GASKET,BRAKE APPLY COVER
39	26521-57B00-000	COVER,BRAKE APPLY
41	26533-57B00-000	TUBE,FORWARD CL APPLY
42	26532-57B00-000	TUBE,REVERSE BRAKE APPLY
43	26534-57B00-000	TUBE,O/D BRAKE APPLY
44	26531-57B00-000	TUBE,LUBE APPLY
45	29721-57B00-000	PISTON,2ND BK ACC
46	29733-57BT0-000	O-RING SET,2ND BK ACC PSTN
47	29644-57B10-000	SPRING,2ND BRAKE ACC NO,1
48	29645-57B10-000	SPRING,2ND BRAKE ACC NO,2
49	29722-57B00-000	PISTON,DIRECT CL ACC
50	29732-57BT0-000	O-RING SET,DIRECT CL ACC PSTN
51	29643-57B00-000	SPRING,DIRECT CL ACC
52	26410-57B00-000	PISTON,FWD CLUTCH ACC
53	29731-57BT0-000	O-RING,FORWARD CL ACC PSTN
54	29641-57B00-000	SPRING,FORWARD CL ACC NO.1

OEM	Part name	Category
26410-57B00-000	PISTON,FWD CLUTCH ACC	at - valve (4AT; 1994-11-01~)
26500-85FA0-000	BODY ASSY,CONTROL VALVE	at - valve (4AT; 1994-11-01~)
26510-57B01-000	BODY ASSY,CONT VALVE LWR	at - valve (4AT; 1994-11-01~)
26520-57B00-000	BODY ASSY,CONT VALVE RR UPR	at - valve (4AT; 1994-11-01~)
26521-57B00-000	COVER,BRAKE APPLY	at - valve (4AT; 1994-11-01~)
26522-57B02-000	PLATE,SEPARATOR	at - valve (4AT; 1994-11-01~)
26523-85FA0-000	PLATE,DETENT SPRING	at - valve (4AT; 1994-11-01~)
26530-57B01-000	BODY ASSY,CONT VALVE FR UPR	at - valve (4AT; 1994-11-01~)
26531-57B00-000	TUBE,LUBE APPLY	at - valve (4AT; 1994-11-01~)
26532-57B00-000	TUBE,REVERSE BRAKE APPLY	at - valve (4AT; 1994-11-01~)
26533-57B00-000	TUBE,FORWARD CL APPLY	at - valve (4AT; 1994-11-01~)
26534-57B00-000	TUBE,O/D BRAKE APPLY	at - valve (4AT; 1994-11-01~)
26538-57B00-000	VALVE,INTMD COAST MOD	at - valve (4AT; 1994-11-01~)
26541-85FA0-000	SPRING,DETENT	at - valve (4AT; 1994-11-01~)
26552-57B00-000	VALVE,MANUAL	at - valve (4AT; 1994-11-01~)
26565-57B00-000	SPACER,OIL SCREEN	at - valve (4AT; 1994-11-01~)
26581-57B00-000	GASKET,BRAKE APPLY COVER	at - valve (4AT; 1994-11-01~)
26582-57B00-000	SCREEN,OIL	at - valve (4AT; 1994-11-01~)
26583-57B00-000	GASKET,OIL SCREEN	at - valve (4AT; 1994-11-01~)
26584-57B01-000	GASKET,UPR VALVE BODY	at - valve (4AT; 1994-11-01~)
26585-57B01-000	GASKET,LWR VALVE BODY	at - valve (4AT; 1994-11-01~)
26586-57B00-000	GASKET,LOCK UP CONT VALVE	at - valve (4AT; 1994-11-01~)
26587-57B00-000	GASKET,LWR VALVE BODY PLATE	at - valve (4AT; 1994-11-01~)
26588-57B00-000	GASKET,RR UPR VALVE BODY PLATE	at - valve (4AT; 1994-11-01~)
26589-57B00-000	GASKET,SOLENOID	at - valve (4AT; 1994-11-01~)
26591-57B00-000	SOLENOID,T/M NO.1	at - valve (4AT; 1994-11-01~)
26592-57BT0-000	SOLENOID SET,T/M NO.2	at - valve (4AT; 1994-11-01~)
29627-57B00-000	SPRING,INTER COAST MOD VALVE	at - valve (4AT; 1994-11-01~)
29628-57B00-000	SPRING,LOW COAST MOD VALVE	at - valve (4AT; 1994-11-01~)
29641-57B00-000	SPRING,FORWARD CL ACC NO.1	at - valve (4AT; 1994-11-01~)
29643-57B00-000	SPRING,DIRECT CL ACC	at - valve (4AT; 1994-11-01~)
29644-57B10-000	SPRING,2ND BRAKE ACC NO,1	at - valve (4AT; 1994-11-01~)
29645-57B10-000	SPRING,2ND BRAKE ACC NO,2	at - valve (4AT; 1994-11-01~)
29721-57B00-000	PISTON,2ND BK ACC	at - valve (4AT; 1994-11-01~)
29722-57B00-000	PISTON,DIRECT CL ACC	at - valve (4AT; 1994-11-01~)
29728-57B00-000	O-RING,SOLENOID	at - valve (4AT; 1994-11-01~)
29731-57BT0-000	O-RING,FORWARD CL ACC PSTN	at - valve (4AT; 1994-11-01~)
29732-57BT0-000	O-RING SET,DIRECT CL ACC PSTN	at - valve (4AT; 1994-11-01~)
29733-57BT0-000	O-RING SET,2ND BK ACC PSTN	at - valve (4AT; 1994-11-01~)
29973-57B00-000	BOLT,SOLENOID NO.1	at - valve (4AT; 1994-11-01~)
29974-57B00-000	BOLT,DETENT SPRING	at - valve (4AT; 1994-11-01~)
29975-57B00-000	BOLT,UPR&LWR VALVE BODY NO.5	at - valve (4AT; 1994-11-01~)
29976-57B00-000	BOLT,UPR&LWR VALVE BODY NO.4	at - valve (4AT; 1994-11-01~)
29977-57B00-000	BOLT,UPR&LWR VALVE BODY NO.3	at - valve (4AT; 1994-11-01~)
29978-57B00-000	ボルト,アッパ/ロアバルブボディ,NO.2	at - valve (4AT; 1994-11-01~)
29978-65D10-000	BOLT,UPR&LWR VALVE BODY NO.2	at - valve (4AT; 1994-11-01~)
29979-57B00-000	ボルト,アッパ/ロアバルブボディ,NO.1	at - valve (4AT; 1994-11-01~)
29979-65D10-000	BOLT,UPR&LWR VALVE BODY NO.1	at - valve (4AT; 1994-11-01~)
29983-57B00-000	BOLT,SOLENOID NO.2	at - valve (4AT; 1994-11-01~)
29984-57B00-000	BOLT,VALVE BODY T/M CASE NO.3	at - valve (4AT; 1994-11-01~)
29985-57B00-000	Bolt	at - valve (4AT; 1994-11-01~)
29986-57B00-000	BOLT,BRAKE APPLY	at - valve (4AT; 1994-11-01~)
29987-57B00-000	BOLT,VALVE BODY T/M CASE NO.4	at - valve (4AT; 1994-11-01~)
