TA14

Toyota CARINA · 1975 · 4,886 parts · 139 categories
TA14 ×

← Back to categories

4,886 items

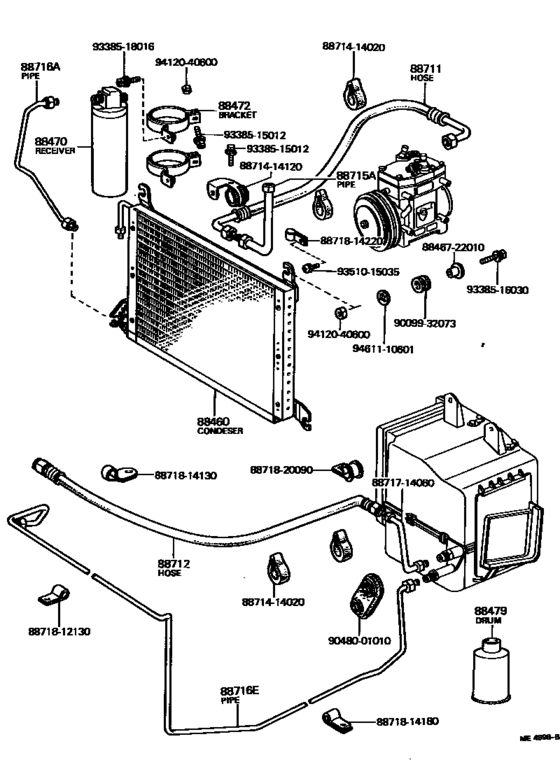

Heating & Air Conditioning - Cooler Piping ([10.1975 - 07.1977] (7510-7707)) 47
#OEMPart name
88460 88460-14010 Condenser Assy, Cooler
88460 88460-14021 Condenser Assy, Cooler
88460 88460-14050 Condenser Assy, Cooler
88460 88460-14070 Condenser Assy, Cooler
88470 88470-10010 Receiver & Dryer Assy, Cooler
88470 88470-12021 Receiver & Dryer Assy, Cooler
88472 88472-14010 Bracket, Receiver Tank, No.1
88472 88472-14011 Bracket, Receiver Tank, No.1
88472 88472-14012 Bracket, Receiver Tank, No.1
88472 88472-14080 Bracket, Receiver Tank, No.1
88472 88892-14010 Bracket, Receiver Tank, No.1
88479 88434-30010 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02005 New Genuine Part
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88711 88711-14010 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-14011 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-14100 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-14170 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-14010 Hose, Cooler Refrigerant Suction, No.1
88712 88712-14210 Hose, Cooler Refrigerant Suction, No.1
88712 88712-14250 Hose, Cooler Refrigerant Suction, No.1
88715 88715-14030 Pipe, Cooler Refrigerant Discharge, A
88716 88716-14010 Spring, Heater Case Fastening
88716 88716-14012 Pipe, Cooler Refrigerant Liquid, A
88716 88716-14011 Pipe, Cooler Refrigerant Liquid, A
88716 88716-14260 Pipe, Cooler Refrigerant Liquid, A
88716 88716-14020 Pipe, Cooler Refrigerant Liquid, E
88716 88716-14022 Pipe, Cooler Refrigerant Liquid, E
88716 88716-14310 Pipe, Cooler Refrigerant Liquid, E
8846722010 88467-22010 Insulator, Cooler Condenser Mounting
8871414020 88714-14020 Insulator, Cooler Refrigerant Hose, No.2 - COOLER REFRIGERANT HOSE, NO.1
8871714060 88717-14060 Pipe, Cooler Refrigerant Suction, No.1
8871812130 88718-12130 Clamp (for Cooler Relay)
8871812130 88569-30400 Clamp (for Cooler Relay)
8871814130 88718-14130 Pipe, Cooler Refrigerant Suction, No.2
8871814180 88718-14180 Pipe, Cooler Refrigerant Suction, No.2
8871814220 88718-14220 Pipe, Cooler Refrigerant Suction, No.2
8871820090 88718-20090 Pipe, Cooler Refrigerant Suction, No.2
9009932073 90099-32073 Grommet
9048001010 90480-01010 New Genuine Part
9338515012 93385-15012 SCREW
9338516030 93385-16030 Lever, Cooler Control, No.1
9338518016 93385-18016 New Genuine Part
9351015035 93510-15035 New Genuine Part
9412040600 94120-40600 Nut, Wire Adjusting, No.1
9461110601 94611-10601 WASHER
9971414120 99714-14120 New Genuine Part
