Search › Model › TA14

TA14

Toyota CARINA · 1975 · 4,886 parts · 139 categories

4,886 items

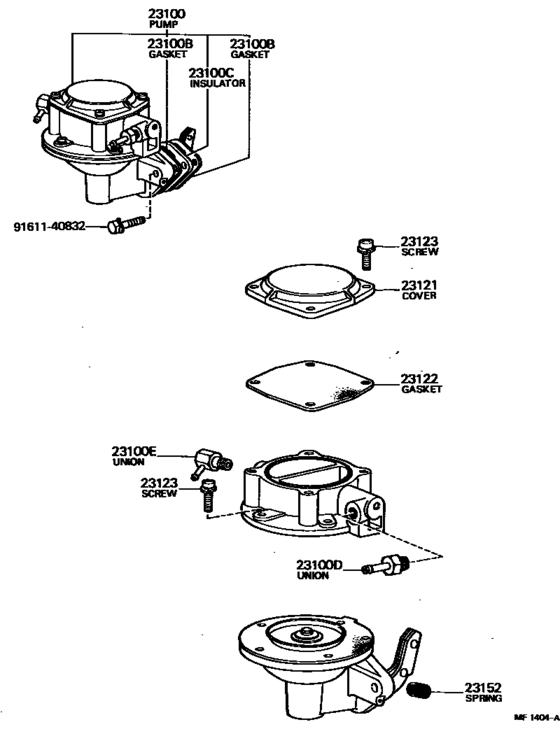

Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707)) 27

#	OEM	Part name
23100	23100-29057	Pump Assy, Fuel
23100	23100-29058	Pump Assy, Fuel
23100	23100-29105	Pump Assy, Fuel
23100	23100-29106	Pump Assy, Fuel
23100	23100-29107	Pump Assy, Fuel
23100	95333-06040	Hose
23100	23100-29108	Pump Assy, Fuel
23100	90923-05005	Gasket, Cylinder Block Side Cover, No.2
23100	90923-05019	Gasket, Fuel Pump
23100	90923-06001	Insulator, Fuel Pump
23100	90923-06009	Insulator, Fuel Pump
23100	23116-34030	Union, Nipple(For Fuel Inlet) - NIPPLE(FOR FUEL OUTLET)
23100	90404-13105	Bolt, Union(For Oil Filter Inlet Pipe) - NIPPLE(FOR FUEL INLET)
23100	90404-13265	Union(For Oil Cooler Tube)
23100	90404-51244	Union, Nipple(For Fuel Outlet) - NIPPLE(FOR FUEL INLET)
23100	90404-51266	Union, Nipple(For Fuel Inlet)
23121	23121-34020	Cover, Fuel Pump
23121	23121-41030	Cover, Fuel Pump
23122	23122-34020	Gasket, Fuel Pump Cover
23122	23122-41030	Gasket, Fuel Pump Cover
23123	23123-33011	Screw, Cover Set, No.1
23123	23123-60022	Screw, Cover Set, No.1
23123	93319-15014	Screw, Cover Set, No.1
23152	23152-30020	Spring, Rocker Arm
23152	23152-34040	Spring, Rocker Arm
9161140832	91611-40832	Bolt Or Ring, Exhaust Pipe Front (For Front)
9161140832	91611-60832	Bolt Or Ring, Exhaust Pipe Front (For Front)

OEM	Part name	Category
23100-29057	Pump Assy, Fuel	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
23100-29058	Pump Assy, Fuel	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
23100-29105	Pump Assy, Fuel	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
23100-29106	Pump Assy, Fuel	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
23100-29107	Pump Assy, Fuel	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
23100-29108	Pump Assy, Fuel	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
23116-34030	Union, Nipple(For Fuel Inlet) - NIPPLE(FOR FUEL OUTLET)	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
23121-34020	Cover, Fuel Pump	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
23121-41030	Cover, Fuel Pump	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
23122-34020	Gasket, Fuel Pump Cover	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
23122-41030	Gasket, Fuel Pump Cover	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
23123-33011	Screw, Cover Set, No.1	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
23123-60022	Screw, Cover Set, No.1	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
23152-30020	Spring, Rocker Arm	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
23152-34040	Spring, Rocker Arm	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
90404-13105	Bolt, Union(For Oil Filter Inlet Pipe) - NIPPLE(FOR FUEL INLET)	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
90404-13265	Union(For Oil Cooler Tube)	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
90404-51244	Union, Nipple(For Fuel Outlet) - NIPPLE(FOR FUEL INLET)	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
90404-51266	Union, Nipple(For Fuel Inlet)	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
90923-05005	Gasket, Cylinder Block Side Cover, No.2	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
90923-05019	Gasket, Fuel Pump	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
90923-06001	Insulator, Fuel Pump	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
90923-06009	Insulator, Fuel Pump	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
91611-40832	Bolt Or Ring, Exhaust Pipe Front (For Front)	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
91611-60832	Bolt Or Ring, Exhaust Pipe Front (For Front)	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
93319-15014	Screw, Cover Set, No.1	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))
95333-06040	Hose	Fuel Pump & Pipe ([10.1975 - 07.1977] (7510-7707))

Source: Public OEM parts-catalog data
Variants: 2 / 32
Category: 139
Collected: 2026-08-02
