| 01550-06403-000 |
Bolt (green) - Bolt, engine controlunit |

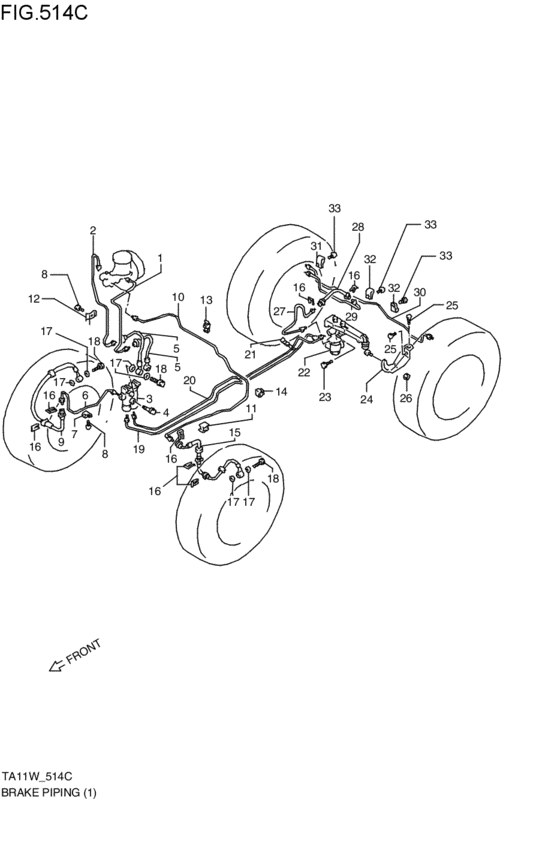

brakes piping (2DR:X; 1994-11-01~) |
| 01550-0640A-000 |
Bolt - Bolt (l:40) |
brakes piping (2DR:X; 1994-11-01~) |
| 01550-0640B-000 |
Bolt |
brakes piping (2DR:X; 1994-11-01~) |
| 01550-08163-000 |
Bolt, holder |
brakes piping (2DR:X; 1994-11-01~) |
| 01550-0816A-000 |
Bolt - Bolt, rear |
brakes piping (2DR:X; 1994-11-01~) |
| 01550-0816B-000 |
Bolt |
brakes piping (2DR:X; 1994-11-01~) |
| 01570-06123-000 |
Bolt |
brakes piping (2DR:X; 1994-11-01~) |
| 01570-0612A-000 |
Bolt |
brakes piping (2DR:X; 1994-11-01~) |
| 01570-0612B-000 |
Bolt - Bolt, upper |
brakes piping (2DR:X; 1994-11-01~) |
| 01570-08403-000 |
Bolt |
brakes piping (2DR:X; 1994-11-01~) |
| 01570-0840A-000 |
Bolt |
brakes piping (2DR:X; 1994-11-01~) |
| 08316-10083-000 |
Nut |
brakes piping (2DR:X; 1994-11-01~) |
| 08316-1008B-000 |
NUT |
brakes piping (2DR:X; 1994-11-01~) |
| 09132-06006-000 |
SCREW(6X12) |
brakes piping (2DR:X; 1994-11-01~) |
| 09161-10009-000 |
WASHER(10X15X1.5) - Lock washer |
brakes piping (2DR:X; 1994-11-01~) |
| 09360-10026-000 |
Union bolt |
brakes piping (2DR:X; 1994-11-01~) |
| 09383-13001-000 |
E RING |
brakes piping (2DR:X; 1994-11-01~) |
| 09383-13003-000 |
E-RING |
brakes piping (2DR:X; 1994-11-01~) |
| 09403-06401-000 |
CLAMP |
brakes piping (2DR:X; 1994-11-01~) |
| 09403-06404-000 |
CLAMP |
brakes piping (2DR:X; 1994-11-01~) |
| 09403-07312-000 |
CLAMP |
brakes piping (2DR:X; 1994-11-01~) |
| 51340-78E00-000 |
PIPE,JOINT TO VALVE FRONT |
brakes piping (2DR:X; 1994-11-01~) |
| 51350-77E00-000 |
PIPE,VALVE TO RR BK HOSE |
brakes piping (2DR:X; 1994-11-01~) |
| 51410-77E10-000 |
パイプ,マスタプライマリツージョイント |
brakes piping (2DR:X; 1994-11-01~) |
| 51420-77E10-000 |
PIPE,JOINT TO FR BK HOSE |
brakes piping (2DR:X; 1994-11-01~) |
| 51430-77E10-000 |
パイプ,マスタセカンダリツーフロントブレーキホース |
brakes piping (2DR:X; 1994-11-01~) |
| 51435-60A00-000 |
CLAMP,BRAKE PIPE SIDE |
brakes piping (2DR:X; 1994-11-01~) |
| 51460-78E00-000 |
PIPE,JOINT TO VALVE REAR |
brakes piping (2DR:X; 1994-11-01~) |
| 51465-60A00-000 |
CLAMP,BRAKE PIPE FRAME |
brakes piping (2DR:X; 1994-11-01~) |
| 51470-77E00-000 |
PIPE,RR BK HOSE TO R BK ASSY |
brakes piping (2DR:X; 1994-11-01~) |
| 51480-77E00-000 |
PIPE,R BK ASSY TO L BK ASSY |
brakes piping (2DR:X; 1994-11-01~) |
| 51520-77E10-000 |
パイプ,マスタセカンダリツージョイント |
brakes piping (2DR:X; 1994-11-01~) |
| 51540-60A31-000 |
HOSE,FR BRAKE FLEXIBLE,R |
brakes piping (2DR:X; 1994-11-01~) |
| 51550-60A31-000 |
HOSE,FR BRAKE FLEXIBLE,L |
brakes piping (2DR:X; 1994-11-01~) |
| 51560-83031-000 |
HOSE,RR BRAKE FLEXIBLE |
brakes piping (2DR:X; 1994-11-01~) |
| 51570-77E00-000 |
HOSE,MA CYL FLEXIBLE |
brakes piping (2DR:X; 1994-11-01~) |
| 51640-60A30-000 |
JOINT,5WAY BRAKE |
brakes piping (2DR:X; 1994-11-01~) |
| 51751-77E00-000 |
CLAMP,BRAKE PIPE |
brakes piping (2DR:X; 1994-11-01~) |
| 51752-70B00-000 |
CLAMP,BK PIPE |
brakes piping (2DR:X; 1994-11-01~) |
| 51930-60A20-000 |
VALVE ASSY |
brakes piping (2DR:X; 1994-11-01~) |
| 51930-60A40-000 |
VALVE ASSY,L.S.P. |
brakes piping (2DR:X; 1994-11-01~) |
| 51955-60A20-000 |
STAY,LSPV |
brakes piping (2DR:X; 1994-11-01~) |
