Search › Model › TA02W
TA02W

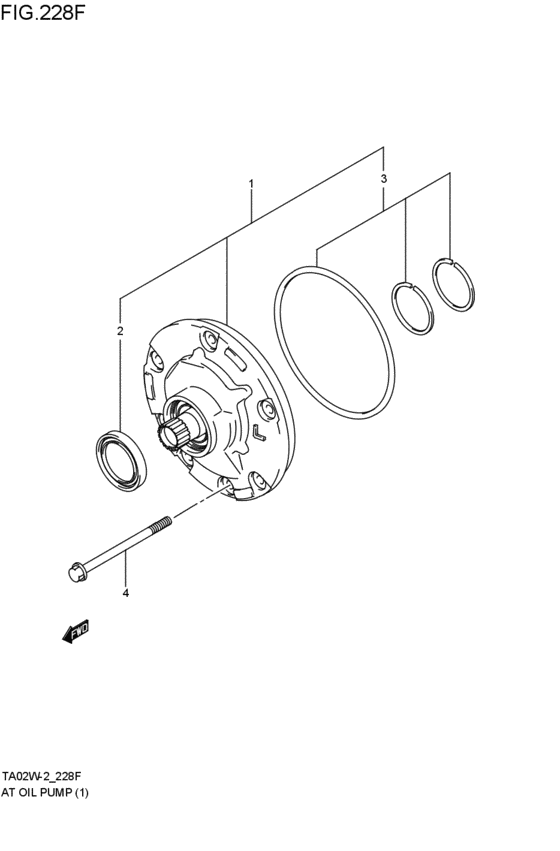

at - oil pump (AT:(G16A,J20A); 2000-04-01~2002-09-01) 5
| # | OEM | Part name |
|---|---|---|
| 1 | 22800-65D10-000 | PUMP ASSYOIL |
| 1 | 22800-65D11-000 | PUMP ASSY,OIL |
| 2 | 29799-54D10-000 | SEAL,OIL PUMP BODY |
| 3 | 22860-57BT0-000 | RING SET,OIL PUMP SEAL |
| 4 | 29998-57B00-000 | BOLT,OIL PUMP |
| OEM | Part name | Category |
|---|---|---|
| 22800-65D10-000 | PUMP ASSYOIL | at - oil pump (AT:(G16A,J20A); 2000-04-01~2002-09-01) |
| 22800-65D11-000 | PUMP ASSY,OIL | at - oil pump (AT:(G16A,J20A); 2000-04-01~2002-09-01) |
| 22860-57BT0-000 | RING SET,OIL PUMP SEAL | at - oil pump (AT:(G16A,J20A); 2000-04-01~2002-09-01) |
| 29799-54D10-000 | SEAL,OIL PUMP BODY | at - oil pump (AT:(G16A,J20A); 2000-04-01~2002-09-01) |
| 29998-57B00-000 | BOLT,OIL PUMP | at - oil pump (AT:(G16A,J20A); 2000-04-01~2002-09-01) |
