| 01147-10203-000 |
ボルト |

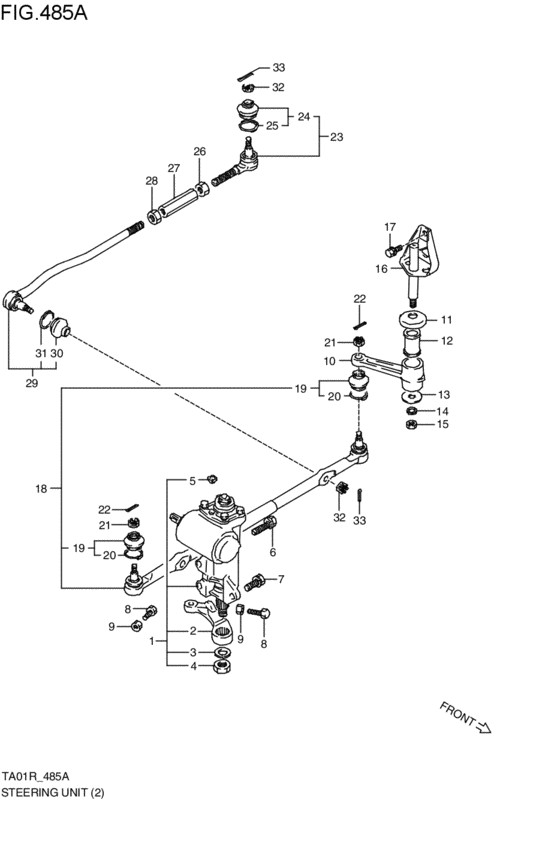

steering unit (V; 1988-05-01~1990-07-01) |
| 01147-12353-000 |
ボルト |
steering unit (V; 1988-05-01~1990-07-01) |
| 01570-1020A-000 |
Bolt |
steering unit (V; 1988-05-01~1990-07-01) |
| 01570-1235A-000 |
Bolt |
steering unit (V; 1988-05-01~1990-07-01) |
| 04111-30308-000 |
30 x 30 cotter - Cotter pin |
steering unit (V; 1988-05-01~1990-07-01) |
| 04111-3030A-000 |
PIN |
steering unit (V; 1988-05-01~1990-07-01) |
| 08310-0010A-000 |
NUT |
steering unit (V; 1988-05-01~1990-07-01) |
| 08310-0010B-000 |
NUT |
steering unit (V; 1988-05-01~1990-07-01) |
| 08310-0012A-000 |
NUT |
steering unit (V; 1988-05-01~1990-07-01) |
| 08310-12103-000 |
Nut |
steering unit (V; 1988-05-01~1990-07-01) |
| 08310-12123-000 |
NUT |
steering unit (V; 1988-05-01~1990-07-01) |
| 08314-40123-000 |
Nut - Nut, knuckle end |
steering unit (V; 1988-05-01~1990-07-01) |
| 08314-4012A-000 |
NUT |
steering unit (V; 1988-05-01~1990-07-01) |
| 08321-0112A-000 |
WASHER,LOCK |
steering unit (V; 1988-05-01~1990-07-01) |
| 08321-21208-000 |
Washer,lock 20m - Lock washer |
steering unit (V; 1988-05-01~1990-07-01) |
| 08321-31123-000 |
WASHER LOCK |
steering unit (V; 1988-05-01~1990-07-01) |
| 09117-12007-000 |
ボルト,12X59 |
steering unit (V; 1988-05-01~1990-07-01) |
| 09140-16022-000 |
NUT |
steering unit (V; 1988-05-01~1990-07-01) |
| 09140-16023-000 |
NUT |
steering unit (V; 1988-05-01~1990-07-01) |
| 09160-12079-000 |
WASHER(12.2X40X2.6) |
steering unit (V; 1988-05-01~1990-07-01) |
| 09401-27402-000 |
CLIP |
steering unit (V; 1988-05-01~1990-07-01) |
| 48600-60A10-000 |
BOX ASSY,STEERING GEAR |
steering unit (V; 1988-05-01~1990-07-01) |
| 48633-67011-000 |
PLUG,BREATHER |
steering unit (V; 1988-05-01~1990-07-01) |
| 48644-80010-000 |
WASHER,PITMAN ARM LOCK |
steering unit (V; 1988-05-01~1990-07-01) |
| 48671-60A00-000 |
PITMAN ARM |
steering unit (V; 1988-05-01~1990-07-01) |
| 48674-63240-000 |
NUT |
steering unit (V; 1988-05-01~1990-07-01) |
| 48674-80060-000 |
ナット |
steering unit (V; 1988-05-01~1990-07-01) |
| 48721-60A00-000 |
ARM,IDLER |
steering unit (V; 1988-05-01~1990-07-01) |
| 48750-60A00-000 |
BUSHING,IDLER ARM |
steering unit (V; 1988-05-01~1990-07-01) |
| 48760-60A00-000 |
BRACKET COM IDLE ARM |
steering unit (V; 1988-05-01~1990-07-01) |
| 48760-60A01-000 |
BRACKET,IDLER ARM |
steering unit (V; 1988-05-01~1990-07-01) |
| 48771-60A00-000 |
WASHER,IDLER ARM UPR |
steering unit (V; 1988-05-01~1990-07-01) |
| 48775-60A00-000 |
BOLT,STOPPER |
steering unit (V; 1988-05-01~1990-07-01) |
| 48800-80810-000 |
Boot Set |
steering unit (V; 1988-05-01~1990-07-01) |
| 48806-80000-000 |
BOOT SET |
steering unit (V; 1988-05-01~1990-07-01) |
| 48806-80001-000 |
Boot Set |
steering unit (V; 1988-05-01~1990-07-01) |
| 48810-60A00-000 |
END TIE ROD STEERING |
steering unit (V; 1988-05-01~1990-07-01) |
| 48810-77E00-000 |
END,STEERING TIE-ROD,R |
steering unit (V; 1988-05-01~1990-07-01) |
| 48810-81A01-000 |
END,DRAG ROD,L |
steering unit (V; 1988-05-01~1990-07-01) |
| 48820-60A00-000 |
END COMP STRG TIE ROD |
steering unit (V; 1988-05-01~1990-07-01) |
| 48820-77E00-000 |
END,STEERING TIE-ROD |
steering unit (V; 1988-05-01~1990-07-01) |
| 48836-63001-000 |
CONNECTOR,TIE-ROD END |
steering unit (V; 1988-05-01~1990-07-01) |
| 48850-60A00-000 |
CENTER STEERING LINK ASSY |
steering unit (V; 1988-05-01~1990-07-01) |
