| 08310-0008A-000 |
NUT - Nut, bead stopper |

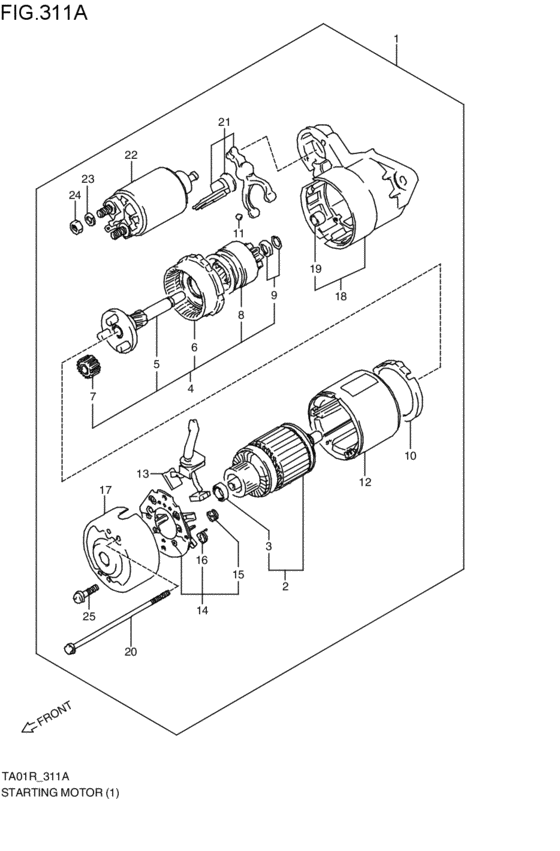

starting motor (5MT; 1988-05-01~1990-07-01) |
| 08310-0008B-000 |
NUT |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 08310-12086-000 |
NUT |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 08321-0108A-000 |
WASHER,LOCK |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 08321-0108B-000 |
WASHER,LOCK |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 08321-21086-000 |
Wsherlck8.2x15.2x1.6 |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31100-60A12-REM |
Starting motor |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31100-60A20-000 |
モータアッシ,スターティング |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31100-60A24-000 |
MOTOR ASSY,STARTING |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31110-86030-000 |
ヨークアッシ |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31110-86031-000 |
YOKE ASSY |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31131-86030-000 |
BRUSH ASSY |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31135-86030-000 |
スプリング,ブラシ |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31136-79030-000 |
SCREW ASSY |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31137-86030-000 |
スプリング,ブラシ |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31151-60A10-000 |
ブラケットアッシ,フロント |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31152-79030-000 |
BEARING,FRONT |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31170-60A10-000 |
ブラケットアッシ,リヤ |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31172-86030-000 |
Bearing |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31173-60A20-000 |
HOLDER ASSY,BRUSH |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31175-79030-000 |
Screw Set |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31191-86030-000 |
LEVER ASSY |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31193-86030-000 |
BALL |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31220-86030-000 |
SWITCH ASSY |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31261-86030-000 |
Bolt |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31311-86030-000 |
アマチュア |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31311-86031-000 |
アマチュア |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31313-86030-000 |
STOPPER SET |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31314-86030-000 |
Stopper Set |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31320-60A10-000 |
クラッチ,オーバランニング |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31340-60A10-000 |
シャフトアッシ,クラッチ |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31341-60A10-000 |
SHAFT,GEAR |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31343-50F40-000 |
GEAR,INTERNAL |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31343-86030-000 |
GEAR ASSY INNER |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31344-86030-000 |
GEAR,PLNTY |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31345-60A00-000 |
PACKING |
starting motor (5MT; 1988-05-01~1990-07-01) |
| 31345-86030-000 |
Packing |
starting motor (5MT; 1988-05-01~1990-07-01) |
