| 01107-06123-000 |
Bolt 6x1x16 - Bolt, front |

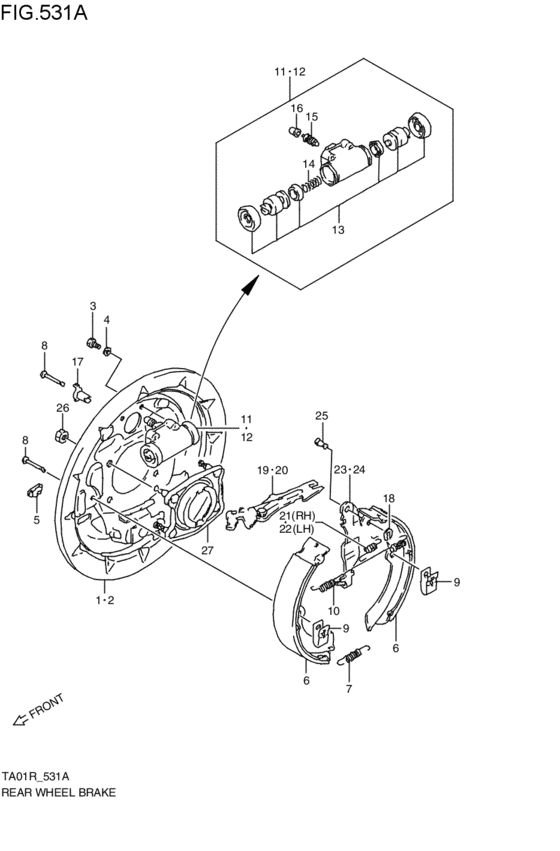

rear wheel brakes (1988-05-01~1990-07-01) |
| 01500-06123-000 |
Bolt, front |
rear wheel brakes (1988-05-01~1990-07-01) |
| 01500-0612A-000 |
Bolt |
rear wheel brakes (1988-05-01~1990-07-01) |
| 08310-0008A-000 |
NUT - Nut, bead stopper |
rear wheel brakes (1988-05-01~1990-07-01) |
| 08310-0008B-000 |
NUT |
rear wheel brakes (1988-05-01~1990-07-01) |
| 08310-11083-000 |
NUT M8X125X65 |
rear wheel brakes (1988-05-01~1990-07-01) |
| 08321-0106A-000 |
WASHER,LOCK |
rear wheel brakes (1988-05-01~1990-07-01) |
| 08321-31063-000 |
Lock washer |
rear wheel brakes (1988-05-01~1990-07-01) |
| 52241-73040-000 |
PIN,SHOE HOLD DOWN |
rear wheel brakes (1988-05-01~1990-07-01) |
| 52241-85400-000 |
PIN |
rear wheel brakes (1988-05-01~1990-07-01) |
| 52473-83040-000 |
プラグ,ブリーダ |
rear wheel brakes (1988-05-01~1990-07-01) |
| 52474-85200-000 |
キャップ,ブリーダプラグ |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53110-60A00-000 |
PLATE,BACKING,R |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53120-60A00-000 |
PLATE,BACKING,L |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53121-80050-000 |
PLUG,ADJUSTER |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53200-60813-000 |
SHOE SET,BRAKE |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53210-60A20-000 |
SHOE SET BRAKE |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53231-83041-000 |
SPRING,SHOE RETURN B |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53243-60A00-000 |
SPRING,SHOE HOLD DOWN |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53331-60A00-000 |
SPRING,SHOE RETURN UPPER |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53400-60811-000 |
BOOT&CUP SET,RR WHEEL |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53401-60A00-000 |
CYLINDER ASSY,REAR WHEEL,R |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53402-60A00-000 |
CYLINDER ASSY,REAR WHEEL,L |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53441-80050-000 |
SPRING,WHEEL CYLINDER |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53721-60A00-000 |
LEVER,PARKING SHOE,R |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53726-60A00-000 |
LEVER,PARKING SHOE,L |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53731-85200-000 |
PIN,PARKING BRAKE LEVER |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53741-60A00-000 |
LEVER,STOPPER |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53751-85200-000 |
CLIP,PARKING BRAKE LEVER |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53810-60A00-000 |
ROD,PARKING BRAKE,R |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53820-60A00-000 |
RETAINER,RR WHL BRG OUTER |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53821-60A00-000 |
SPRING,ROD,R |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53822-60A00-000 |
SPRING,ROD,L |
rear wheel brakes (1988-05-01~1990-07-01) |
| 53860-60A00-000 |
ROD,PARKING BRAKE,L |
rear wheel brakes (1988-05-01~1990-07-01) |
| 55151-78451-000 |
PLUG,BLEEDER |
rear wheel brakes (1988-05-01~1990-07-01) |
| 55156-66310-000 |
CAP,BLEEDER PLUG - Cap, bleeder plug |
rear wheel brakes (1988-05-01~1990-07-01) |
| 59122-18410-000 |
Cap, bleeder plug |
rear wheel brakes (1988-05-01~1990-07-01) |
