| 01137-08163-000 |
BOLT 8X6 |

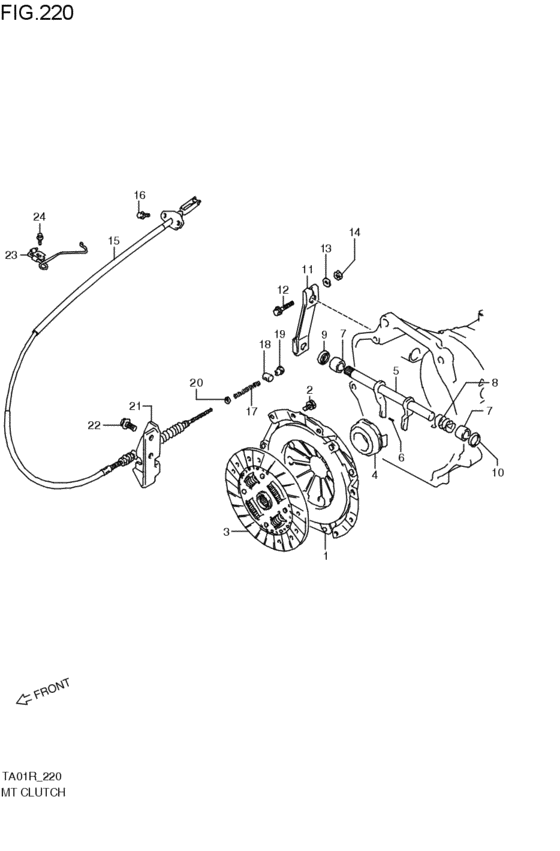

mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 01517-06103-000 |
BOLT 6X10 |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 01517-06163-000 |
Bolt |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 01517-08403-000 |
ボルト |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 01517-10203-000 |
BOLT M10X125X20 |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 01550-0610A-000 |
Bolt |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 01550-0610B-000 |
Bolt |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 01550-0616A-000 |
Bolt |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 01550-0616B-000 |
Bolt |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 01550-0840B-000 |
Bolt |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 01550-1020A-000 |
Bolt - Bolt, bal sprocket |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 01570-0816A-000 |
Bolt |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 08310-0008A-000 |
NUT - Nut, bead stopper |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 08310-0008B-000 |
NUT |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 08310-12083-000 |
NUT M8X125X65 |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 08322-0106B-000 |
WASHER |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 08322-0108A-000 |
WASHER |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 08322-0108B-000 |
WASHER |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 08322-11083-000 |
Washer |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 08322-21063-000 |
Washer |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 09150-06010-000 |
NUT |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 09150-06014-000 |
Nut |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 09205-03019-000 |
PIN,SPRING(3X10) - Pin, tilt lock |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 09209-13018-000 |
PIN(13X18) |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 09241-26002-000 |
PLUG |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 09284-16003-000 |
SEAL,OIL(16X26X7) |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 09300-16007-000 |
BUSH(16X26X17) |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 09440-08026-000 |
SPRING |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 09448-22005-000 |
SPRING |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 22100-60A01-000 |
COVER ASSY,CLUTCH |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 22400-60A04-000 |
DISC CLUTCH |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 22400-60AV0-000 |
DISC,CLUTCH |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 23260-60A00-000 |
SHAFT,CLUTCH RELEASE |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 23265-70C00-000 |
BEARING,CLUTCH RELEASE |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 23266-60A00-000 |
ARM,CLUTCH RELEASE |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 23269-60A00-000 |
SPRING,CLUTCH RELEASE RETURN |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 23710-60A00-000 |
ケーブルアッシ,クラッチ |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 23710-60A01-000 |
CABLE ASSY,CLUTCH |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 23911-60A01-000 |
BRACKET,CLUTCH CABLE |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
| 23915-60A10-000 |
クランプ,クラッチケーブル |
mt - clutch (5MT; 1988-05-01~1990-07-01) |
