Search › Model › TA01V
TA01V

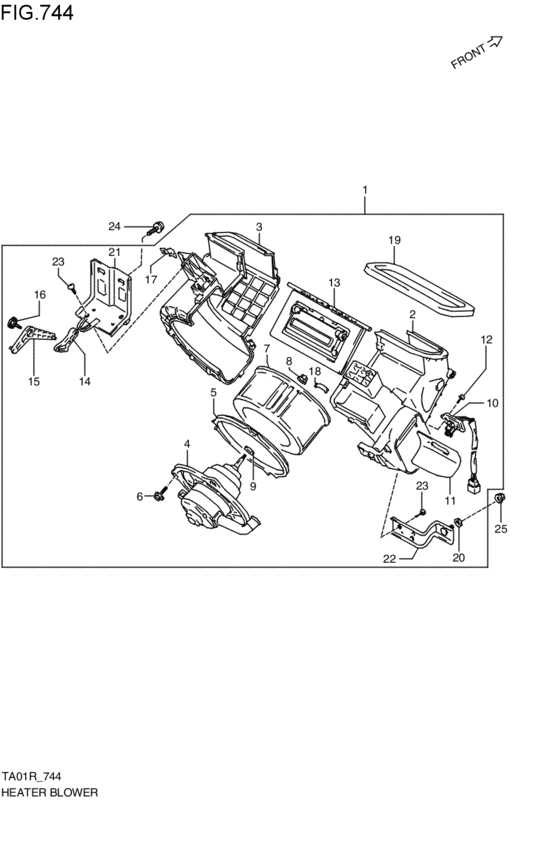

heater bloy (1988-05-01~1990-07-01) 38
| OEM | Part name | Category |
|---|---|---|
| 01517-06123-000 | Bolt | heater bloy (1988-05-01~1990-07-01) |
| 01550-0612A-000 | Bolt | heater bloy (1988-05-01~1990-07-01) |
| 01550-0612B-000 | Bolt - Bolt, clamp | heater bloy (1988-05-01~1990-07-01) |
| 03111-0412A-000 | SCREW | heater bloy (1988-05-01~1990-07-01) |
| 03112-04129-000 | Screw | heater bloy (1988-05-01~1990-07-01) |
| 03511-05163-000 | Screw | heater bloy (1988-05-01~1990-07-01) |
| 03511-0516A-000 | SCREW | heater bloy (1988-05-01~1990-07-01) |
| 08316-2005A-000 | NUT | heater bloy (1988-05-01~1990-07-01) |
| 08316-2008A-000 | NUT | heater bloy (1988-05-01~1990-07-01) |
| 08316-26058-000 | Nut 5mm | heater bloy (1988-05-01~1990-07-01) |
| 08316-26083-000 | Nut | heater bloy (1988-05-01~1990-07-01) |
| 17112-82000-000 | WASHER,FAN | heater bloy (1988-05-01~1990-07-01) |
| 74116-60A00-000 | PACKIN | heater bloy (1988-05-01~1990-07-01) |
| 74131-82000-000 | ワッシャ,ファン | heater bloy (1988-05-01~1990-07-01) |
| 74133-82000-000 | CLAMP,CASE | heater bloy (1988-05-01~1990-07-01) |
| 74135-82000-000 | SCREW,MOTOR | heater bloy (1988-05-01~1990-07-01) |
| 74151-70D01-000 | CLAMP,CONTROL WIRE | heater bloy (1988-05-01~1990-07-01) |
| 74151-85000-000 | CLAMP,LOCK | heater bloy (1988-05-01~1990-07-01) |
| 74163-84101-000 | PACKING | heater bloy (1988-05-01~1990-07-01) |
| 74183-82005-000 | SCREW,LINK | heater bloy (1988-05-01~1990-07-01) |
| 74200-60A00-000 | ブロワアッシ | heater bloy (1988-05-01~1990-07-01) |
| 74200-60A01-000 | BLOWER ASSY | heater bloy (1988-05-01~1990-07-01) |
| 74211-60A00-000 | Case,blower | heater bloy (1988-05-01~1990-07-01) |
| 74212-60A00-000 | ケース,ブロア | heater bloy (1988-05-01~1990-07-01) |
| 74212-60A01-000 | CASE,BLOWER | heater bloy (1988-05-01~1990-07-01) |
| 74215-60A00-000 | PLATE,COVER | heater bloy (1988-05-01~1990-07-01) |
| 74221-60A00-000 | ブラケット,カバー | heater bloy (1988-05-01~1990-07-01) |
| 74222-60A00-000 | BRACKET,CASE | heater bloy (1988-05-01~1990-07-01) |
| 74231-60A10-000 | FAN,BLOWER | heater bloy (1988-05-01~1990-07-01) |
| 74250-60A00-000 | MOTOR ASSY | heater bloy (1988-05-01~1990-07-01) |
| 74261-60A10-000 | PACKING | heater bloy (1988-05-01~1990-07-01) |
| 74262-60A00-000 | パッキン | heater bloy (1988-05-01~1990-07-01) |
| 74271-60A00-000 | DAMPER ASSY | heater bloy (1988-05-01~1990-07-01) |
| 74281-60A00-000 | PLATE | heater bloy (1988-05-01~1990-07-01) |
| 74282-60A00-000 | LEVER,CONT | heater bloy (1988-05-01~1990-07-01) |
| 74290-60A00-000 | レジスタ,ブロワ | heater bloy (1988-05-01~1990-07-01) |
| 74290-60A01-000 | RESISTOR,BLOWER | heater bloy (1988-05-01~1990-07-01) |
| 74296-60A00-000 | スクリュ | heater bloy (1988-05-01~1990-07-01) |
