| 01517-08203-000 |
BOLT |

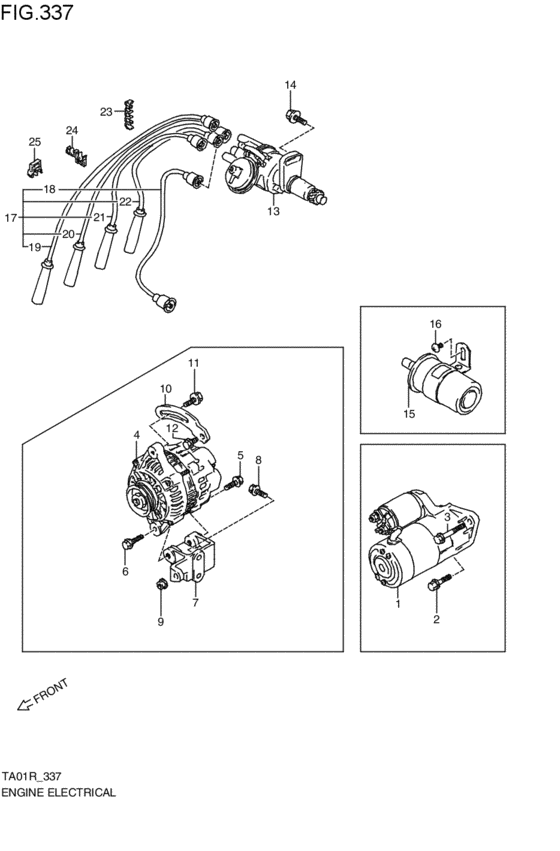

engine electrical (1988-05-01~1990-07-01) |
| 01517-08253-000 |
ボルト |
engine electrical (1988-05-01~1990-07-01) |
| 01517-08303-000 |
BOLT |
engine electrical (1988-05-01~1990-07-01) |
| 01517-08353-000 |
Bolt |
engine electrical (1988-05-01~1990-07-01) |
| 01517-08356-000 |
Bolt, front |
engine electrical (1988-05-01~1990-07-01) |
| 01517-08506-000 |
Bolt 8x50 |
engine electrical (1988-05-01~1990-07-01) |
| 01550-0820A-000 |
Bolt - Bolt, funnel bracket |
engine electrical (1988-05-01~1990-07-01) |
| 01550-0820B-000 |
Bolt |
engine electrical (1988-05-01~1990-07-01) |
| 01550-0825A-000 |
Bolt |
engine electrical (1988-05-01~1990-07-01) |
| 01550-0825B-000 |
Bolt |
engine electrical (1988-05-01~1990-07-01) |
| 01550-0830A-000 |
Bolt - Bolt, mount oil seal cover |
engine electrical (1988-05-01~1990-07-01) |
| 01550-0830B-000 |
Bolt |
engine electrical (1988-05-01~1990-07-01) |
| 01550-0835A-000 |
Bolt |
engine electrical (1988-05-01~1990-07-01) |
| 01550-0835B-000 |
Bolt |
engine electrical (1988-05-01~1990-07-01) |
| 01550-0850B-000 |
Bolt |
engine electrical (1988-05-01~1990-07-01) |
| 02142-06103-000 |
Screw |
engine electrical (1988-05-01~1990-07-01) |
| 02142-0610A-000 |
SCREW |
engine electrical (1988-05-01~1990-07-01) |
| 02142-0610B-000 |
SCREW - Stopper, cl rlse cam shaft |
engine electrical (1988-05-01~1990-07-01) |
| 08316-1008B-000 |
NUT |
engine electrical (1988-05-01~1990-07-01) |
| 08316-16083-000 |
Nut |
engine electrical (1988-05-01~1990-07-01) |
| 09118-08107-000 |
BOLT(8X25) |
engine electrical (1988-05-01~1990-07-01) |
| 09118-08110-000 |
ボルト,8X30 |
engine electrical (1988-05-01~1990-07-01) |
| 09138-08003-000 |
SCREW(8X30) |
engine electrical (1988-05-01~1990-07-01) |
| 09408-00116-000 |
CLIP |
engine electrical (1988-05-01~1990-07-01) |
| 17911-86500-000 |
BRACKET,GENERATOR |
engine electrical (1988-05-01~1990-07-01) |
| 17921-60A00-000 |
ARM,GENERATOR ADJUST |
engine electrical (1988-05-01~1990-07-01) |
| 31100-60A12-REM |
Starting motor |
engine electrical (1988-05-01~1990-07-01) |
| 31100-60A20-000 |
モータアッシ,スターティング |
engine electrical (1988-05-01~1990-07-01) |
| 31100-60A24-000 |
MOTOR ASSY,STARTING |
engine electrical (1988-05-01~1990-07-01) |
| 31400-60A10-000 |
ジェネレータアッシ |
engine electrical (1988-05-01~1990-07-01) |
| 31400-60A13-000 |
GENERATOR ASSY |
engine electrical (1988-05-01~1990-07-01) |
| 31400-60A14-000 |
Generator Assy |
engine electrical (1988-05-01~1990-07-01) |
| 33100-60A20-000 |
Distributor assy |
engine electrical (1988-05-01~1990-07-01) |
| 33410-60A10-000 |
COIL IGNITION |
engine electrical (1988-05-01~1990-07-01) |
| 33410-71C10-000 |
COIL ASSY,IGNITION |
engine electrical (1988-05-01~1990-07-01) |
| 33705-80C00-000 |
CORD SET,HIGH TENSION |
engine electrical (1988-05-01~1990-07-01) |
| 33705-83020-000 |
CORD SET HIGH TENSION |
engine electrical (1988-05-01~1990-07-01) |
| 33710-60A20-000 |
CORD,HT,NO.1 |
engine electrical (1988-05-01~1990-07-01) |
| 33730-60C30-000 |
CORD,HT NO.2 |
engine electrical (1988-05-01~1990-07-01) |
| 33730-83020-000 |
コード,ハイテンション,NO.2 |
engine electrical (1988-05-01~1990-07-01) |
| 33740-60C30-000 |
CORD,HT NO.3 |
engine electrical (1988-05-01~1990-07-01) |
| 33740-83020-000 |
コード,ハイテンション,NO.3 |
engine electrical (1988-05-01~1990-07-01) |
| 33750-80C00-000 |
CORD,HT NO.4 |
engine electrical (1988-05-01~1990-07-01) |
| 33750-83020-000 |
コード,ハイテンション,NO.4 |
engine electrical (1988-05-01~1990-07-01) |
| 33760-83020-000 |
コード,ハイテンション,NO.5 |
engine electrical (1988-05-01~1990-07-01) |
| 33760-85220-000 |
CORD,HT NO.5 |
engine electrical (1988-05-01~1990-07-01) |
| 33882-60A10-000 |
CLAMP,HT CORD |
engine electrical (1988-05-01~1990-07-01) |
| 33883-83020-000 |
クランプ,ハイテンションコード |
engine electrical (1988-05-01~1990-07-01) |
| 33884-86510-000 |
CLAMP |
engine electrical (1988-05-01~1990-07-01) |
