| 01436-01261 |
SCREW |

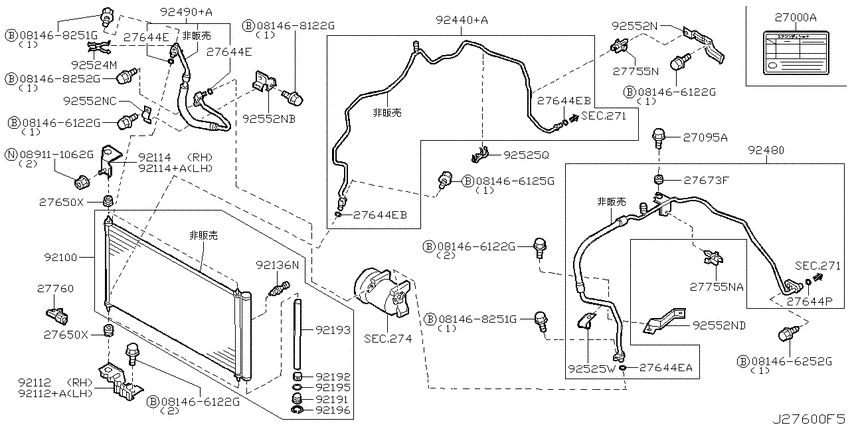

air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 08146-8122G |
Bolt-hexagon |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 08146-8252G |
Bolt-hexagon |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 24220-79912 |
Clip-Breather Hose |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 27090-79960 |
Label-Air Conditioner |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 27722-31U00 |
Sensor Assy-Ambient |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92100-8H300 |
Condenser & Liquid Tank Assy |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92100-8H310 |
Condenser & Liquid Tank Assy |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92114-4M400 |
Bracket-Condenser |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92114-4M410 |
Bracket-Condenser |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92136-6J001 |
Sensor Assy-Pressure |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92136-6J010 |
Sensor Assy-Pressure |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92440-8H600 |
Pipe-Front Cooler, High |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92440-EQ400 |
Pipe-Front Cooler, High |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92471-N8210 |
O Ring |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92480-8H600 |
Hose-Flexible, Low |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92480-EQ400 |
Hose-Flexible, Low |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92551-64Y01 |
Clip |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92552-4M401 |
Bracket-Tube Clip |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92552-4M40A |
Bracket-Tube Clip |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92552-6J000 |
Bracket-Tube Clip |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92552-8H600 |
Bracket-Tube Clip |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92553-4M400 |
Bracket-Tube Clip |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92555-8H300 |
Clip |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92557-4M400 |
Protector-Clamp Tube |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
| 92557-4M40A |
Bracket-Pipe |
air conditioner (engine room) (2000-10-01 ~ 2003-06-01; W.SR20VET) |
