SY419

Suzuki BALENO-ESTEEM · 5,006 parts · 295 categories

5,006 items

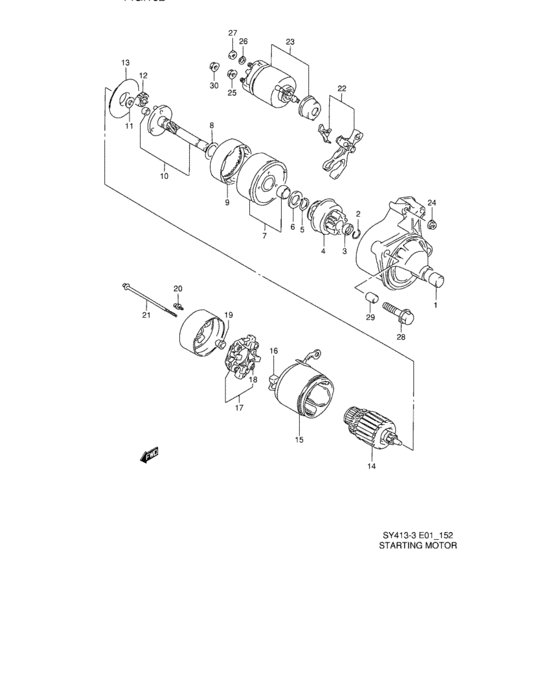

Starting motor (NAME PLATE:31100-64G0) 38

#	OEM	Part name
0	31100-64G00-000	MOTOR ASSY,STARTING
1	31152-60C40-000	BUSH
2	31312-51A10-000	RING,SNAP
3	31313-79010-000	COLLAR,PINION STOP
4	31320-60B50-000	CLUTCH,STARTER
5	31361-10200-000	RING,SNAP
6	31155-60B50-000	WASHER
7	31348-60B50-000	SHOCK ABSORBER
8	31154-60B50-000	WASHER
9	31343-60B50-000	GEAR,INTERNAL
10	31341-60B50-000	SHAFT,PLANETARY CARRIER
11	31153-60B50-000	WASHER
12	31344-60B50-000	GEAR,PLNTY
13	31349-60B50-000	PLATE
14	31311-60C40-000	ARMATURE ASSY,STARTER
15	31110-64G00-000	YOKE ASSY
16	31131-60B50-000	STARTER KIT
17	31173-60B50-000	HOLDER ASSY,BRUSH
18	31135-60B50-000	SPRING,BRUSH
19	31172-60B50-000	BEARING
20	31136-64G00-000	SCREW
21	31281-60C40-000	Bolt
22	31191-60B50-000	LEVER,STARTER DRIVE
23	31220-51A10-000	SWITCH ASSY
24	08316-10063-000	Nut
24	08316-1006B-000	NUT
25	08316-10083-000	Nut
25	08316-1008B-000	NUT
26	08321-01083-000	Lock washer
26	08321-0108B-000	WASHER,LOCK
26	08321-0108A-000	WASHER,LOCK
27	08310-00083-000	Nut
27	08310-0008B-000	NUT
27	08310-0008A-000	NUT - Nut, bead stopper
28	01550-08403-000	Bolt
28	01550-0840B-000	Bolt
28	01550-0840A-000	Bolt
29	04211-11129-000	PIN

OEM	Part name	Category
01550-08403-000	Bolt	Starting motor (NAME PLATE:31100-64G0)
01550-0840A-000	Bolt	Starting motor (NAME PLATE:31100-64G0)
01550-0840B-000	Bolt	Starting motor (NAME PLATE:31100-64G0)
04211-11129-000	PIN	Starting motor (NAME PLATE:31100-64G0)
08310-00083-000	Nut	Starting motor (NAME PLATE:31100-64G0)
08310-0008A-000	NUT - Nut, bead stopper	Starting motor (NAME PLATE:31100-64G0)
08310-0008B-000	NUT	Starting motor (NAME PLATE:31100-64G0)
08316-10063-000	Nut	Starting motor (NAME PLATE:31100-64G0)
08316-1006B-000	NUT	Starting motor (NAME PLATE:31100-64G0)
08316-10083-000	Nut	Starting motor (NAME PLATE:31100-64G0)
08316-1008B-000	NUT	Starting motor (NAME PLATE:31100-64G0)
08321-01083-000	Lock washer	Starting motor (NAME PLATE:31100-64G0)
08321-0108A-000	WASHER,LOCK	Starting motor (NAME PLATE:31100-64G0)
08321-0108B-000	WASHER,LOCK	Starting motor (NAME PLATE:31100-64G0)
31100-64G00-000	MOTOR ASSY,STARTING	Starting motor (NAME PLATE:31100-64G0)
31110-64G00-000	YOKE ASSY	Starting motor (NAME PLATE:31100-64G0)
31131-60B50-000	STARTER KIT	Starting motor (NAME PLATE:31100-64G0)
31135-60B50-000	SPRING,BRUSH	Starting motor (NAME PLATE:31100-64G0)
31136-64G00-000	SCREW	Starting motor (NAME PLATE:31100-64G0)
31152-60C40-000	BUSH	Starting motor (NAME PLATE:31100-64G0)
31153-60B50-000	WASHER	Starting motor (NAME PLATE:31100-64G0)
31154-60B50-000	WASHER	Starting motor (NAME PLATE:31100-64G0)
31155-60B50-000	WASHER	Starting motor (NAME PLATE:31100-64G0)
31172-60B50-000	BEARING	Starting motor (NAME PLATE:31100-64G0)
31173-60B50-000	HOLDER ASSY,BRUSH	Starting motor (NAME PLATE:31100-64G0)
31191-60B50-000	LEVER,STARTER DRIVE	Starting motor (NAME PLATE:31100-64G0)
31220-51A10-000	SWITCH ASSY	Starting motor (NAME PLATE:31100-64G0)
31281-60C40-000	Bolt	Starting motor (NAME PLATE:31100-64G0)
31311-60C40-000	ARMATURE ASSY,STARTER	Starting motor (NAME PLATE:31100-64G0)
31312-51A10-000	RING,SNAP	Starting motor (NAME PLATE:31100-64G0)
31313-79010-000	COLLAR,PINION STOP	Starting motor (NAME PLATE:31100-64G0)
31320-60B50-000	CLUTCH,STARTER	Starting motor (NAME PLATE:31100-64G0)
31341-60B50-000	SHAFT,PLANETARY CARRIER	Starting motor (NAME PLATE:31100-64G0)
31343-60B50-000	GEAR,INTERNAL	Starting motor (NAME PLATE:31100-64G0)
31344-60B50-000	GEAR,PLNTY	Starting motor (NAME PLATE:31100-64G0)
31348-60B50-000	SHOCK ABSORBER	Starting motor (NAME PLATE:31100-64G0)
31349-60B50-000	PLATE	Starting motor (NAME PLATE:31100-64G0)
31361-10200-000	RING,SNAP	Starting motor (NAME PLATE:31100-64G0)

Source: Public OEM parts-catalog data
Variants: 1 / 288
Category: 295
Collected: 2026-08-01
