SY419

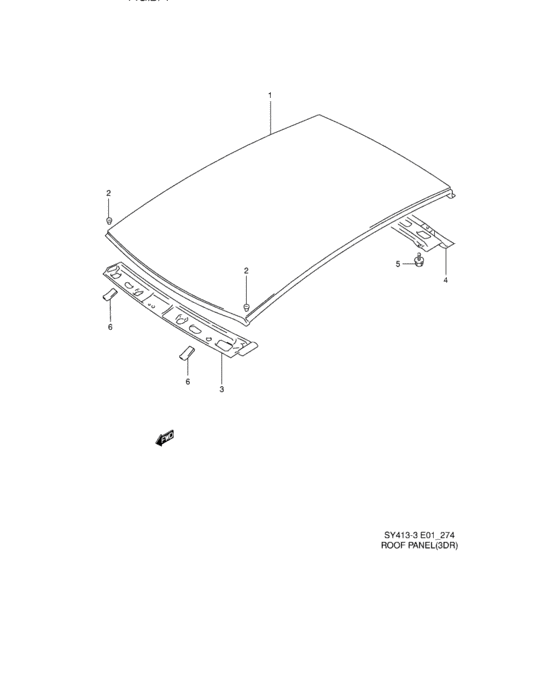

Roof panel (3DR) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 65111-61G00-000 | Panel,roof |
| 2 | 65112-84000-000 | STUD,MOLDING |
| 3 | 65121-60G00-000 | RAIL,ROOF FR INNER |
| 4 | 65130-61G00-000 | MEMBER,ROOF BACK INR |
| 5 | 02162-06123-000 | Bolt (6x12) |
| 5 | 02162-0612B-000 | SCREW - Bolt |
| 5 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 6 | 83921-82C00-000 | PAD |
| OEM | Part name | Category |
|---|---|---|
| 02162-06123-000 | Bolt (6x12) | Roof panel (3DR) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Roof panel (3DR) |
| 02162-0612B-000 | SCREW - Bolt | Roof panel (3DR) |
| 65111-61G00-000 | Panel,roof | Roof panel (3DR) |
| 65112-84000-000 | STUD,MOLDING | Roof panel (3DR) |
| 65121-60G00-000 | RAIL,ROOF FR INNER | Roof panel (3DR) |
| 65130-61G00-000 | MEMBER,ROOF BACK INR | Roof panel (3DR) |
| 83921-82C00-000 | PAD | Roof panel (3DR) |
